Inside Rearview Mirror (DD8 or UE1)

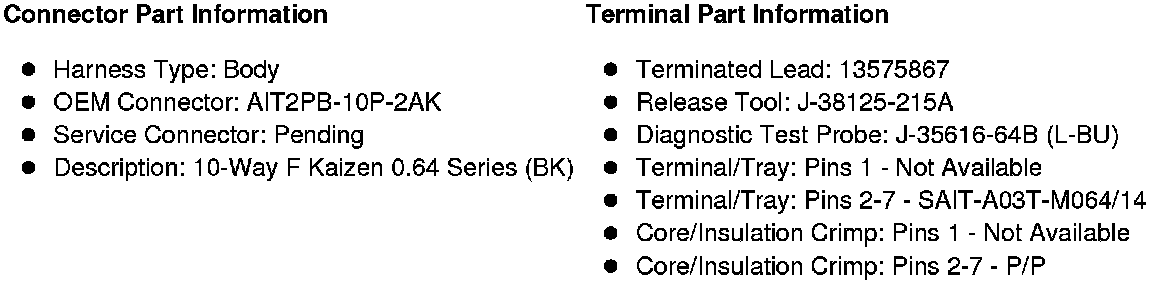

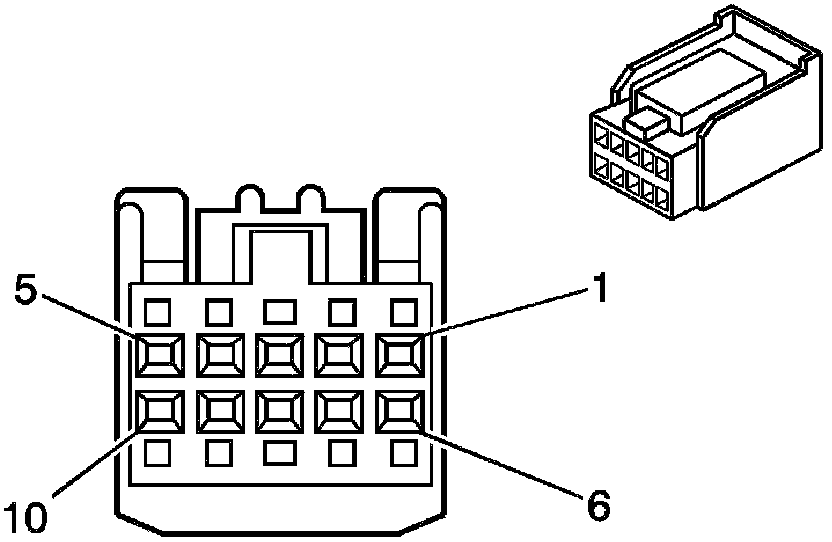

Component Connector End Views

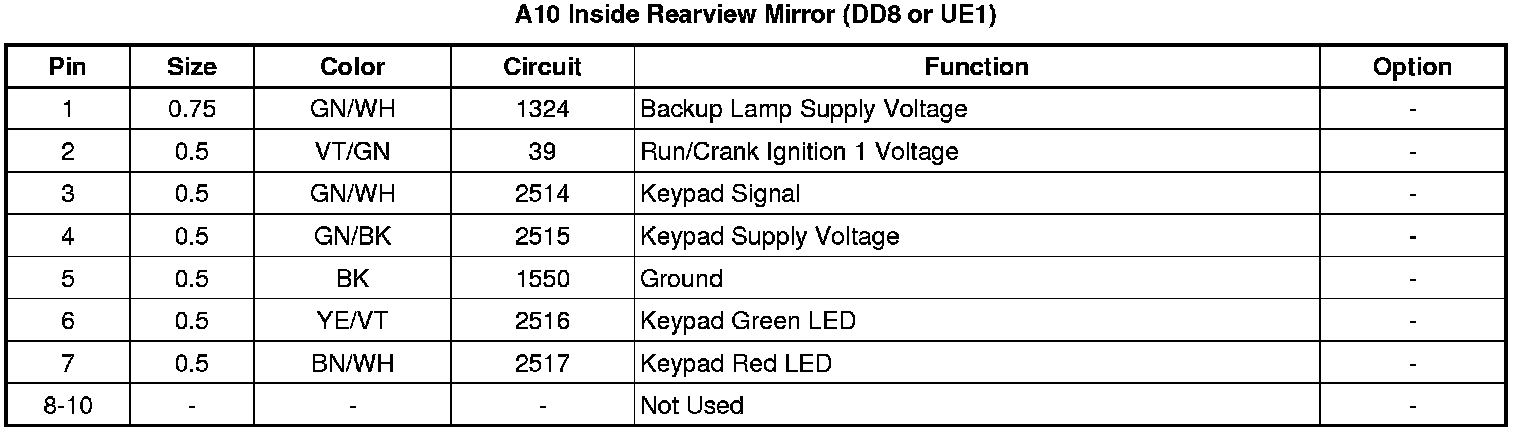

A10 Inside Rearview Mirror (DD8 or UE1)
