Door Latch Assembly - Right Rear

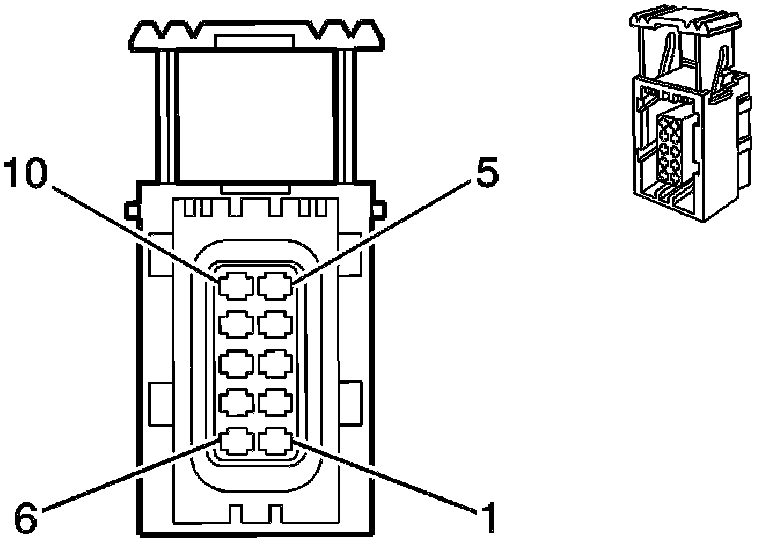

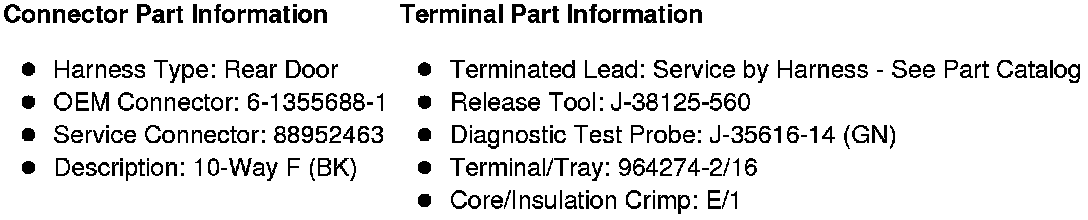

Component Connector End Views

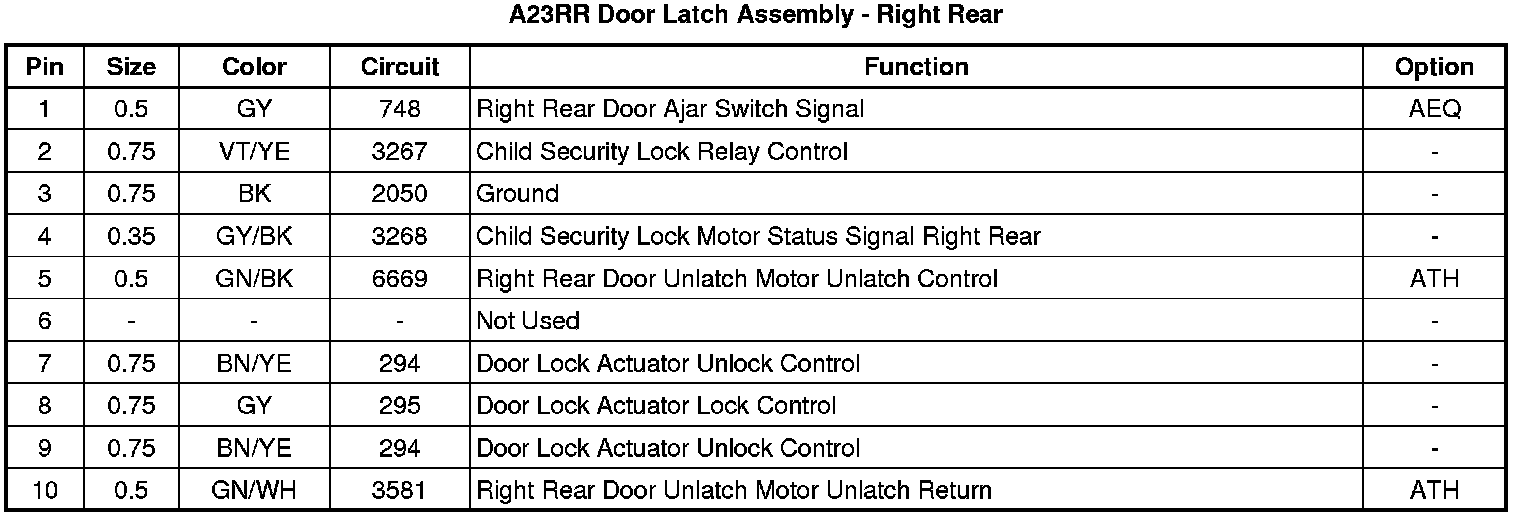

A23RR Door Latch Assembly - Right Rear
