Home
>>
Buick
>>
2013
>>
Verano L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Connector End Views By Name
>>
Door Handle Switch - Passenger Exterior (ATH)
Door Handle Switch - Passenger Exterior (ATH)
Component Connector End Views

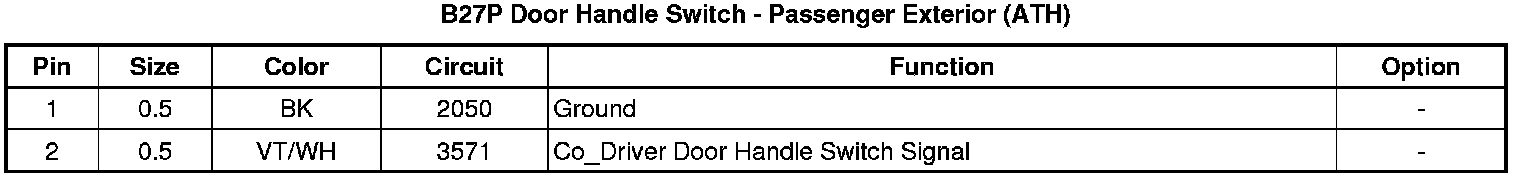

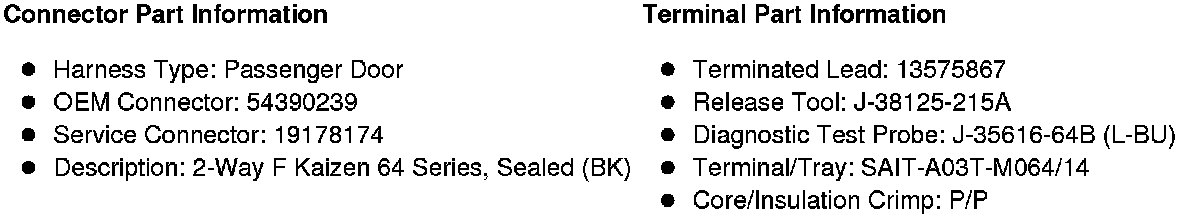

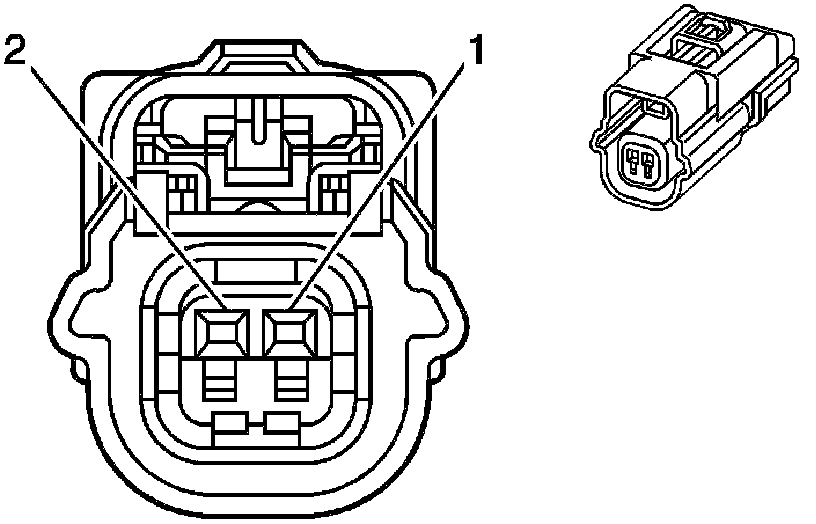

B27P Door Handle Switch - Passenger Exterior (ATH)
