Door Handle Switch - Left Rear Exterior (ATH)
Door Handle Switch - Left Rear Exterior (ATH)
Component Connector End Views

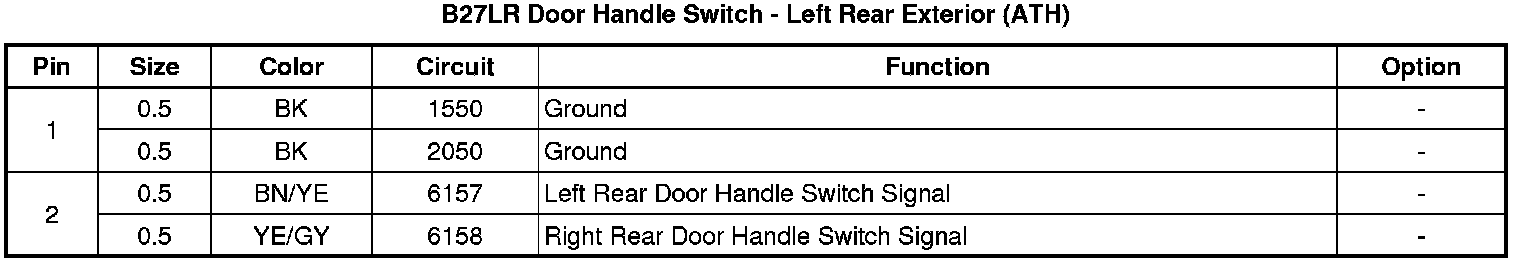

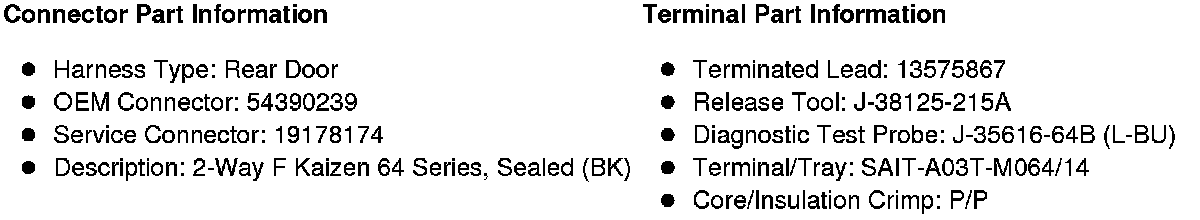

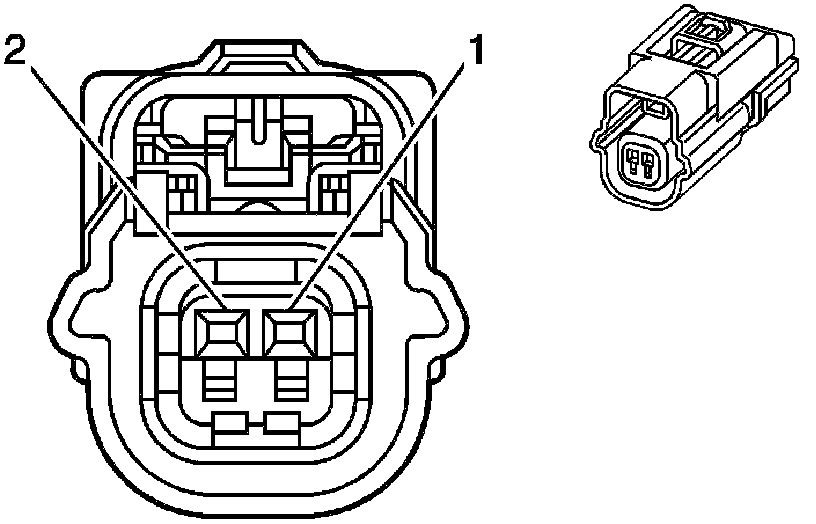

B27LR Door Handle Switch - Left Rear Exterior (ATH)
