Audio Amplifier X1 (UQA)
Audio Amplifier X1 (UQA)
Component Connector End Views

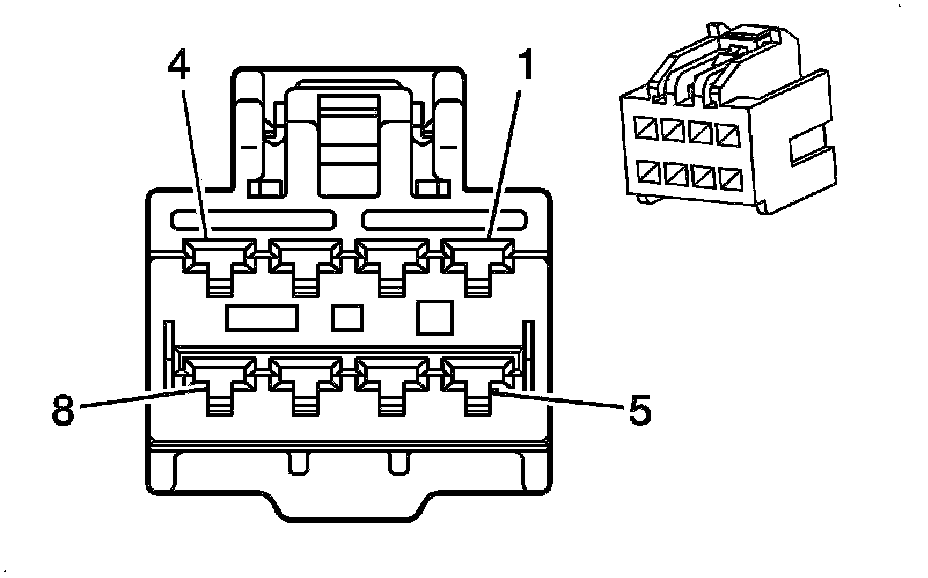

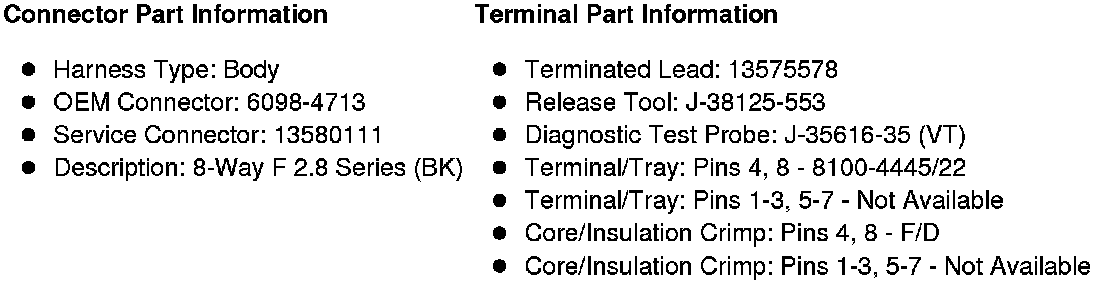

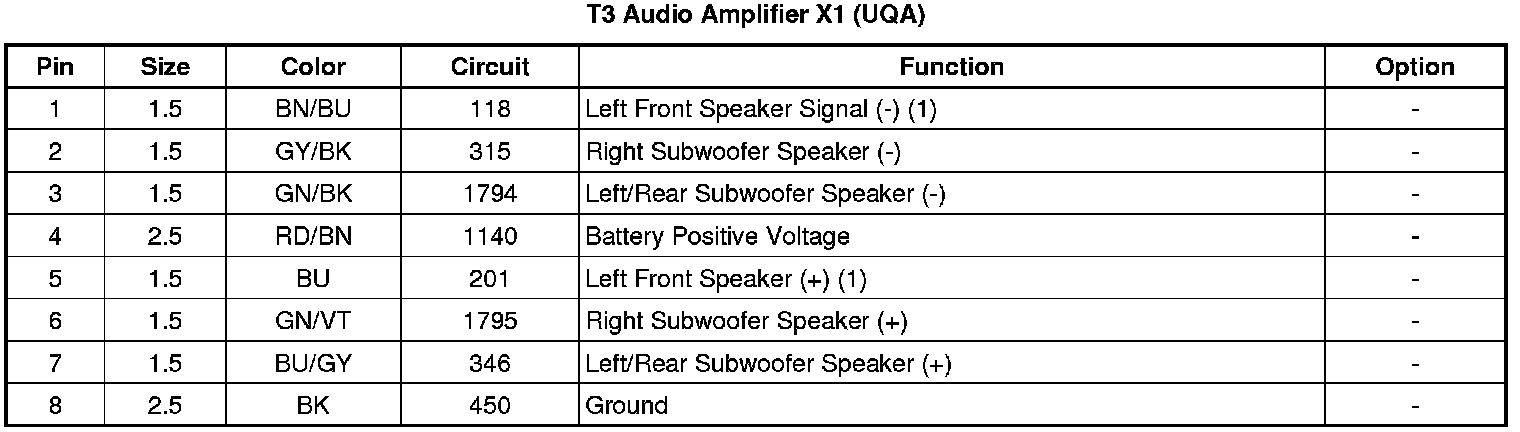

T3 Audio Amplifier X1 (UQA)
