Accent Lamp - Center Console Cupholder Right
Accent Lamp - Center Console Cupholder Right
Component Connector End Views

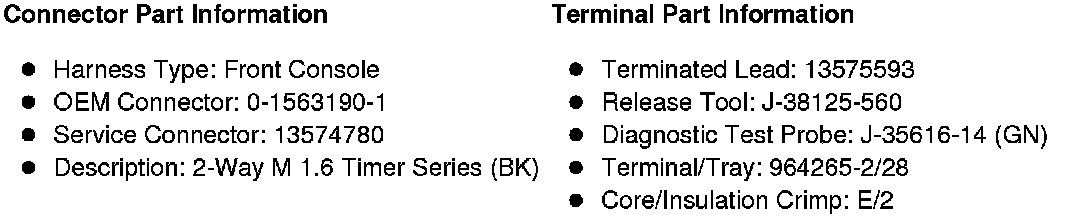

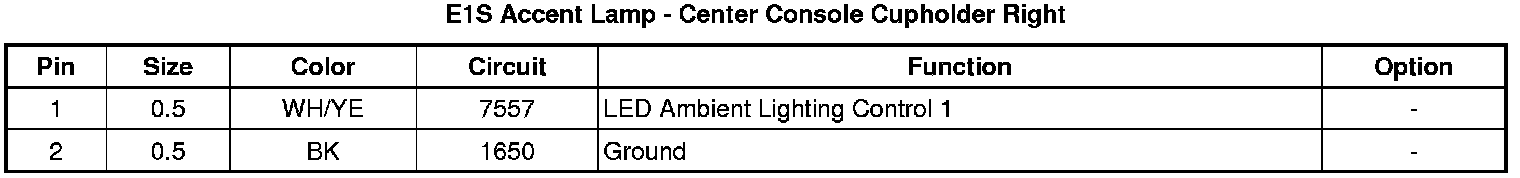

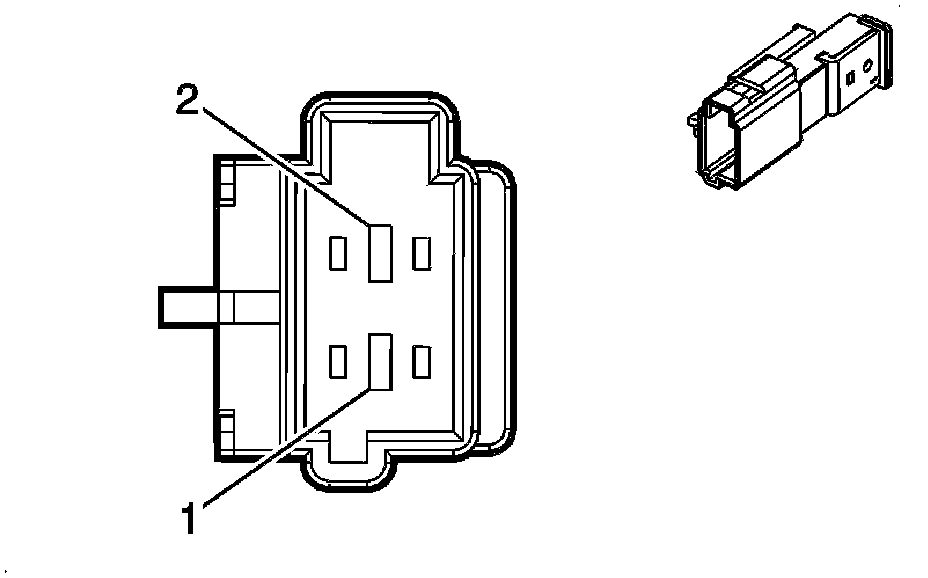

E1S Accent Lamp - Center Console Cupholder Right
