Accent Lamp - Center Console Cupholder Left
Accent Lamp - Center Console Cupholder Left
Component Connector End Views

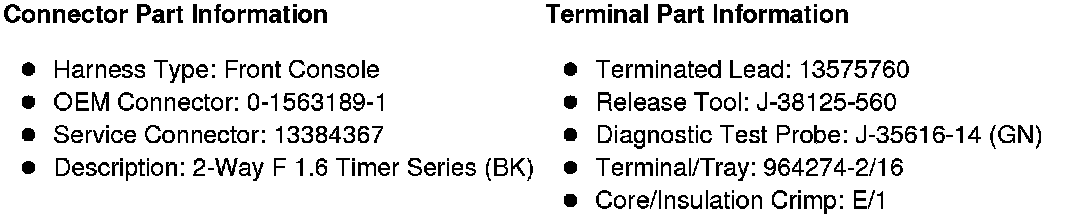

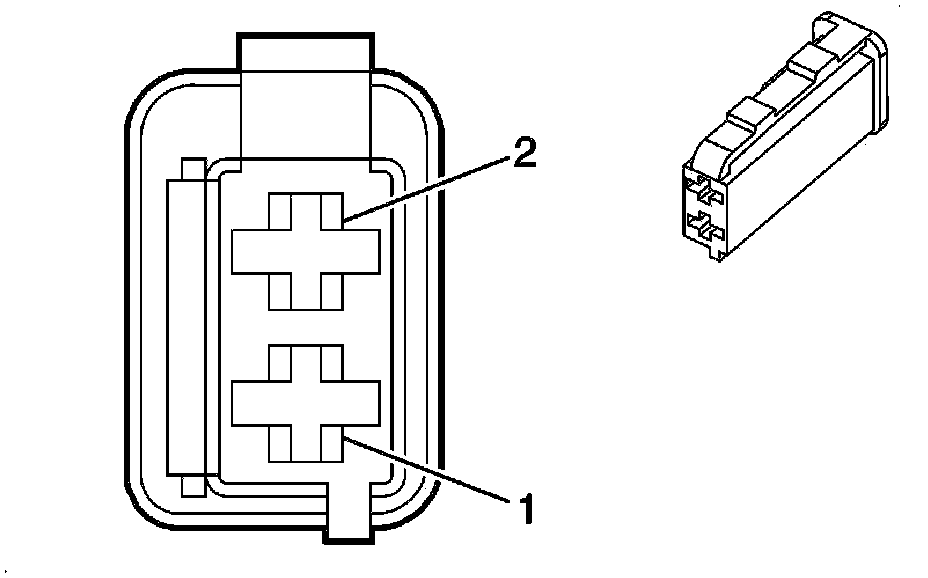

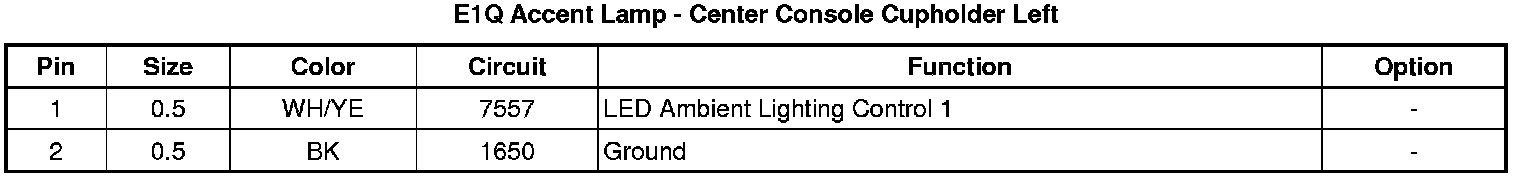

E1Q Accent Lamp - Center Console Cupholder Left
