Sunshade Mirror Lamp - Left
Sunshade Mirror Lamp - Left

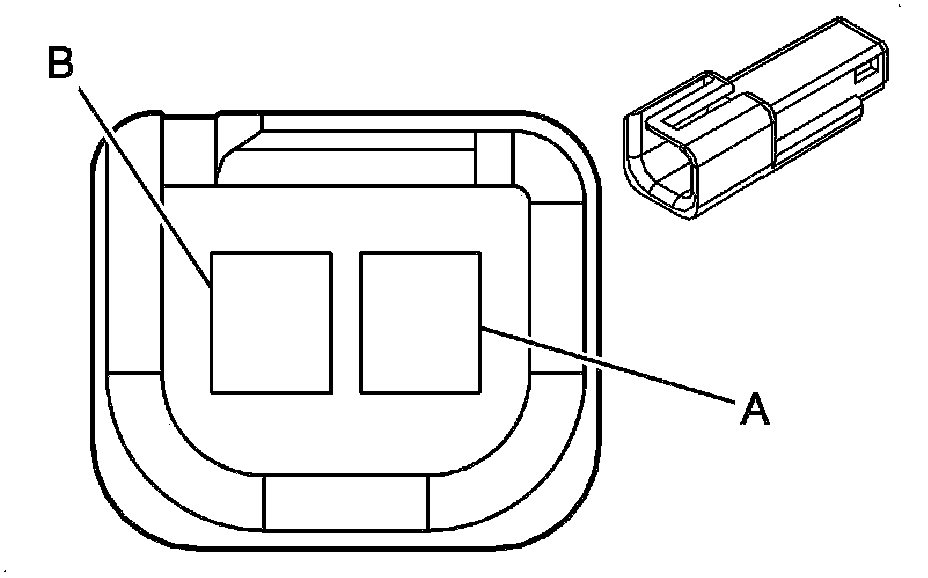

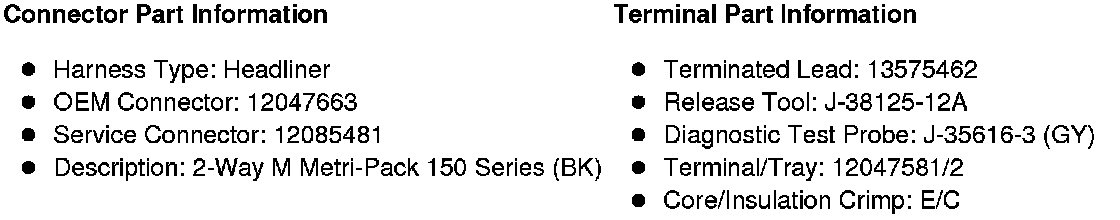

Component Connector End Views

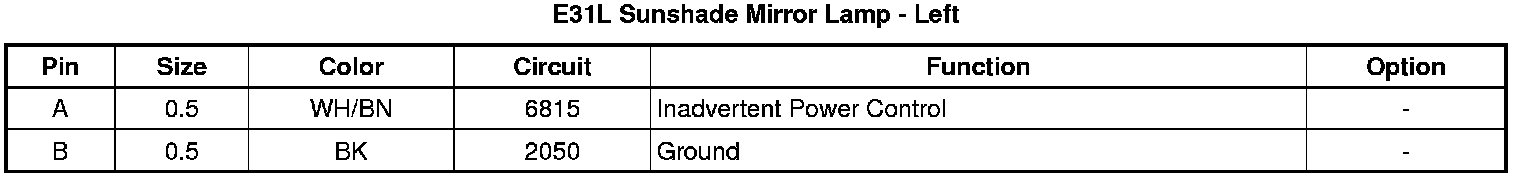

E31L Sunshade Mirror Lamp - Left
