Headlamp Bracket Replacement

Headlamp Bracket Replacement

Removal Procedure

1. Remove the headlamp. Refer to Headlamp Replacement Headlamp Replacement.

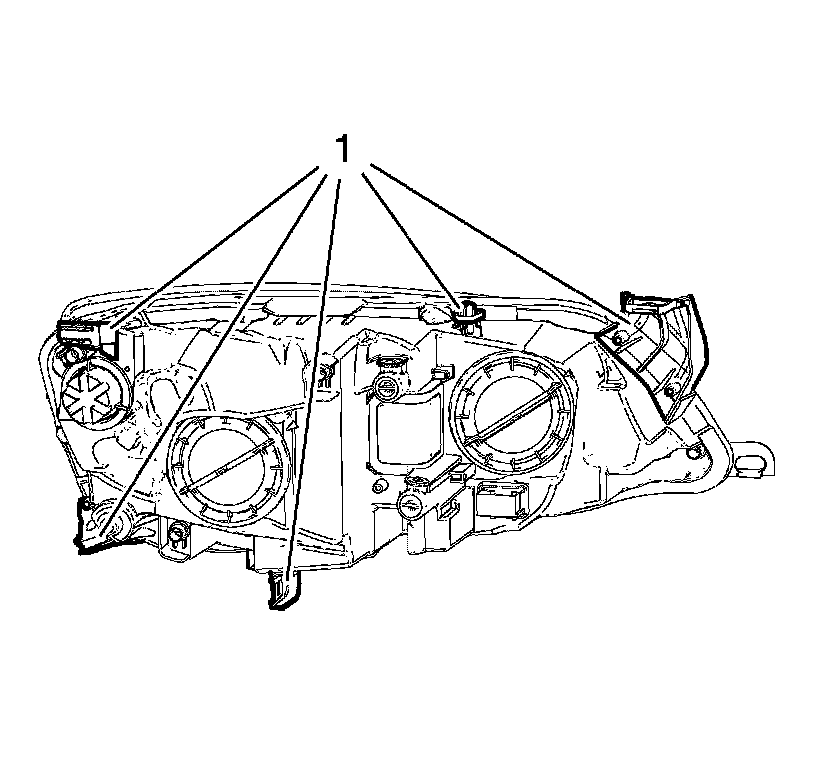

2. There are 5 replacement brackets (1) on each headlamp.

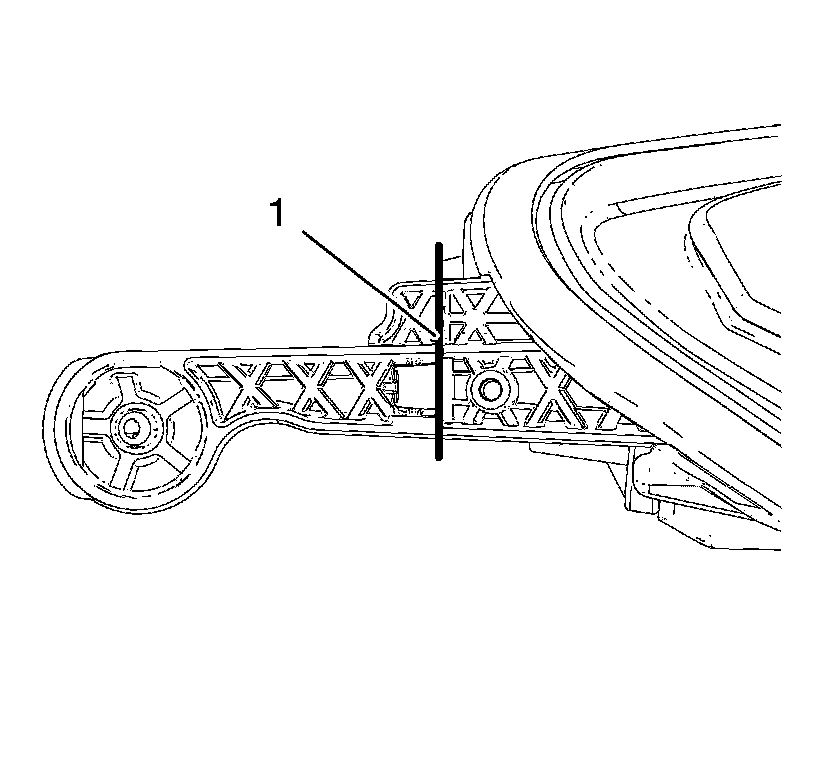

3. Bracket 1: Cut the bracket along the marked line (1) on the housing.

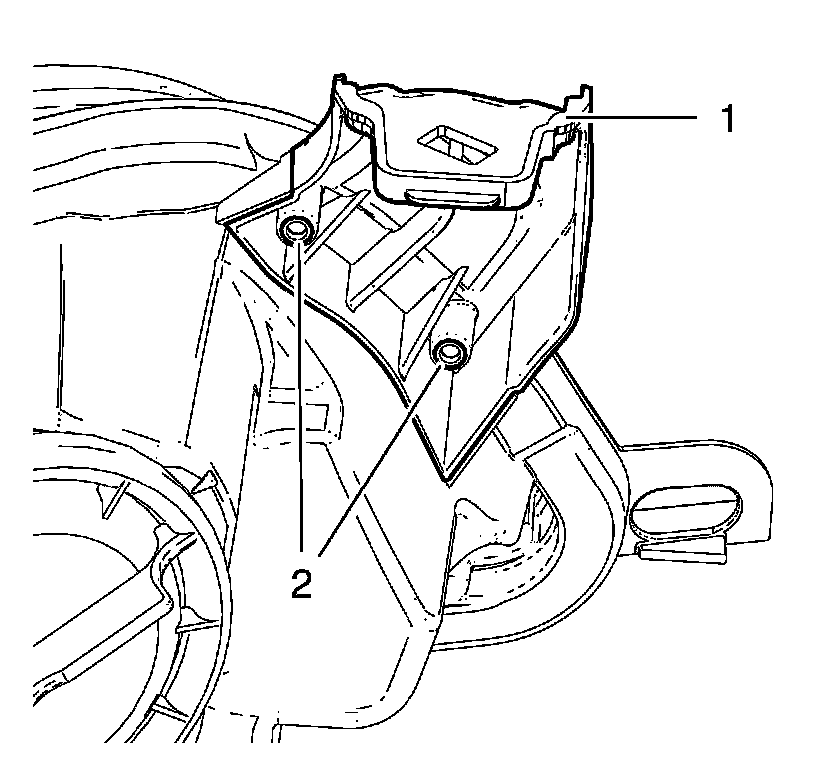

4. Bracket 2: Cut the bracket along the marked gluing channel (1).

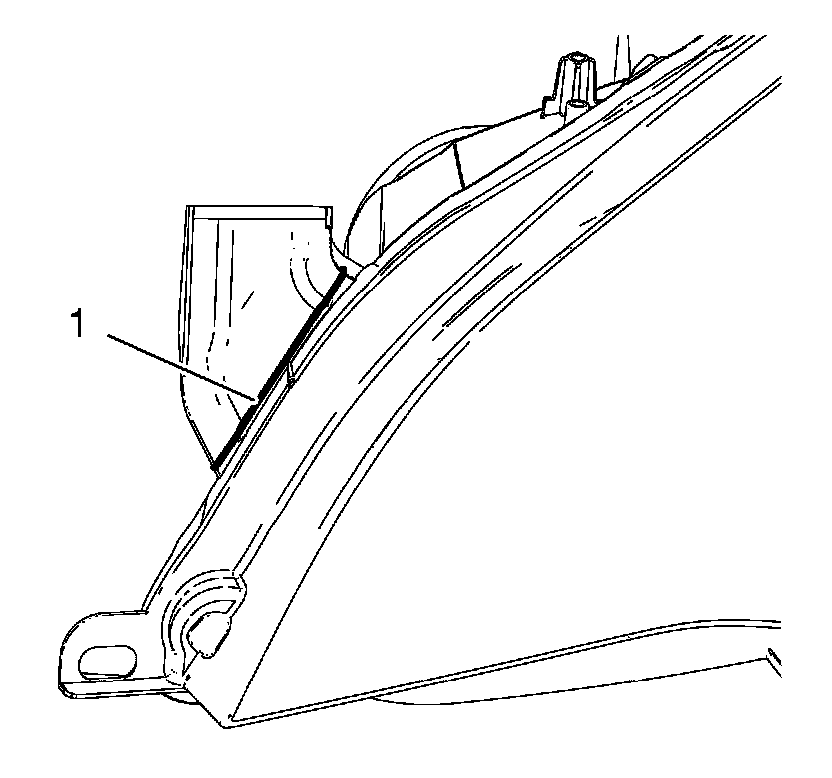

5. Bracket 3: Cut the bracket along the marked line (1) on the housing.

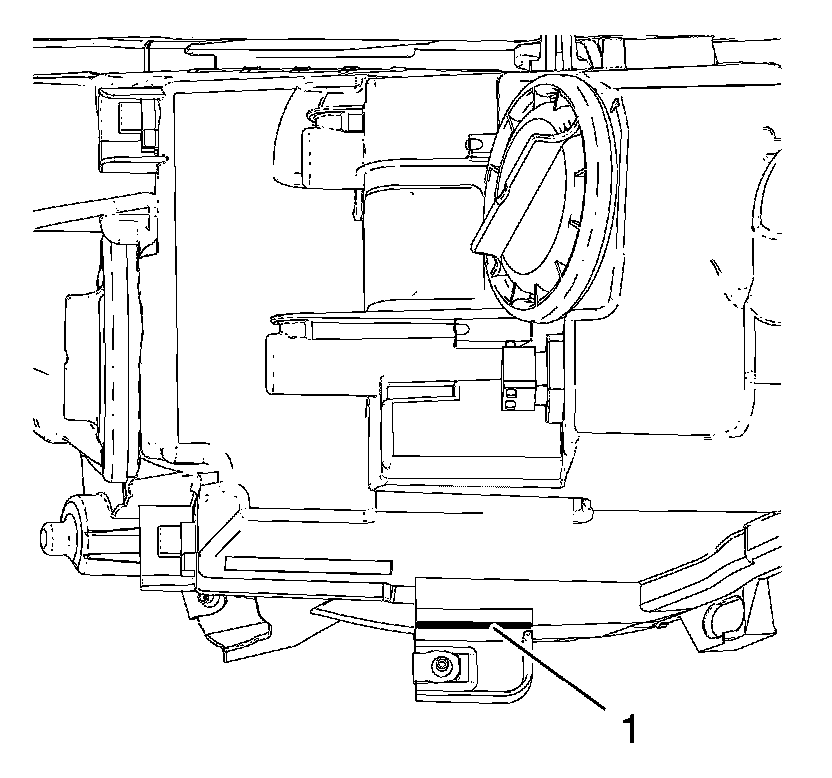

6. Bracket 4: Cut the bracket along the marked line (1).

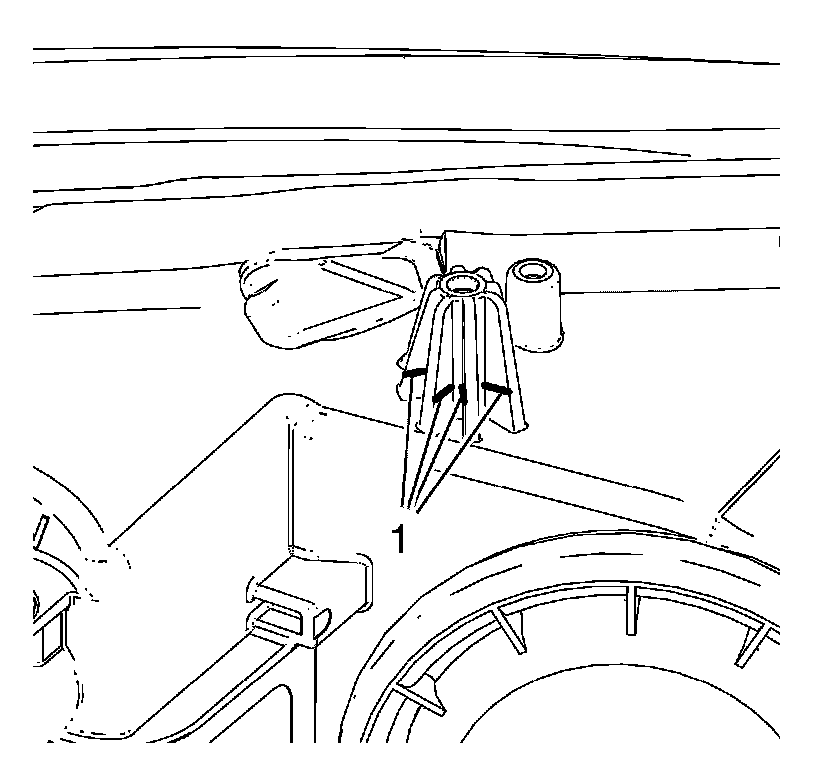

7. Bracket 5: Cut the bracket along the marked geometry (1) on the housing.

Installation Procedure

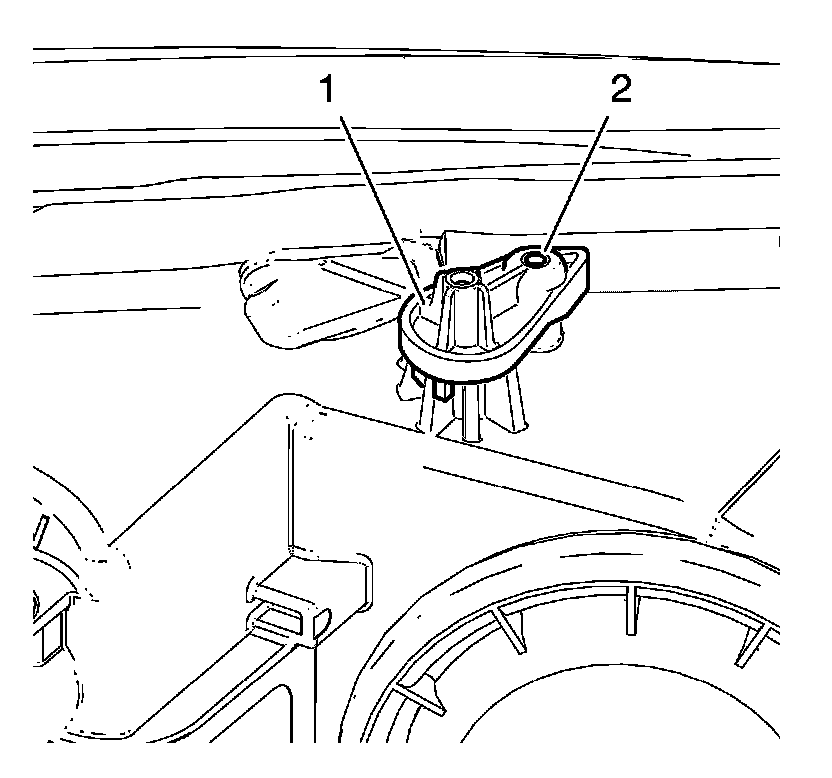

1. Bracket 5: Screw the bracket (1) on through the encircled hole (2).

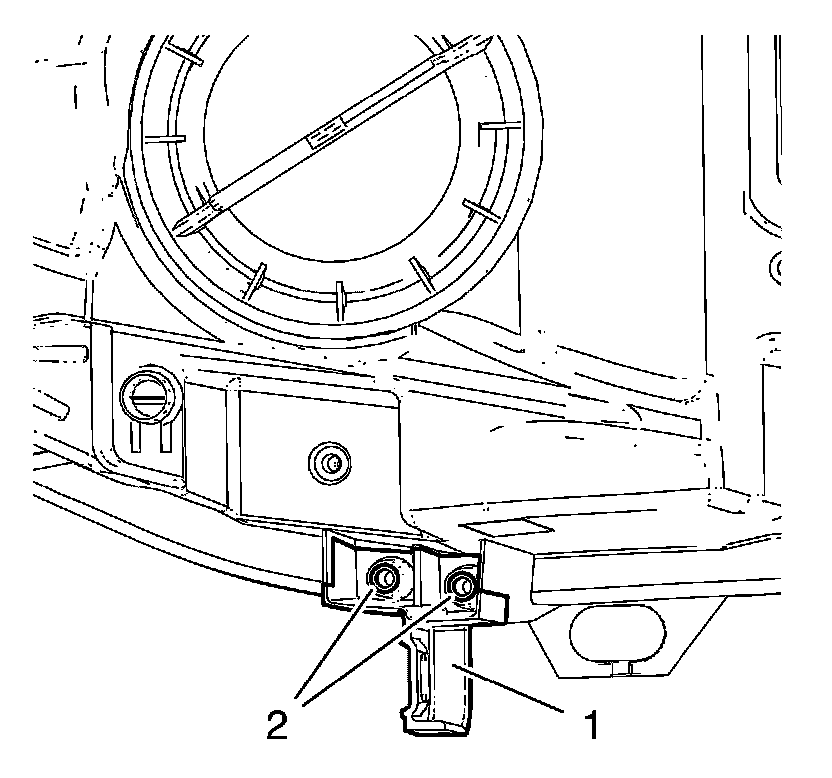

2. Bracket 4: Screw the bracket (1) on through both encircled holes (2) (one screw from each side).

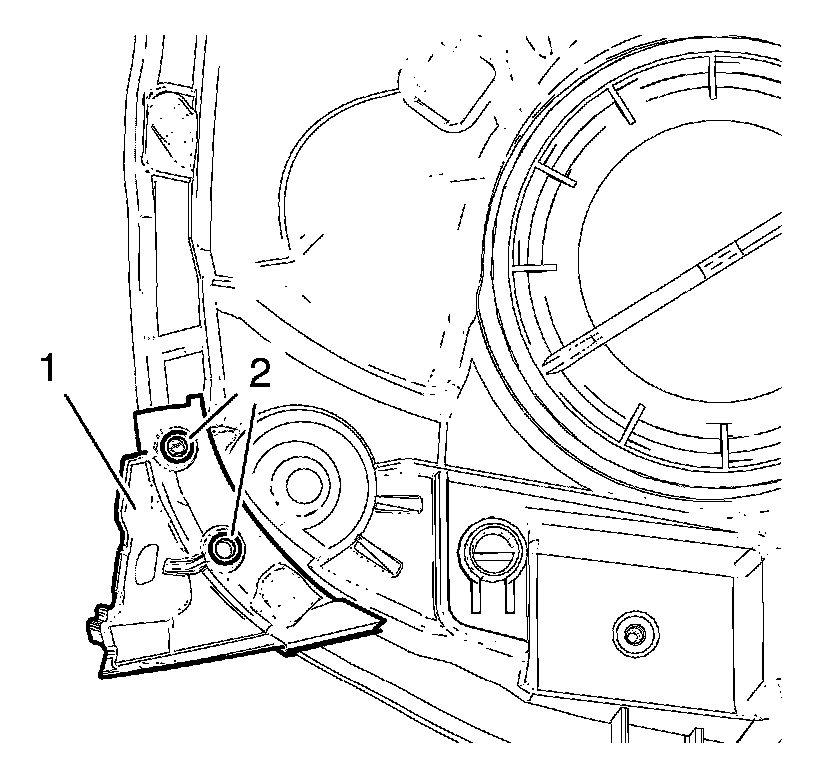

3. Bracket 3: Screw the bracket (1) on through the encircled holes (2).





4. Bracket 2: Screw the bracket (1) on through the encircled holes (2).

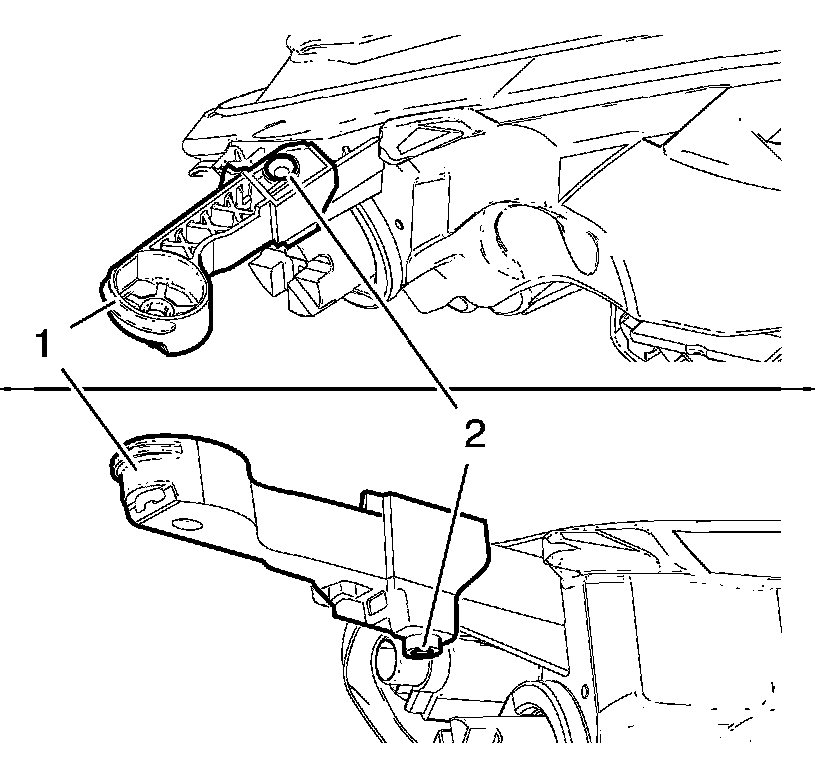

5. Bracket 1: Screw the bracket (1) on through the encircled holes (2).

6. Install the headlamp. Refer to Headlamp Replacement Headlamp Replacement.
