Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> HVAC - Manual

HVAC - Manual




HVAC Schematics

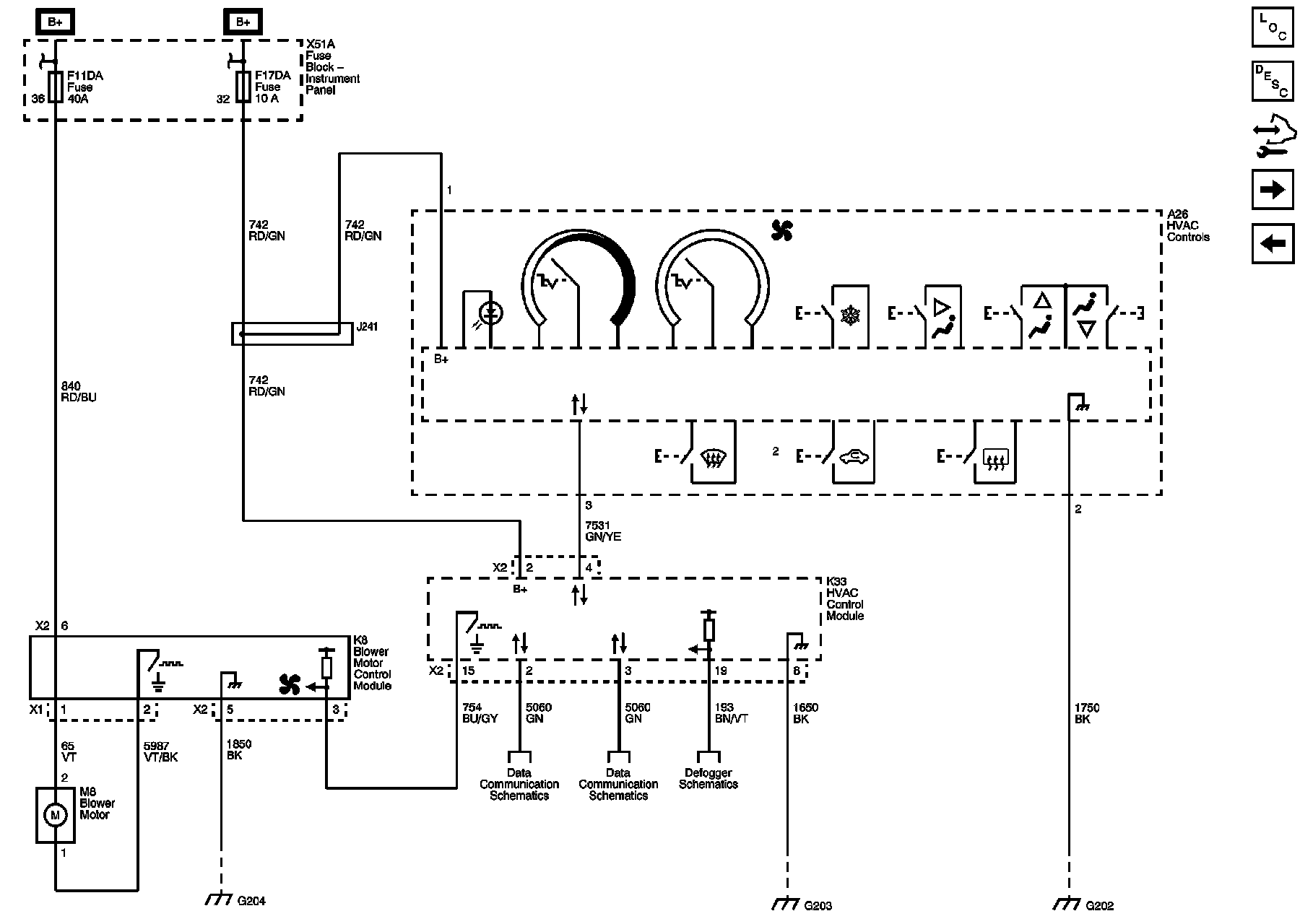

Power, Ground, Serial Data, Blower Control and HVAC Control Inputs

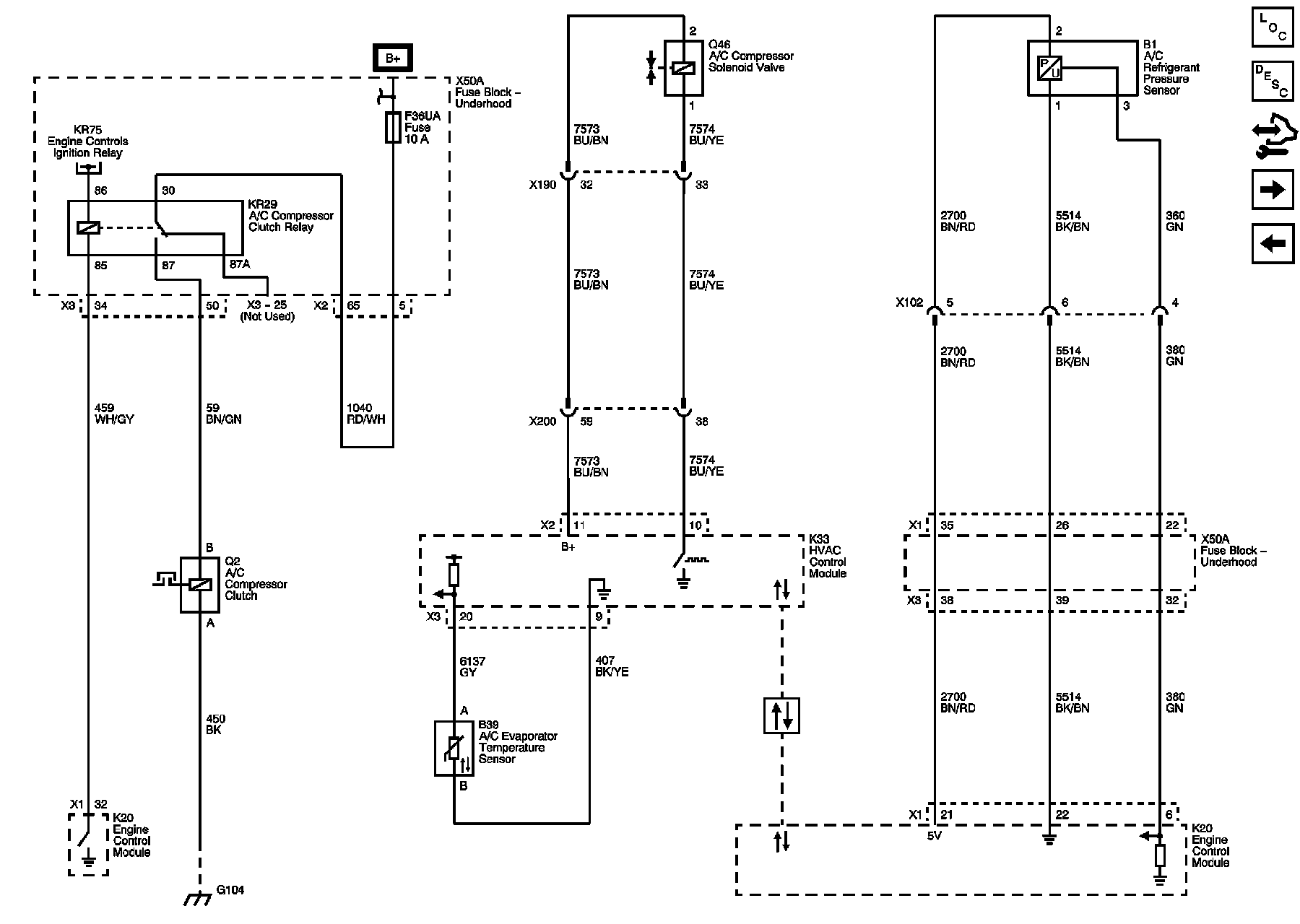

Temperature Sensor and Compressor Controls





Air Delivery and Temperature Controls
