Camshaft Position Actuator Solenoid Valve - Intake

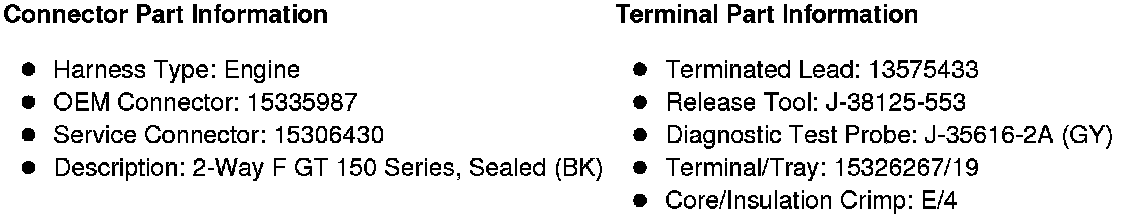

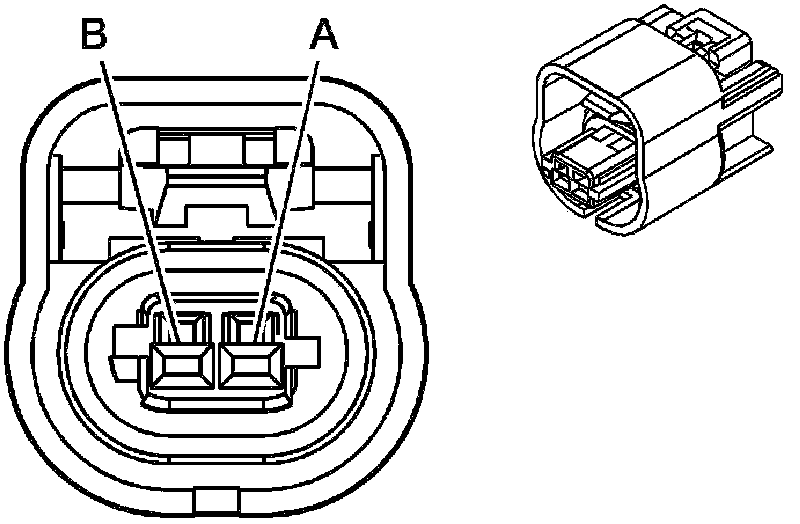

Component Connector End Views

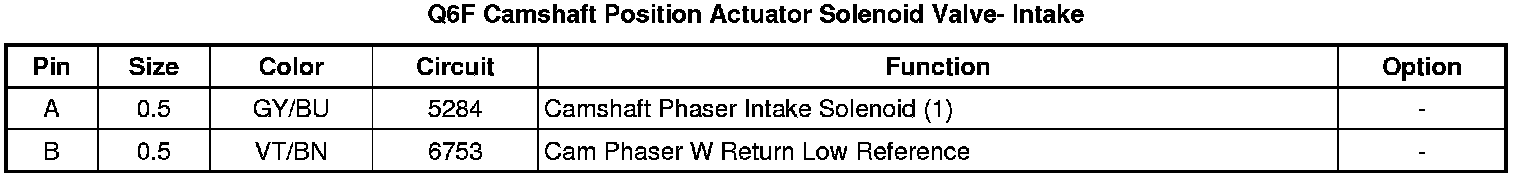

Q6F Camshaft Position Actuator Solenoid Valve- Intake
