Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Timing Components >> Balance Shaft >> Service and Repair >> Balance Shaft Sprocket Replacement - Intake Side

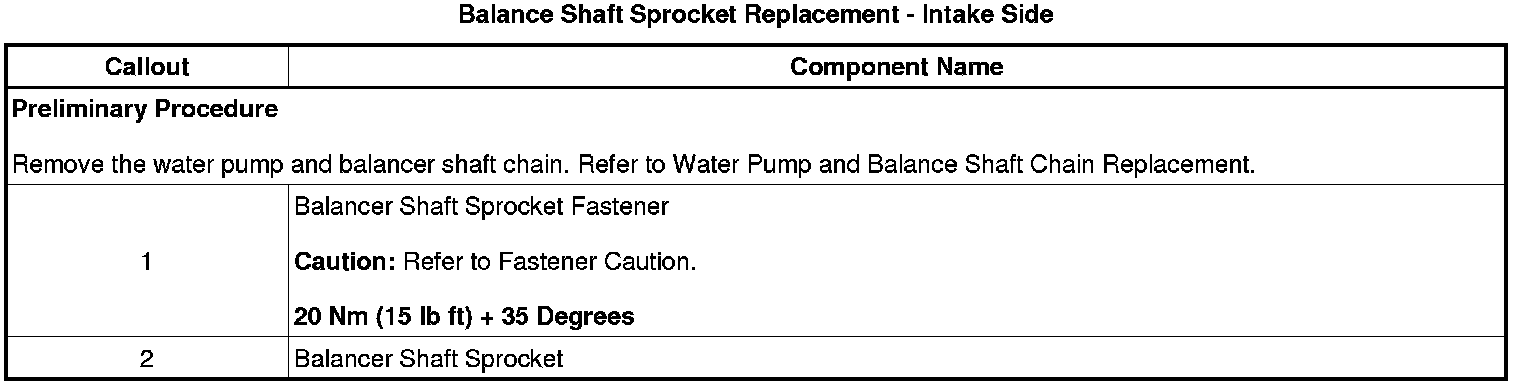

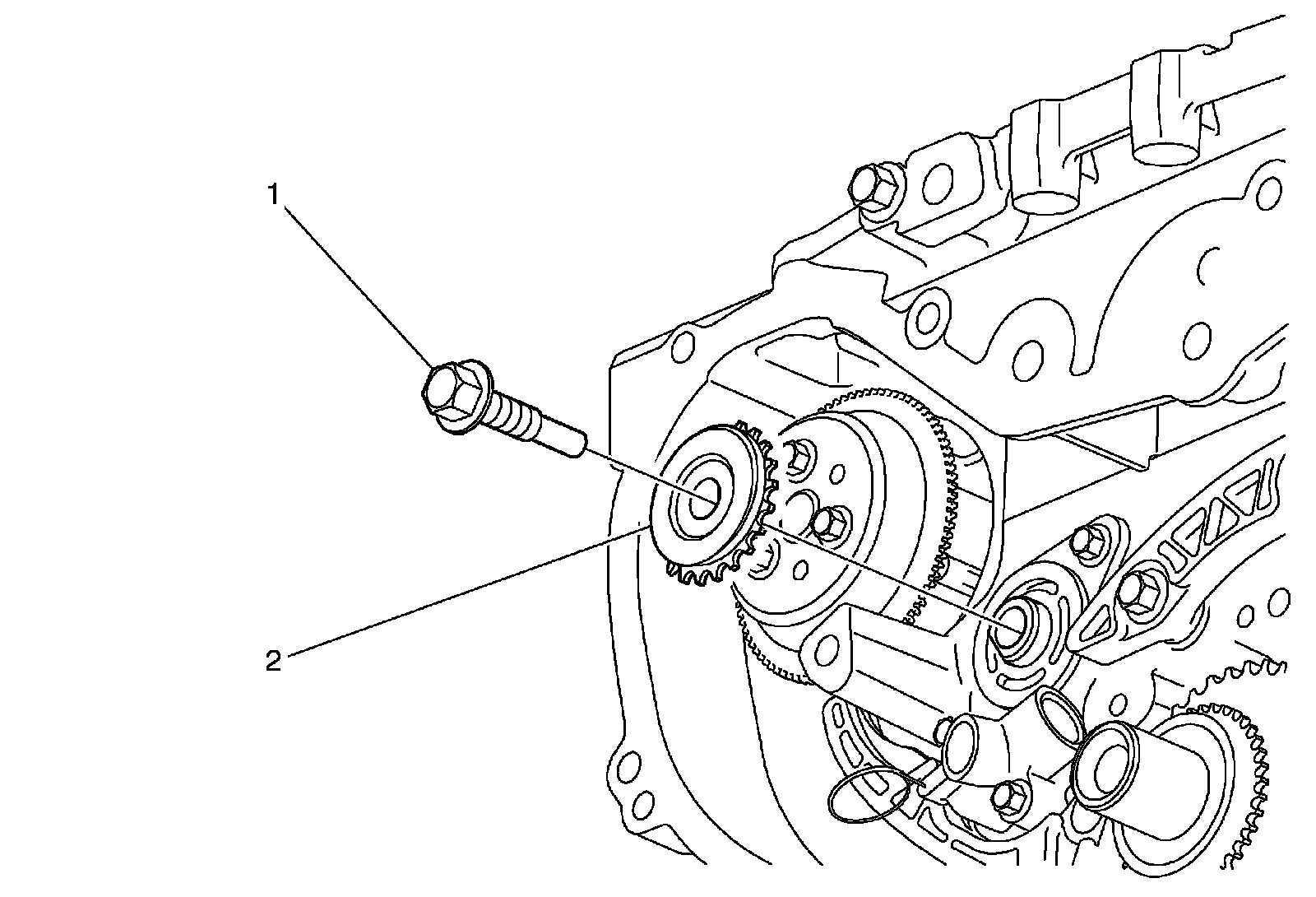

Balance Shaft Sprocket Replacement - Intake Side




Balance Shaft Sprocket Replacement - Intake Side
