Engine Flywheel Removal (Manual Transmission)

Engine Flywheel Removal (Manual Transmission)

Special Tools

EN-43653 - Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (LDK, LHU) Tools and Equipment.

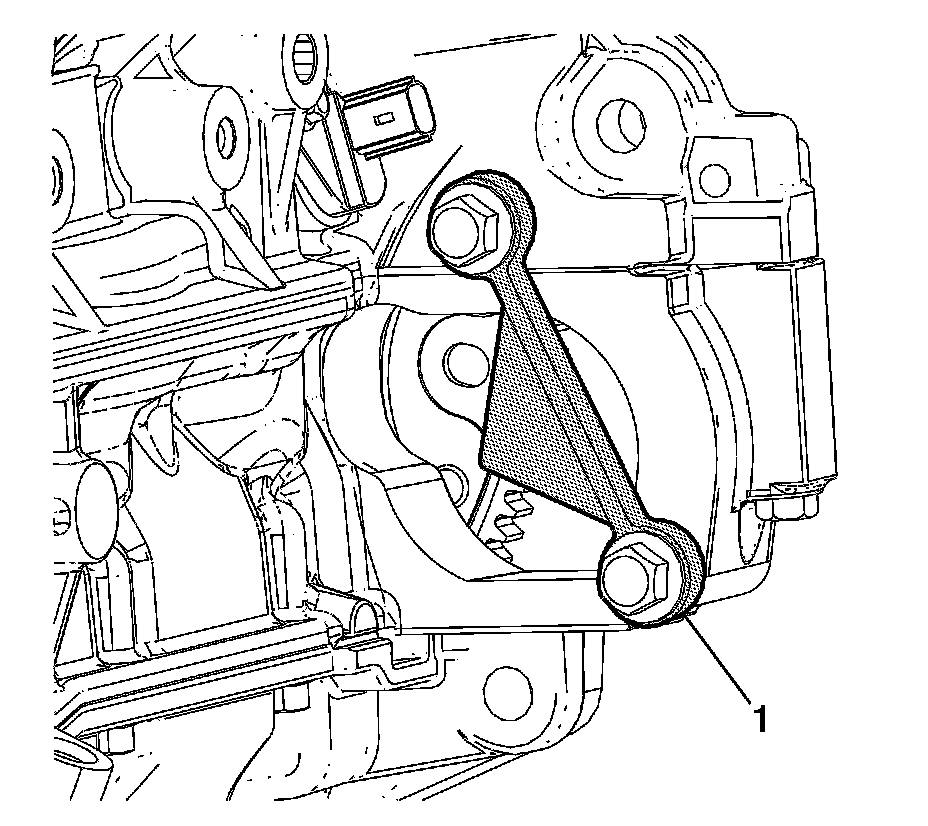

1. Install EN-43653 - flywheel holding tool (1) in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.





2. Remove the clutch pressure plate bolts and clutch pressure plate (1).





3. Remove the clutch driven plate (2).

4. Remove the flywheel attaching bolts.

5. Remove the flywheel (1).

6. Remove the pilot bearing.

7. Remove EN-43653 - flywheel holding tool.
