Engine Flywheel Installation (Manual Transmission)

Engine Flywheel Installation (Manual Transmission)

Special Tools

* EN-43653 - Flywheel Holding Tool

* EN-45059 - Angle Meter

For equivalent regional tools, refer to Special Tools (LDK, LHU) Tools and Equipment.





1. Install the clutch pilot bearing for manual transmission.

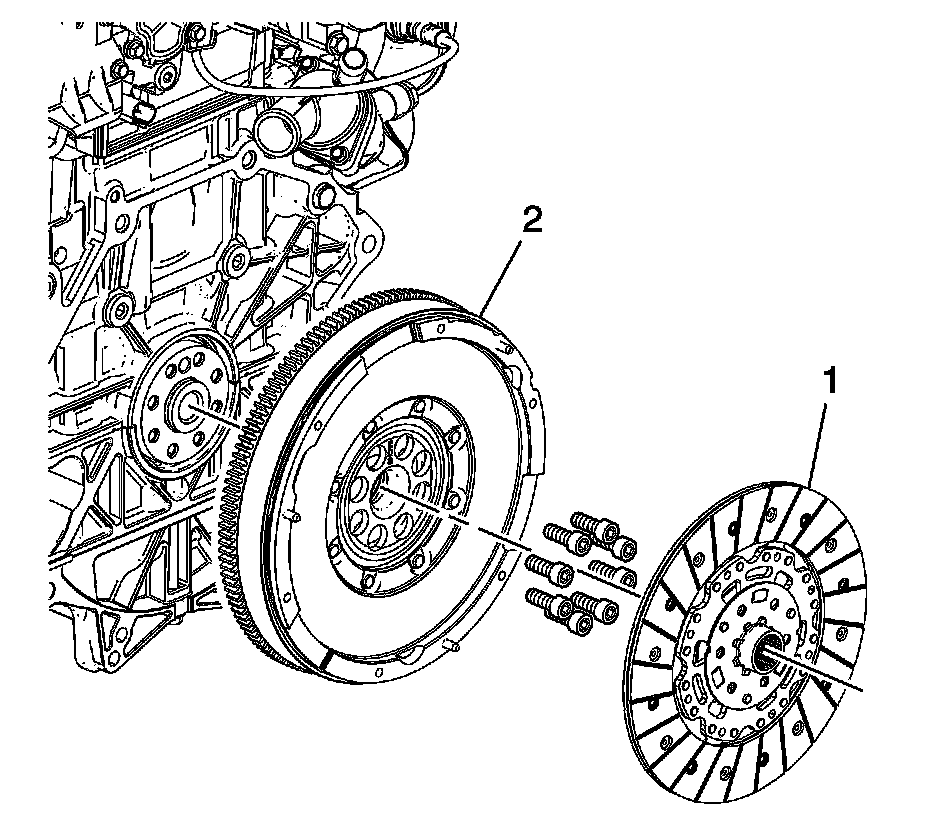

2. Install the flywheel (1).

3. Install the NEW bolts.

4. Install EN-43653 - flywheel holding tool in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

Caution:
Refer to Fastener Caution Fastener Caution.

5. Tighten the flywheel bolts to 53 Nm (39 lb ft) plus 25 degrees using the EN-45059 - angle meter.

6. Install the clutch driven plate (2).

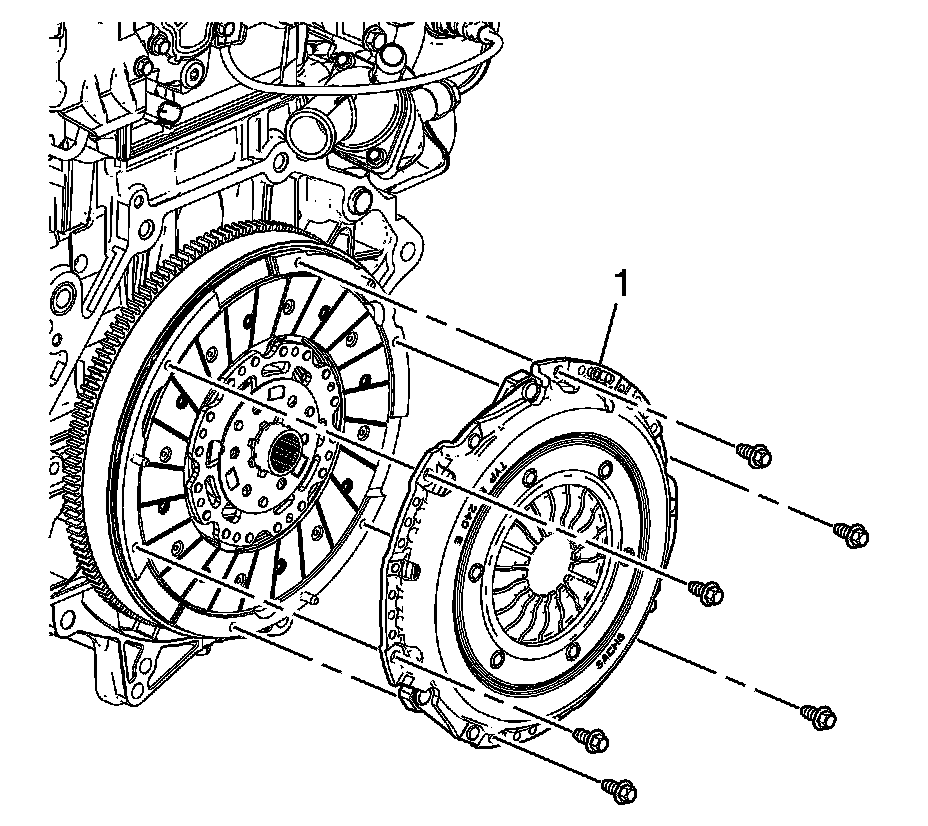

7. Install the clutch pressure plate (1) and bolts.

8. Tighten the clutch pressure plate bolts to 24 Nm (18 lb ft).

9. Remove EN-43653 - flywheel holding tool.
