Crankshaft Rear Oil Seal Replacement (Manual Transmission)

Crankshaft Rear Oil Seal Replacement (Manual Transmission)

Special Tools

EN-42067 - Rear Main Seal Installer

For equivalent regional tools, refer to Special Tools (LDK, LHU) Tools and Equipment.

Removal Procedure

1. Remove the engine flywheel. Refer to Engine Flywheel Replacement Engine Flywheel Replacement.

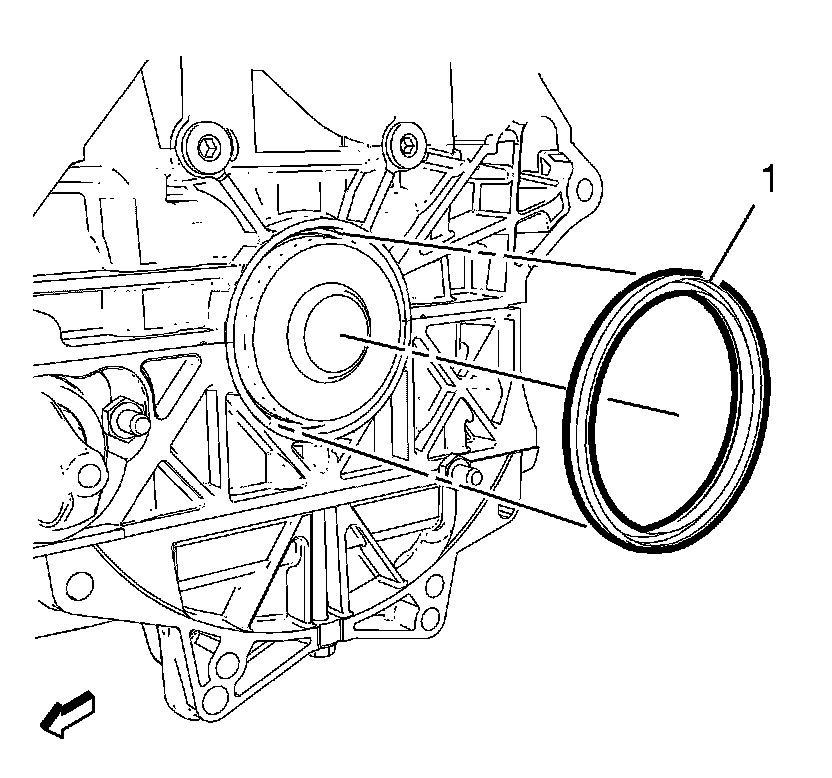

2. Remove the crankshaft rear oil seal (1) with a suitable tool.

Installation Procedure

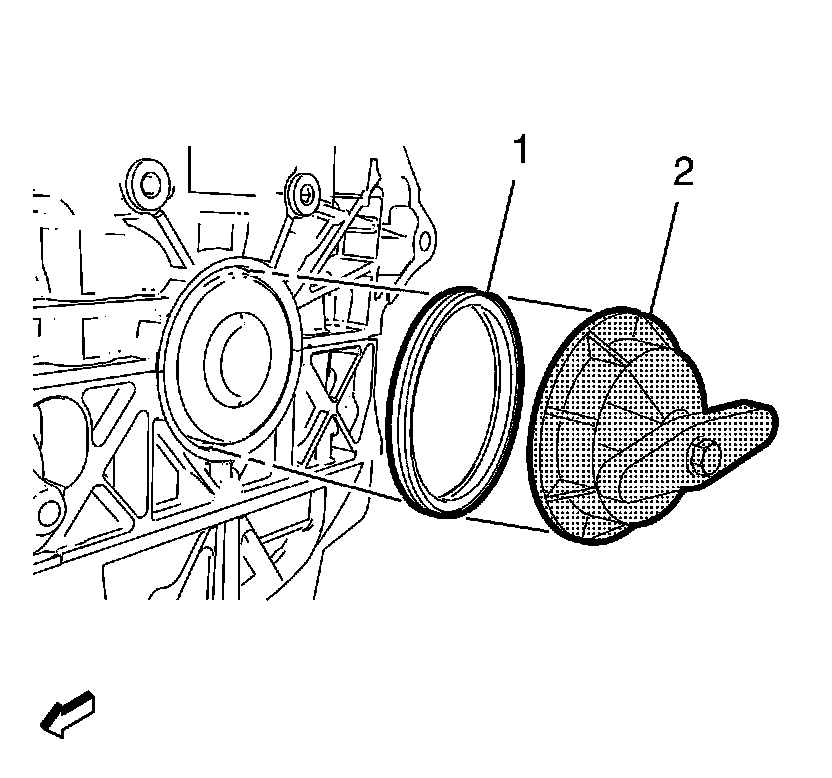

1. Install the crankshaft rear oil seal (1) using the EN-42067 - installer (2).

2. Install the engine flywheel. Refer to Engine Flywheel Replacement Engine Flywheel Replacement.
