Automatic Transmission/Transaxle
>>

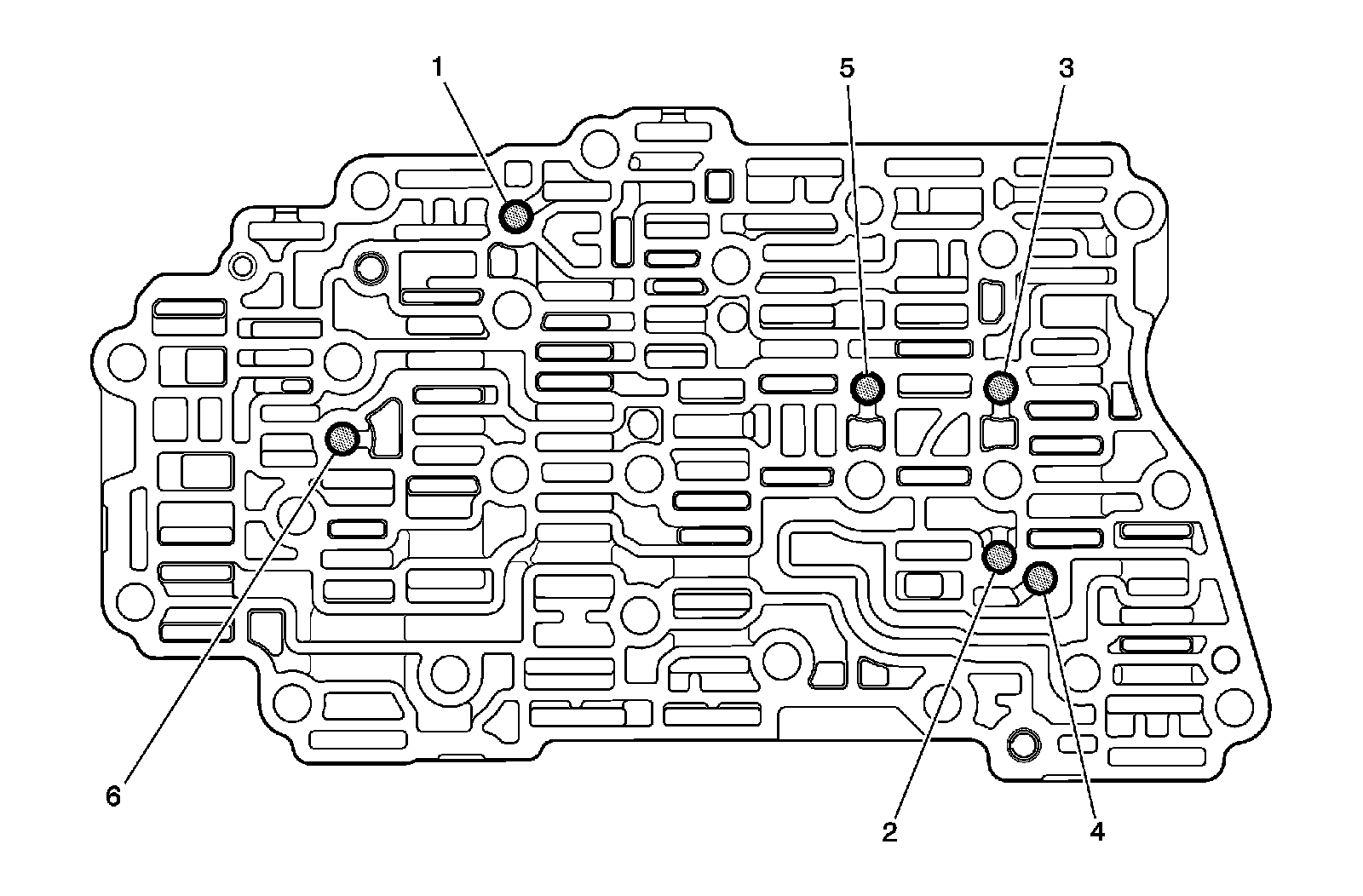

Ball Check Valve Locations (Gen 2)

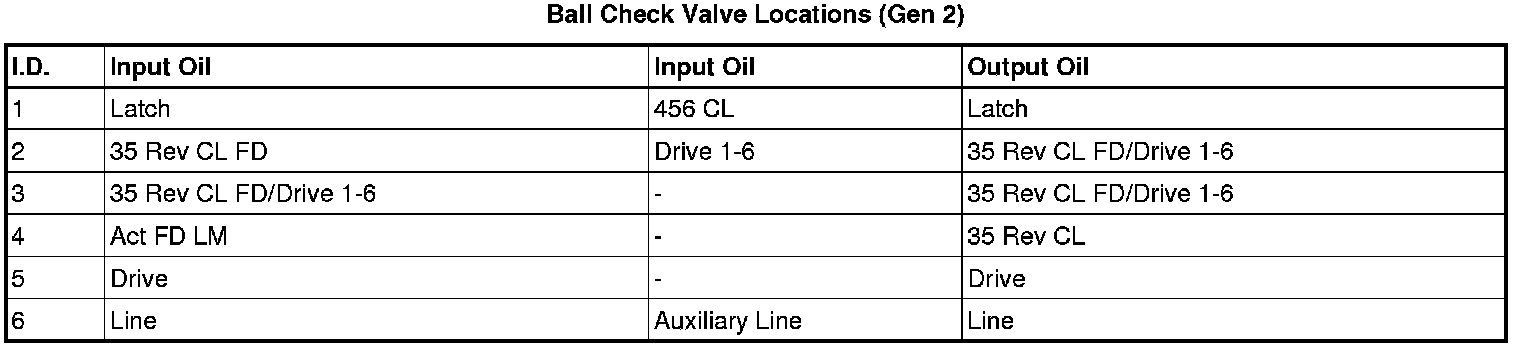

Ball Check Valve Locations (Gen 2)
Ball Check Valve Locations (Gen 2)
