Automatic Transmission/Transaxle
>>

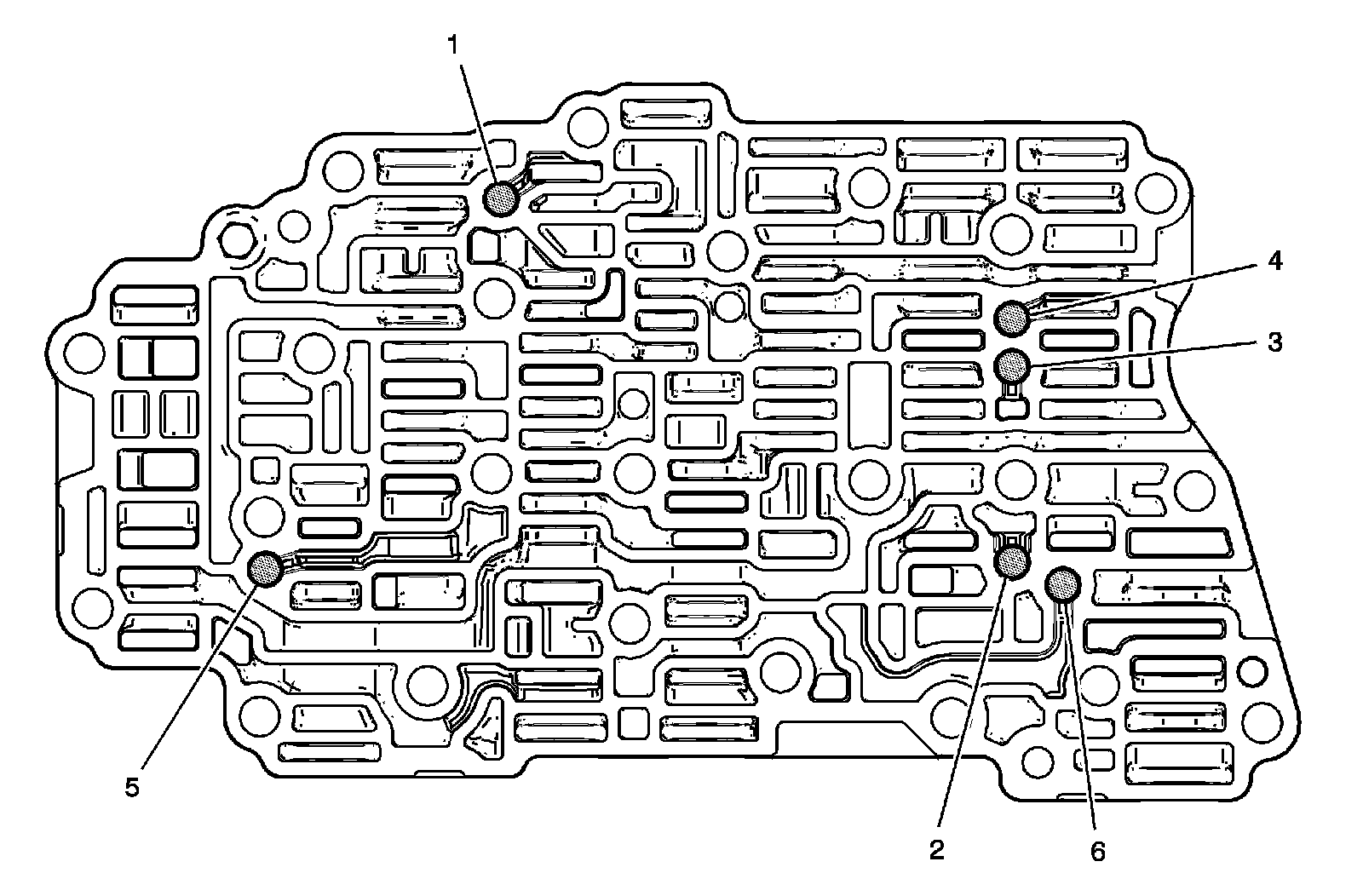

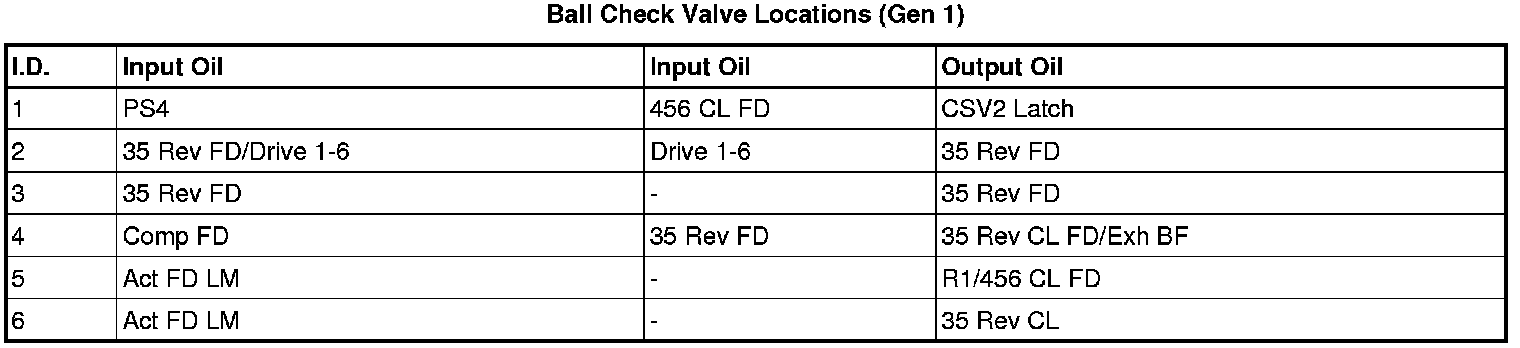

Ball Check Valve Locations (Gen 1)
Ball Check Valve Locations (Gen 1)
Ball Check Valve Locations (Gen 1)
