Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Column

Steering Column

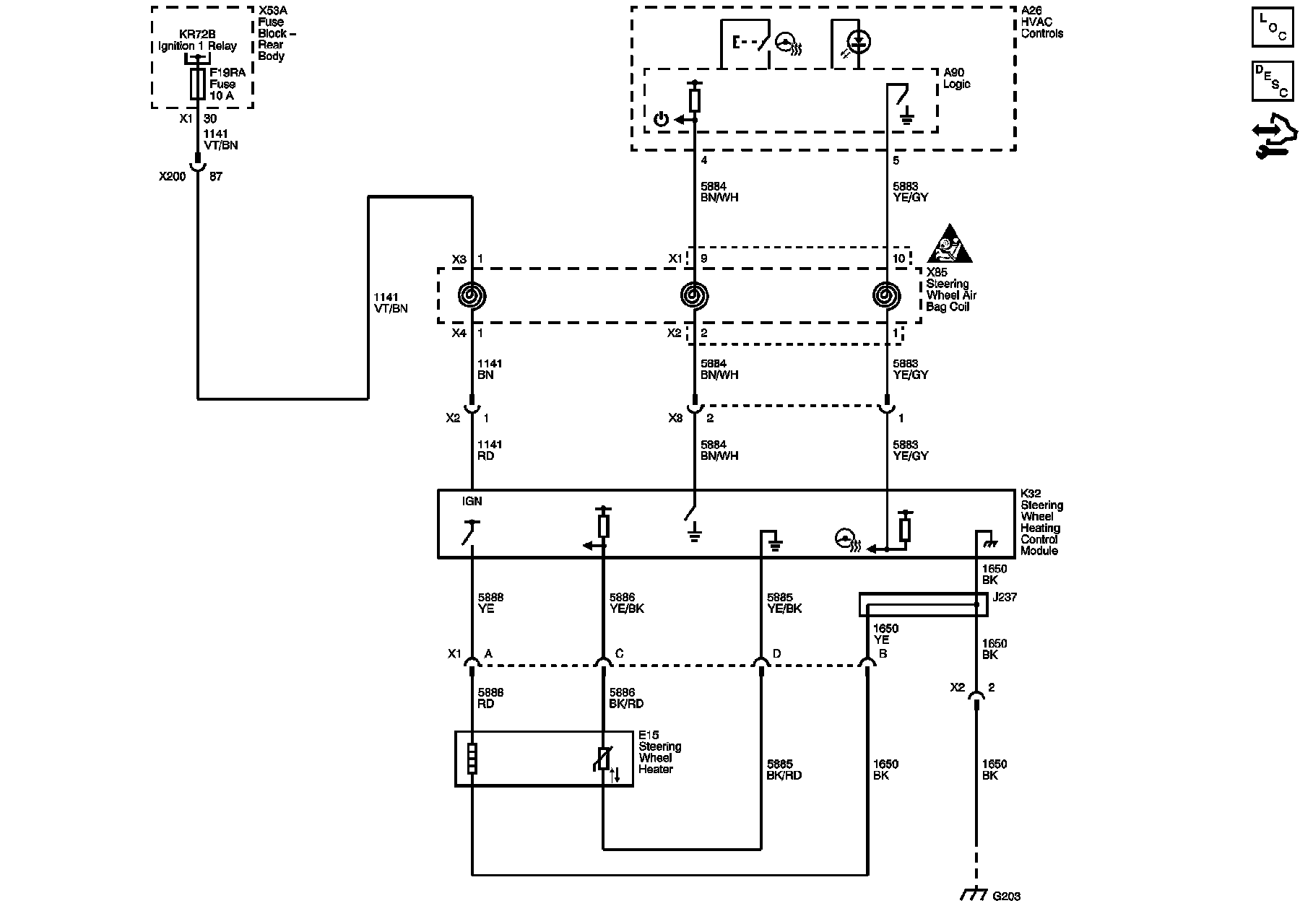

Steering Wheel Schematics

UVD





Steering Wheel and Column Description and Operation
