System Diagram




Starting and Charging Schematics

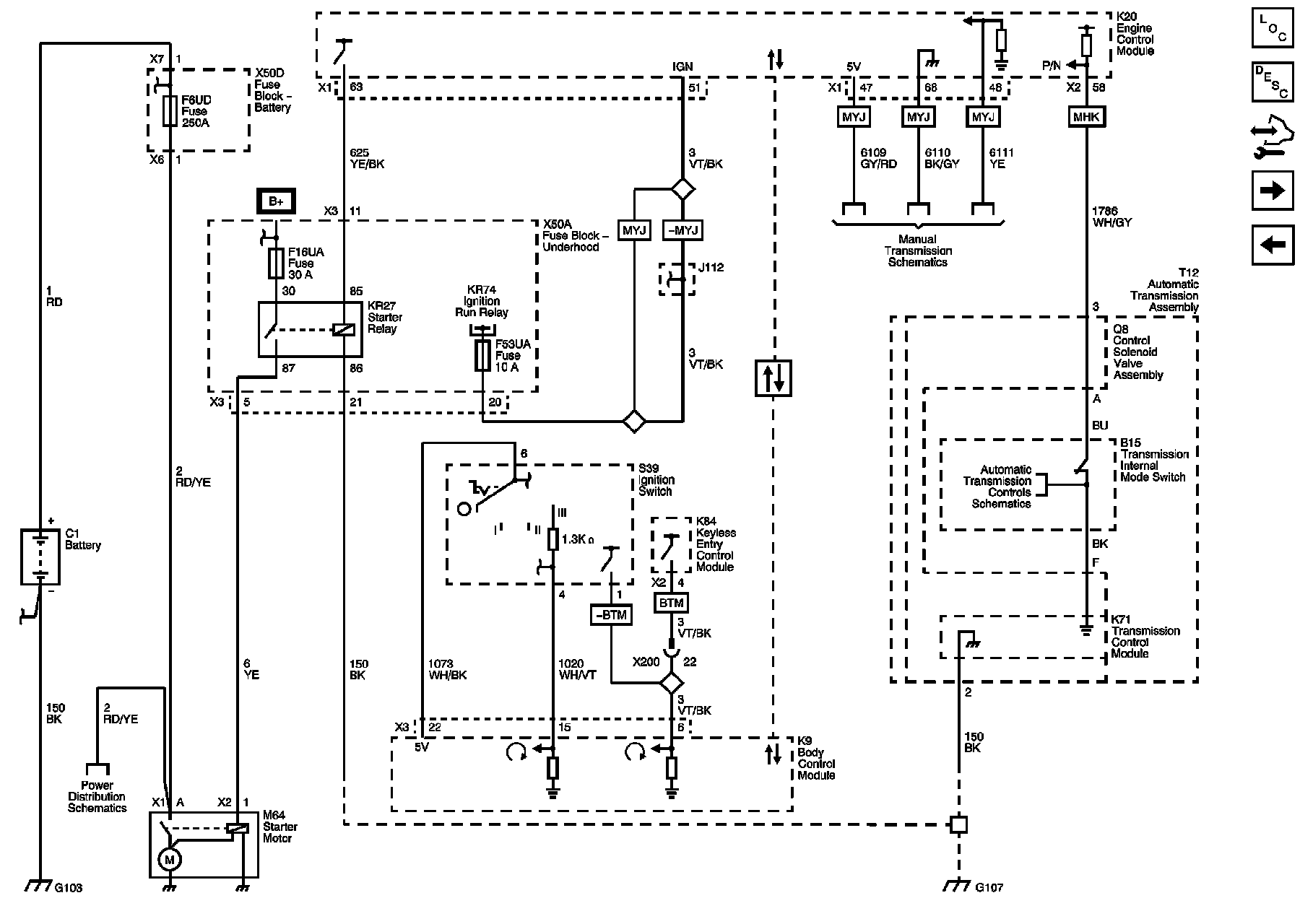

Starting





Starting System Description and Operation
Charging

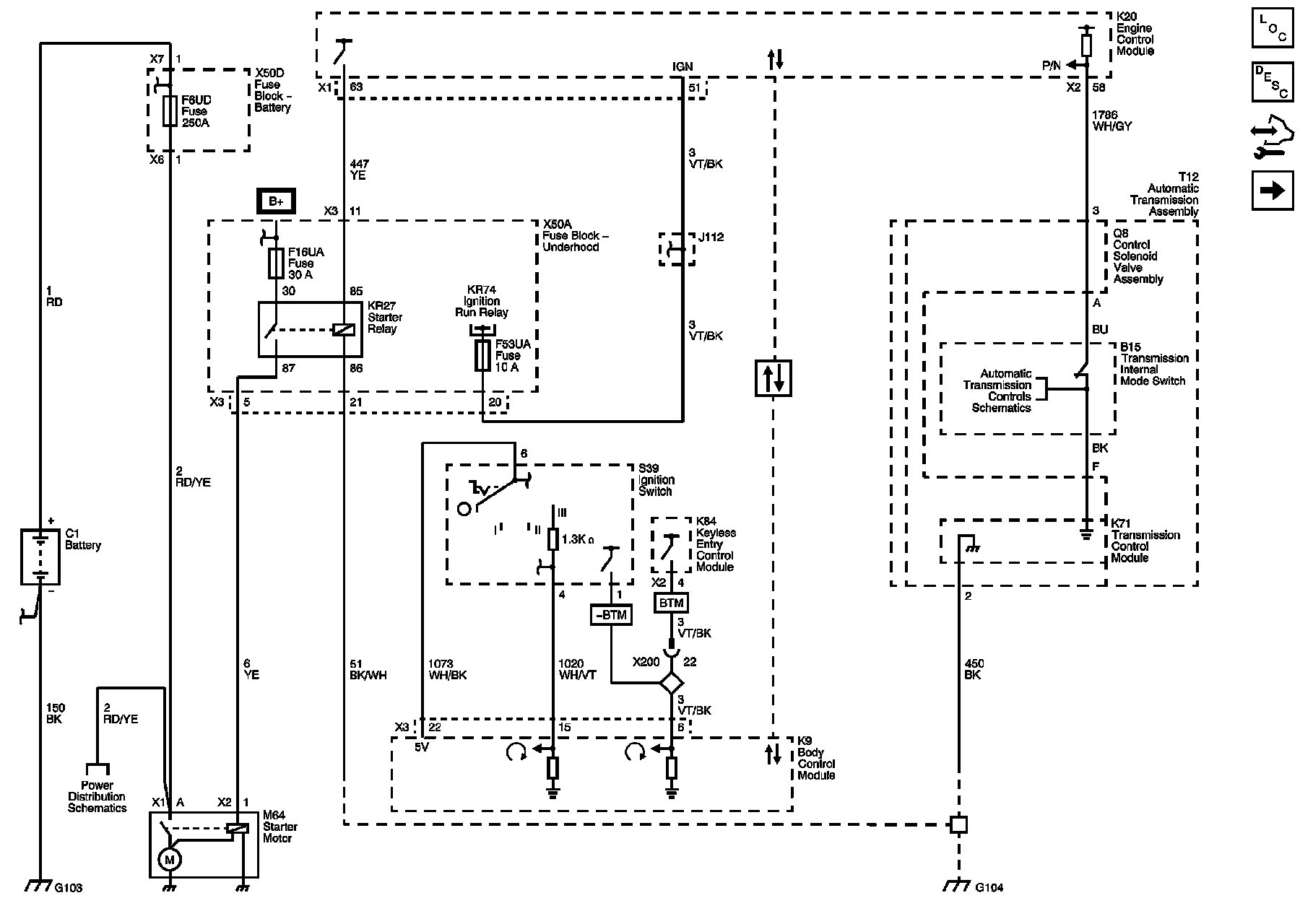

Starting (LHU)

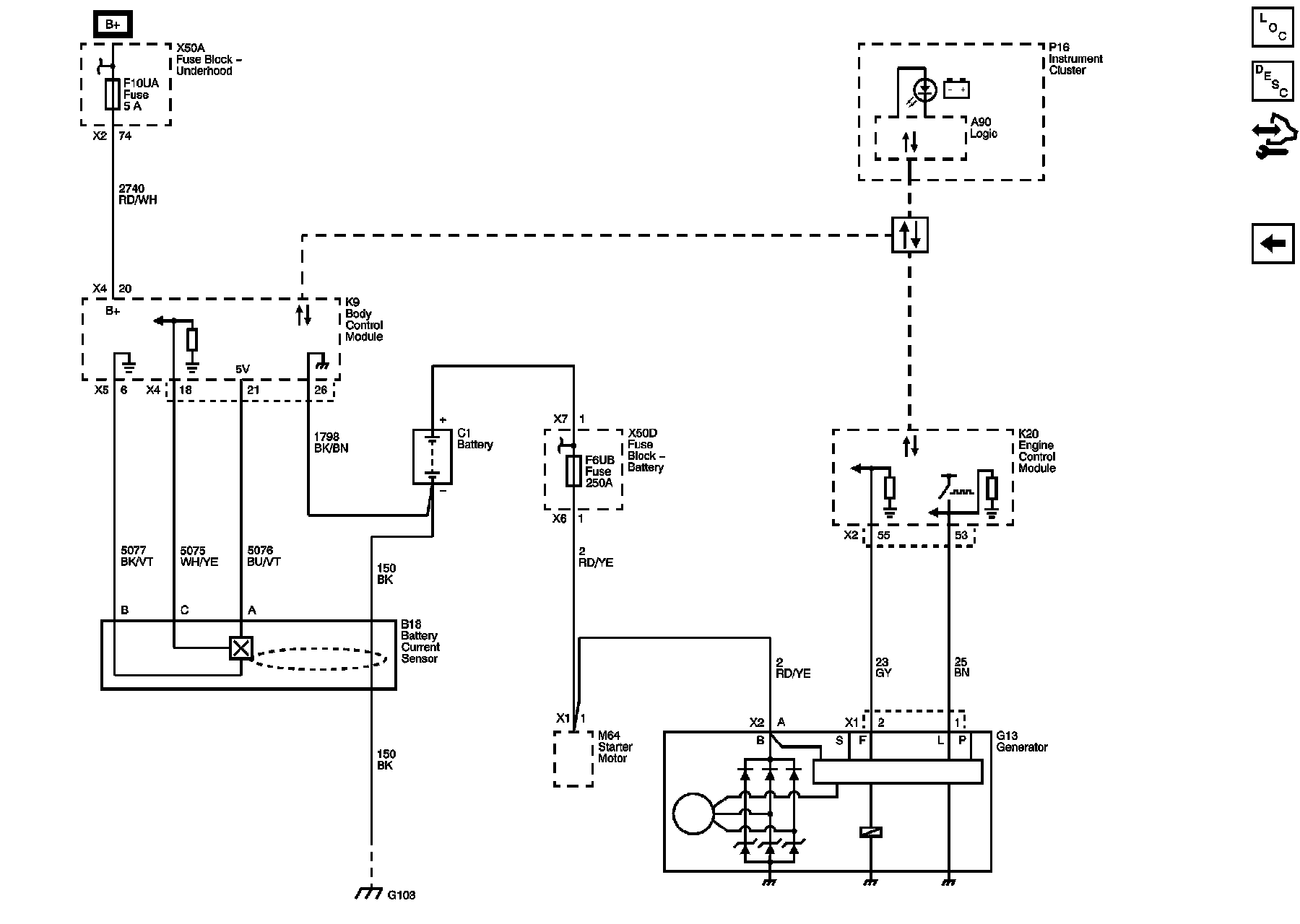

Charging





Charging System Description and Operation
Starting
