Power Distribution Schematics
Power Distribution Schematics

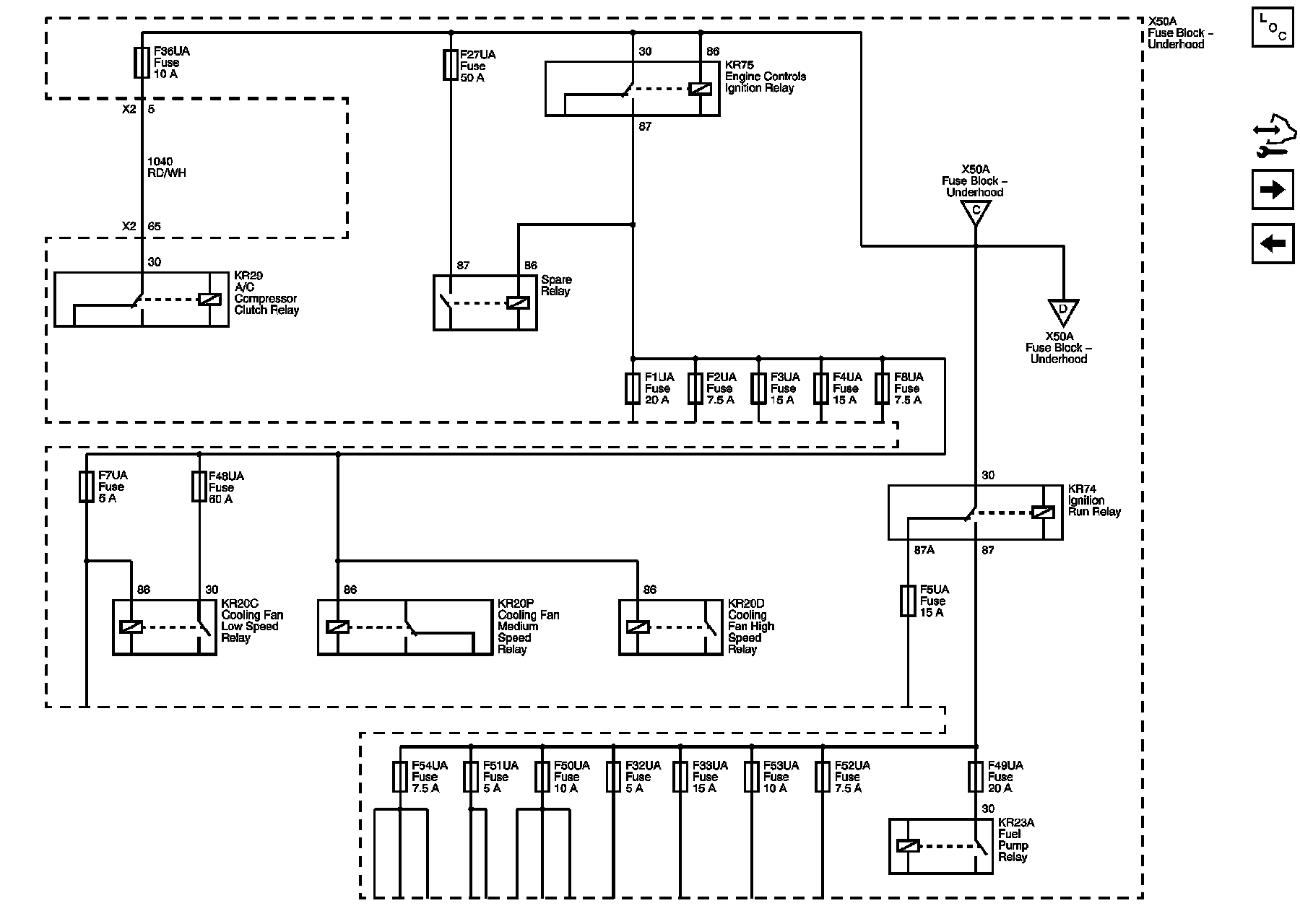

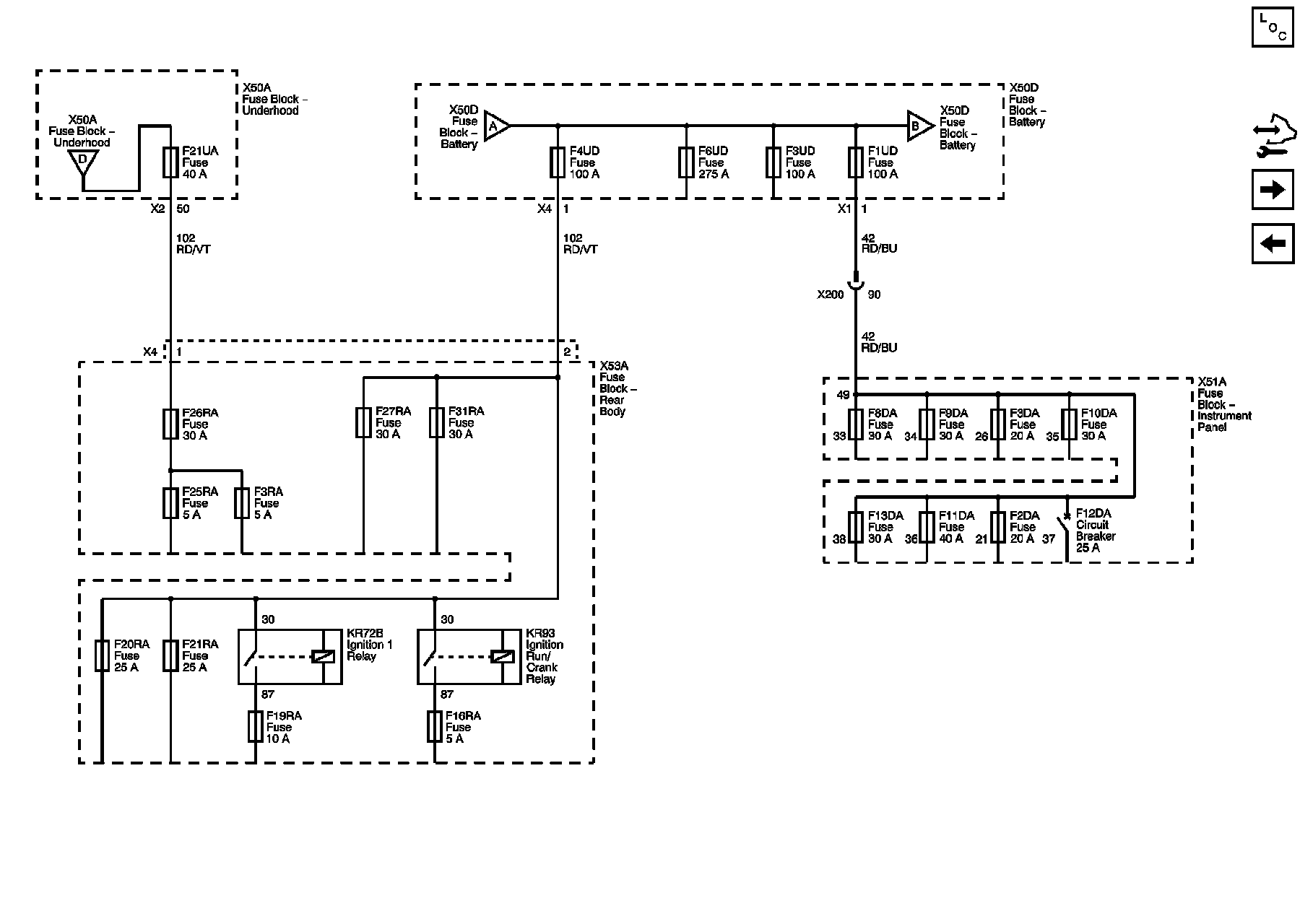

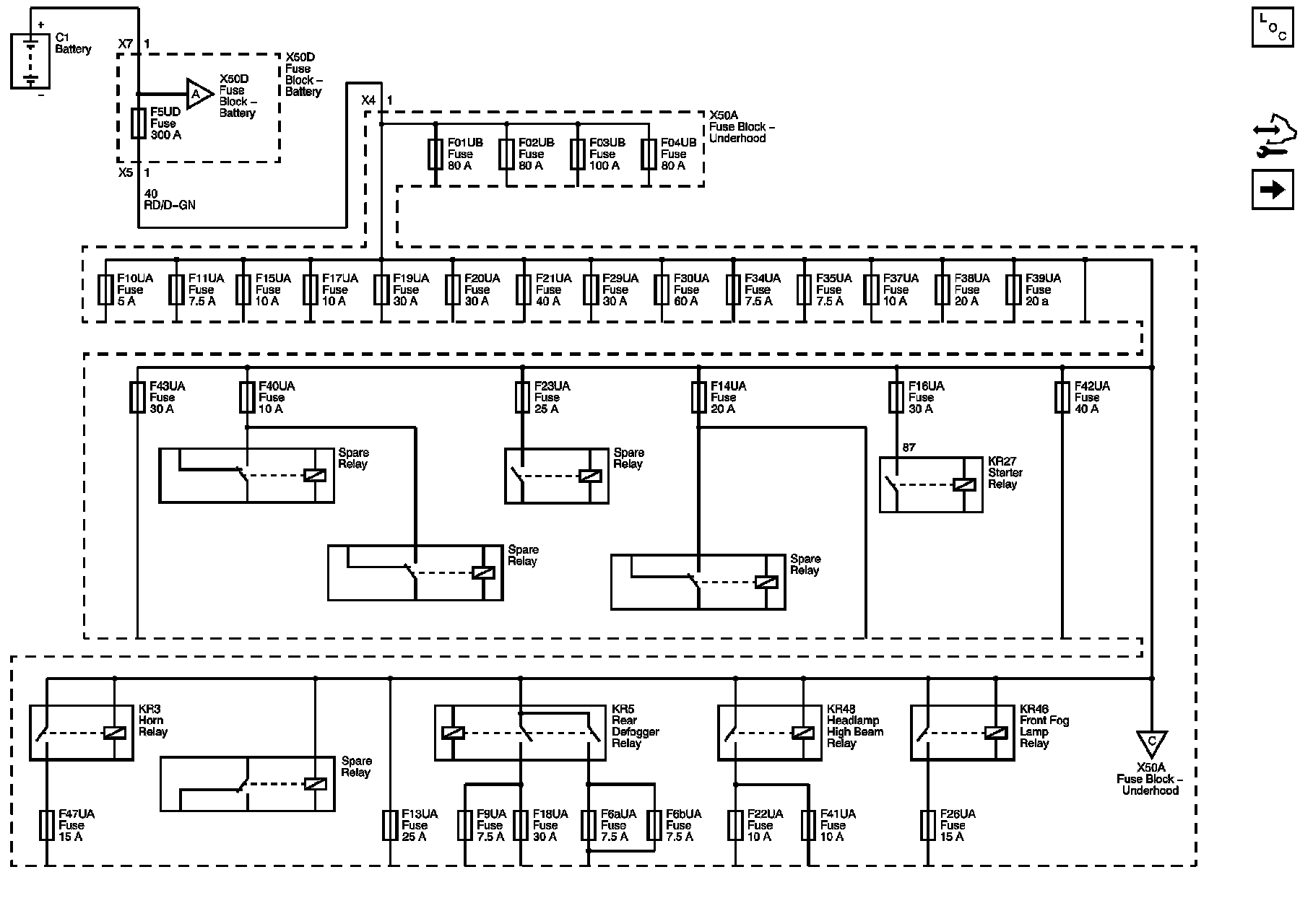

B+ Bus (1 of 4)

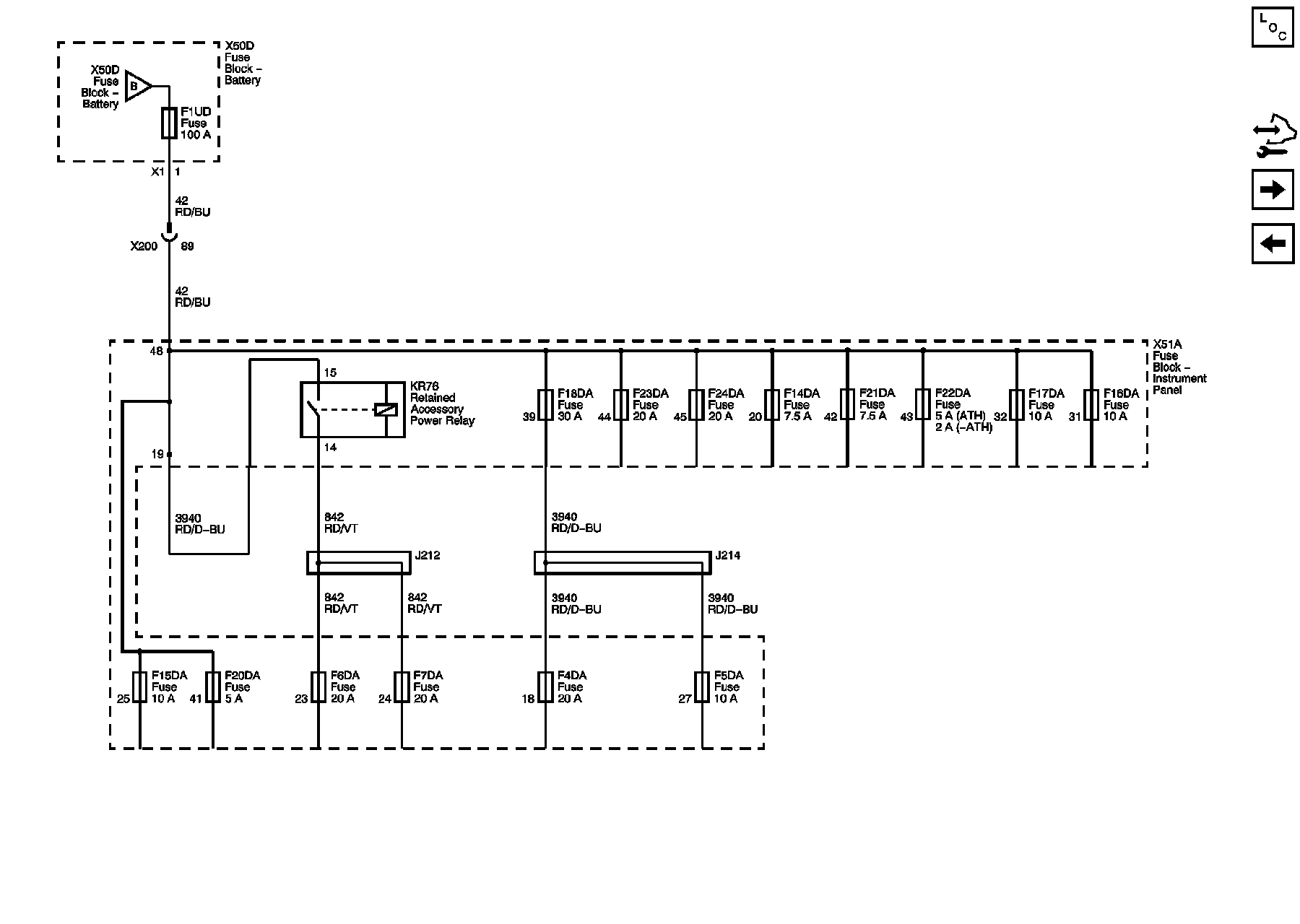

B+ Bus (2 of 4)
B+ Bus (2 of 4)
B+ Bus (3 of 4)
B+ Bus (1 of 4)
B+ Bus (3 of 4)
B+ Bus (4 of 4)
B+ Bus (2 of 4)
B+ Bus (4 of 4)

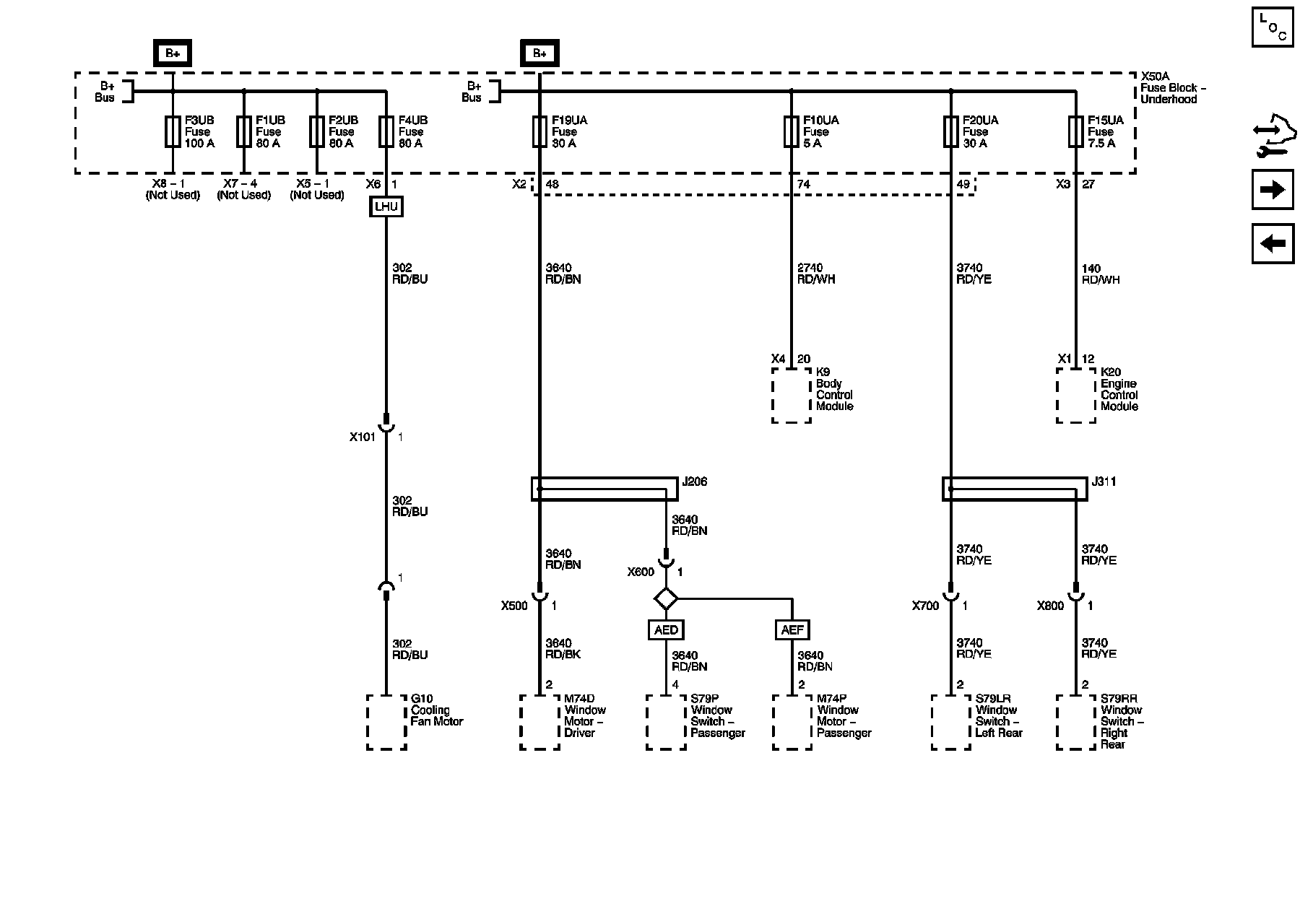

F1UB, F2UB F3UB, F4UB, F10UA, F15UA, F19UA and F20UA Fuses
B+ Bus (3 of 4)
F1UB, F2UB, F3UB, F4UB, F10UA, F15UA, F19UA and F20UA Fuses

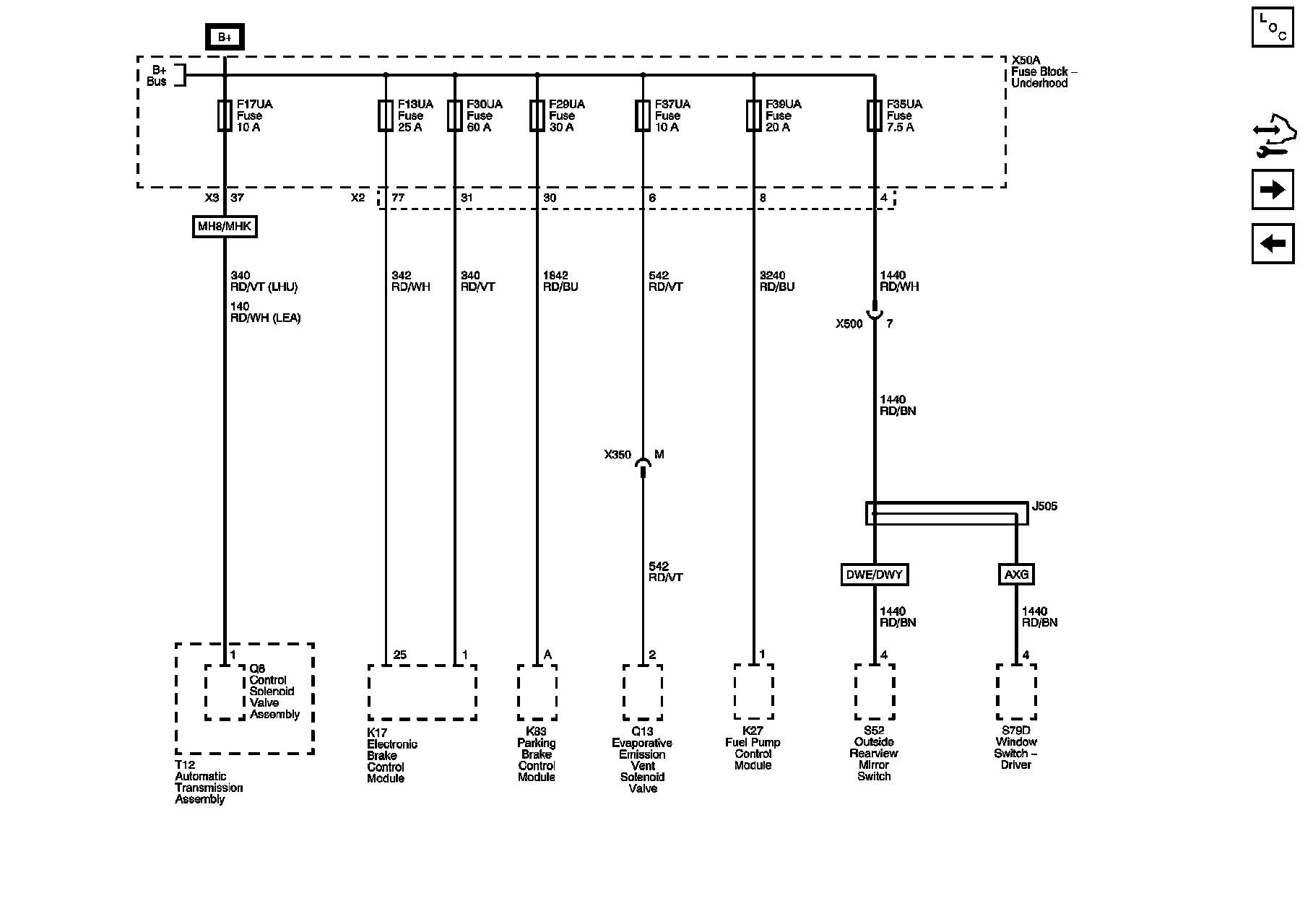

F17UA, F21UA, F29UA, F30UA, F35UA, F37UA, F38UA, and F39UA Fuses
B+ Bus (4 of 4)
F17UA, F21UA, F29UA, F30UA, F35UA, F37UA, F38UA, and F39UA Fuses

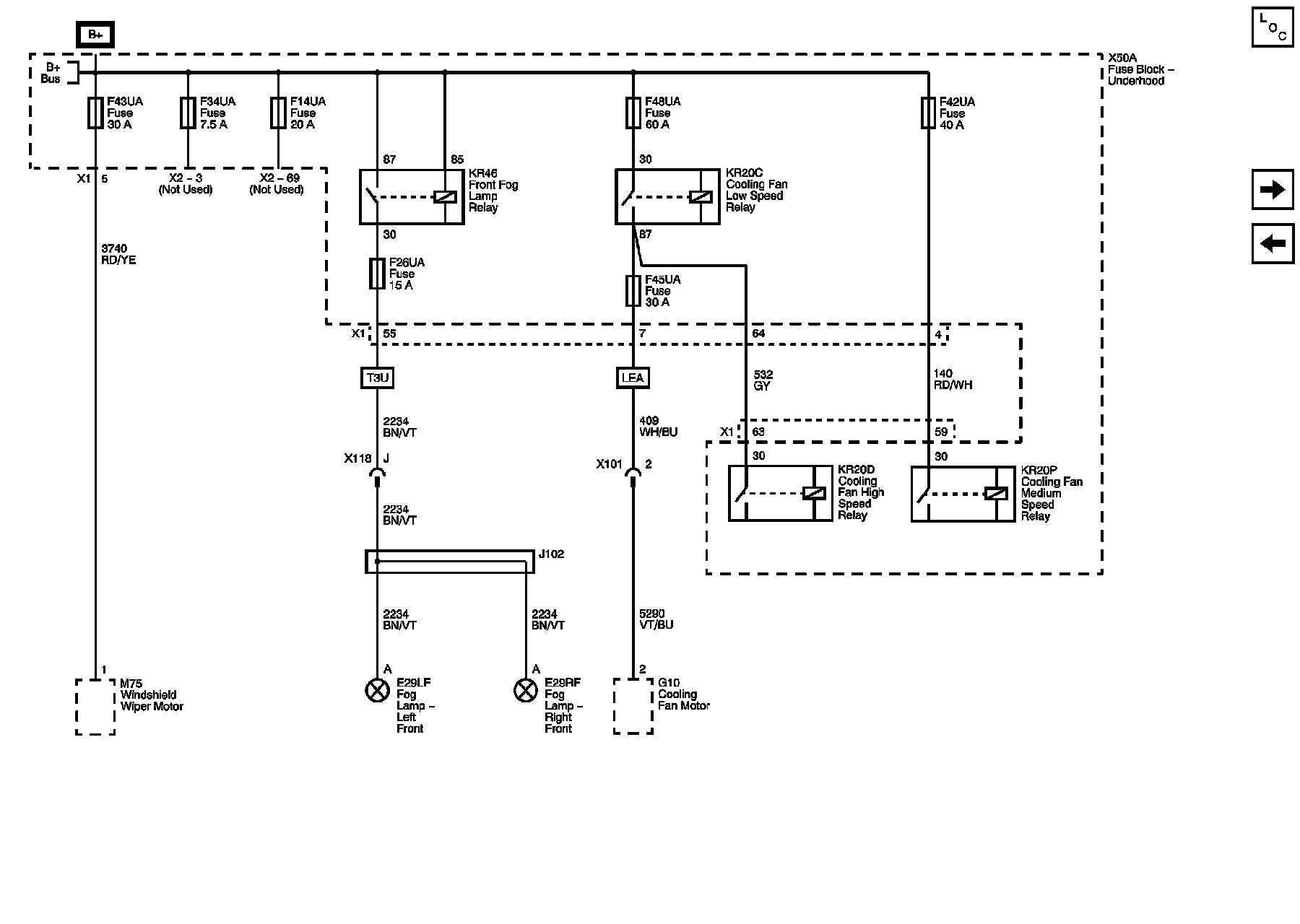

F14UA, F26UA, F34UA, F42UA, F43UA, F45UA, and F48UA Fuses
F1UB, F2UB F3UB, F4UB, F10UA, F15UA, F19UA and F20UA Fuses
F14UA, F26UA, F34UA, F42UA, F43UA, F45UA, and F48UA Fuses

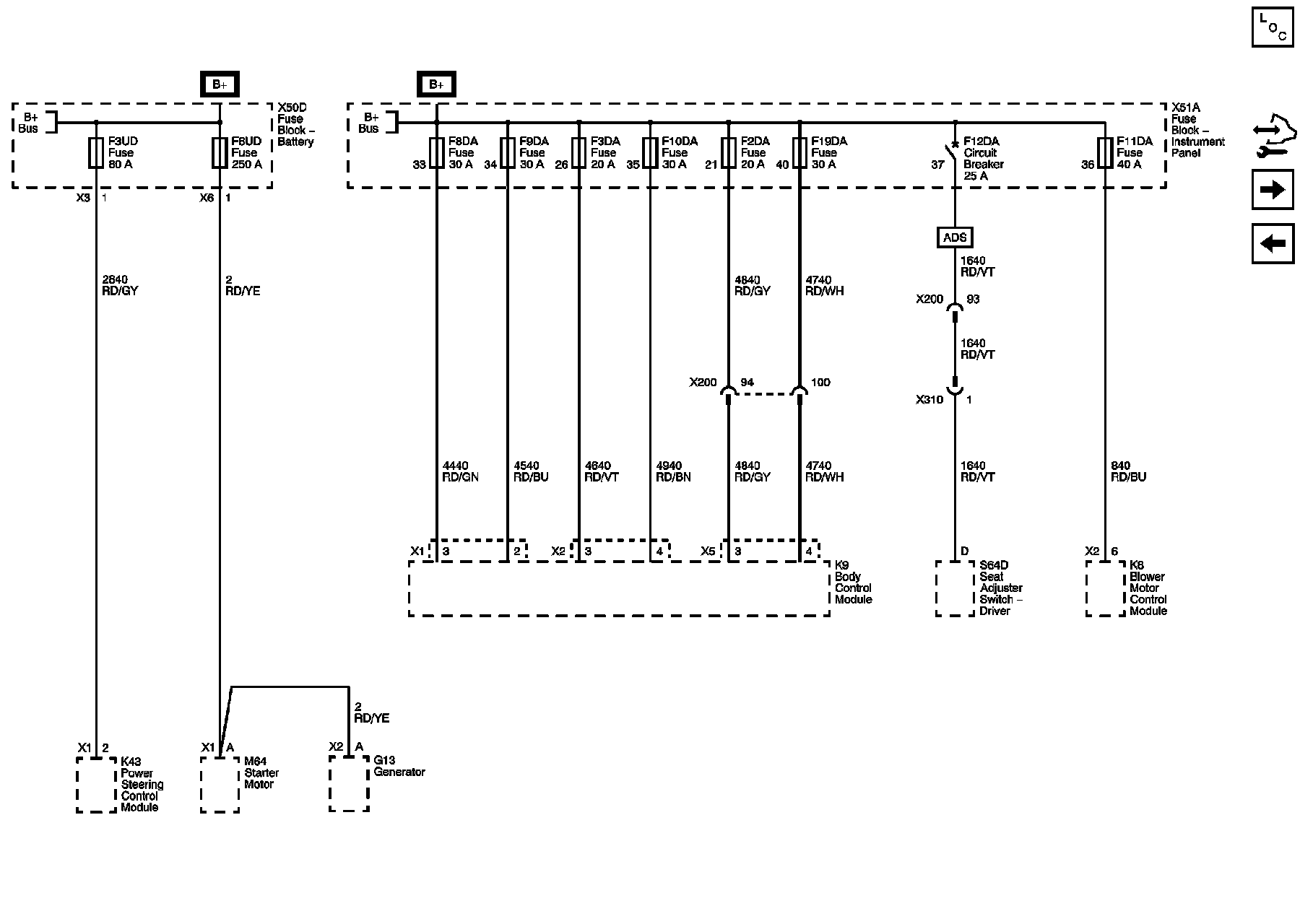

F6UD, F2DA, F3DA, F8DA, F9DA, F10DA, F11DA, F19DA, F20DA Fuses, and F12DA Circuit Breaker
F17UA, F21UA, F29UA, F30UA, F35UA, F37UA, F38UA, and F39UA Fuses
F6UD, F2DA, F3DA, F8DA, F9DA, F10DA, F11DA, F19DA, F20DA Fuses, and F12DA Circuit Breaker

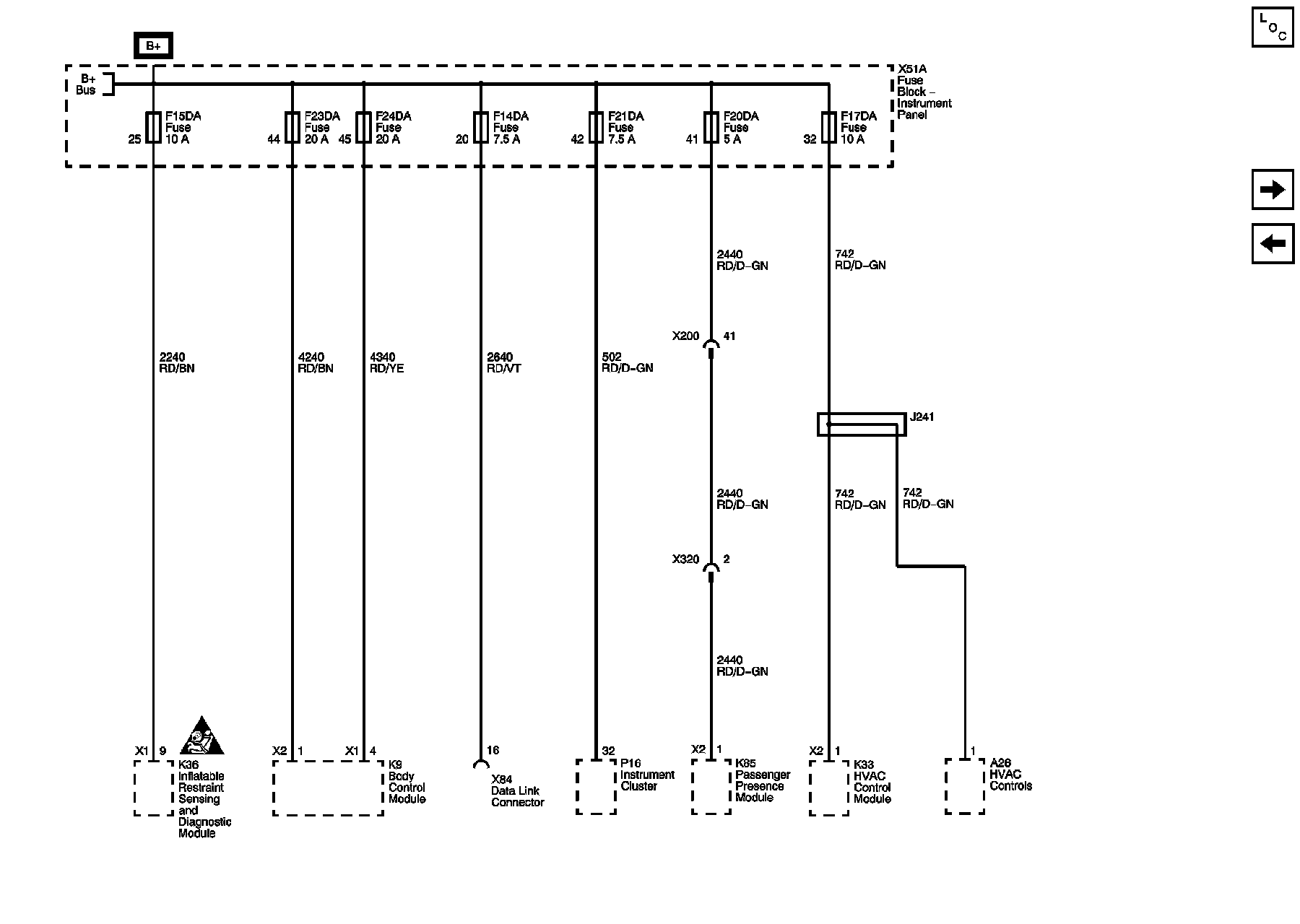

F14DA, F15DA, F17DA, F21DA, F23DA, and F24DA Fuses
F14UA, F26UA, F34UA, F42UA, F43UA, F45UA, and F48UA Fuses
F14DA, F15DA, F17DA, F21DA, F23DA, and F24DA Fuses
F4DA, F5DA, F6DA, F7DA and F18DA Fuses
F6UD, F2DA, F3DA, F8DA, F9DA, F10DA, F11DA, F19DA, F20DA Fuses, and F12DA Circuit Breaker
F4DA, F5DA, F6DA, F7DA and F18DA Fuses

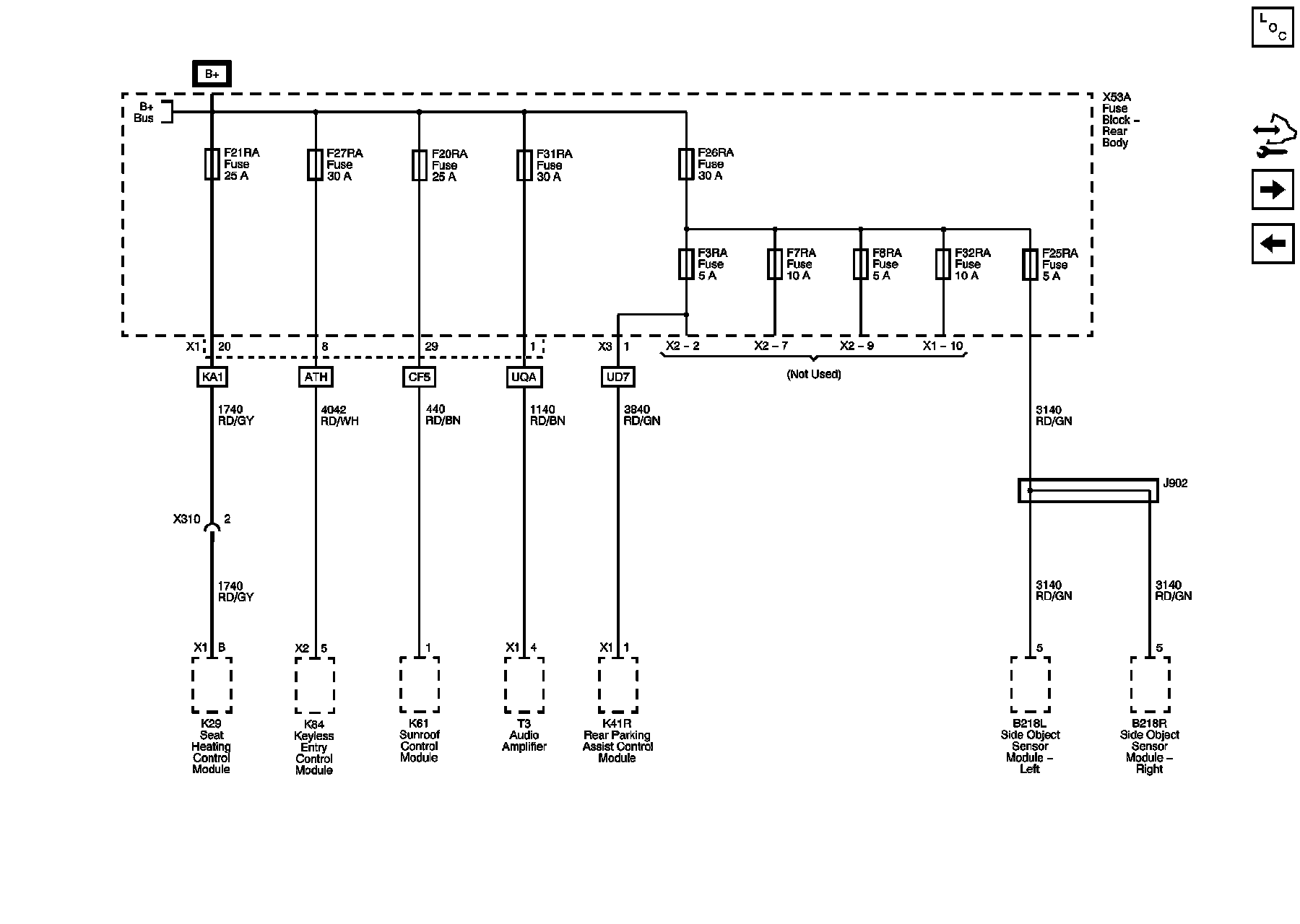

F3RA, F8RA, F19RA, F20RA, F21RA, F25RA, F26RA, F27RA, F31RA and F32RA Fuses
F14DA, F15DA, F17DA, F21DA, F23DA, and F24DA Fuses
F3RA, F8RA, F19RA, F20RA, F21RA, F25RA, F26RA, F27RA, F31RA and F32RA Fuses

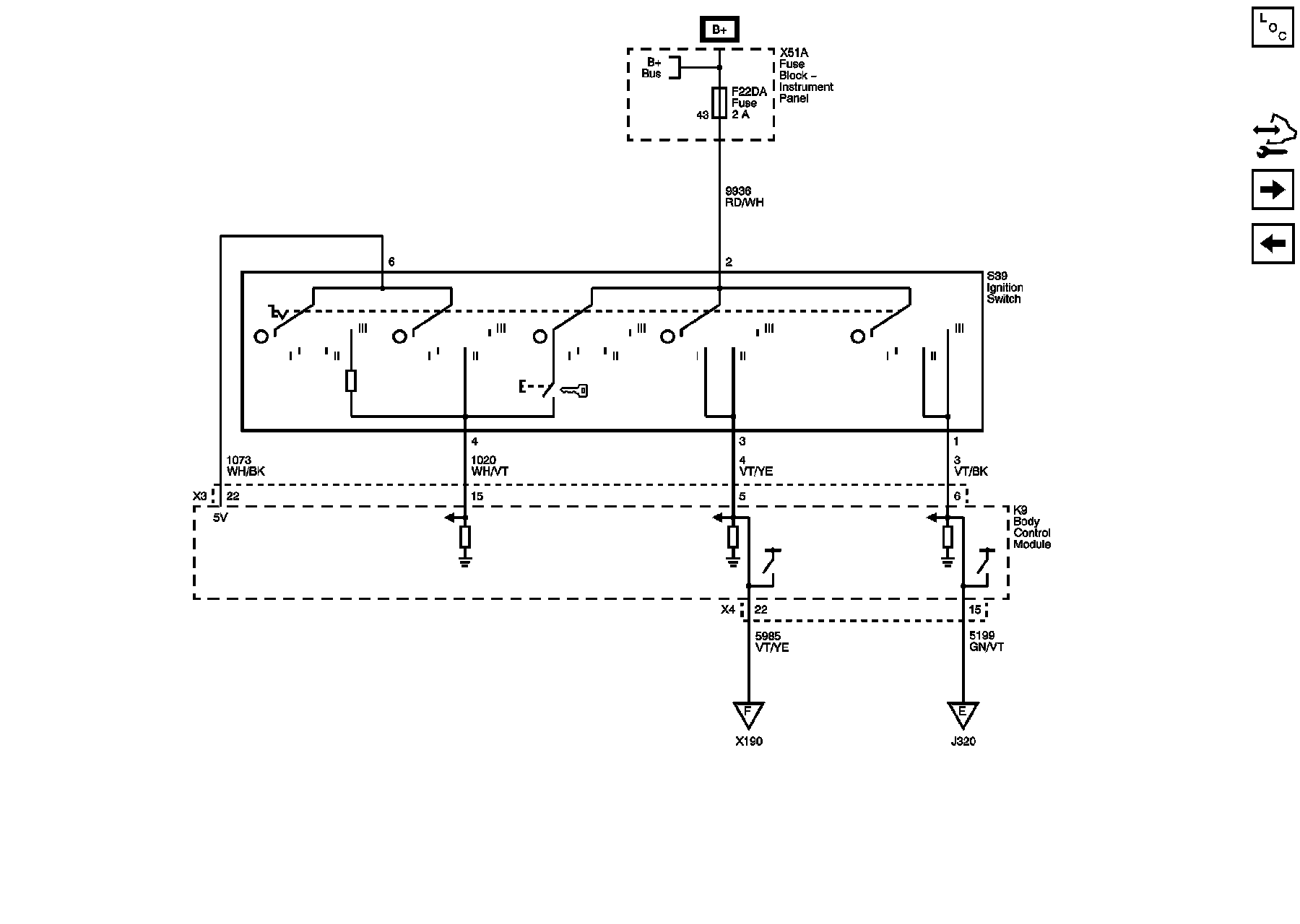

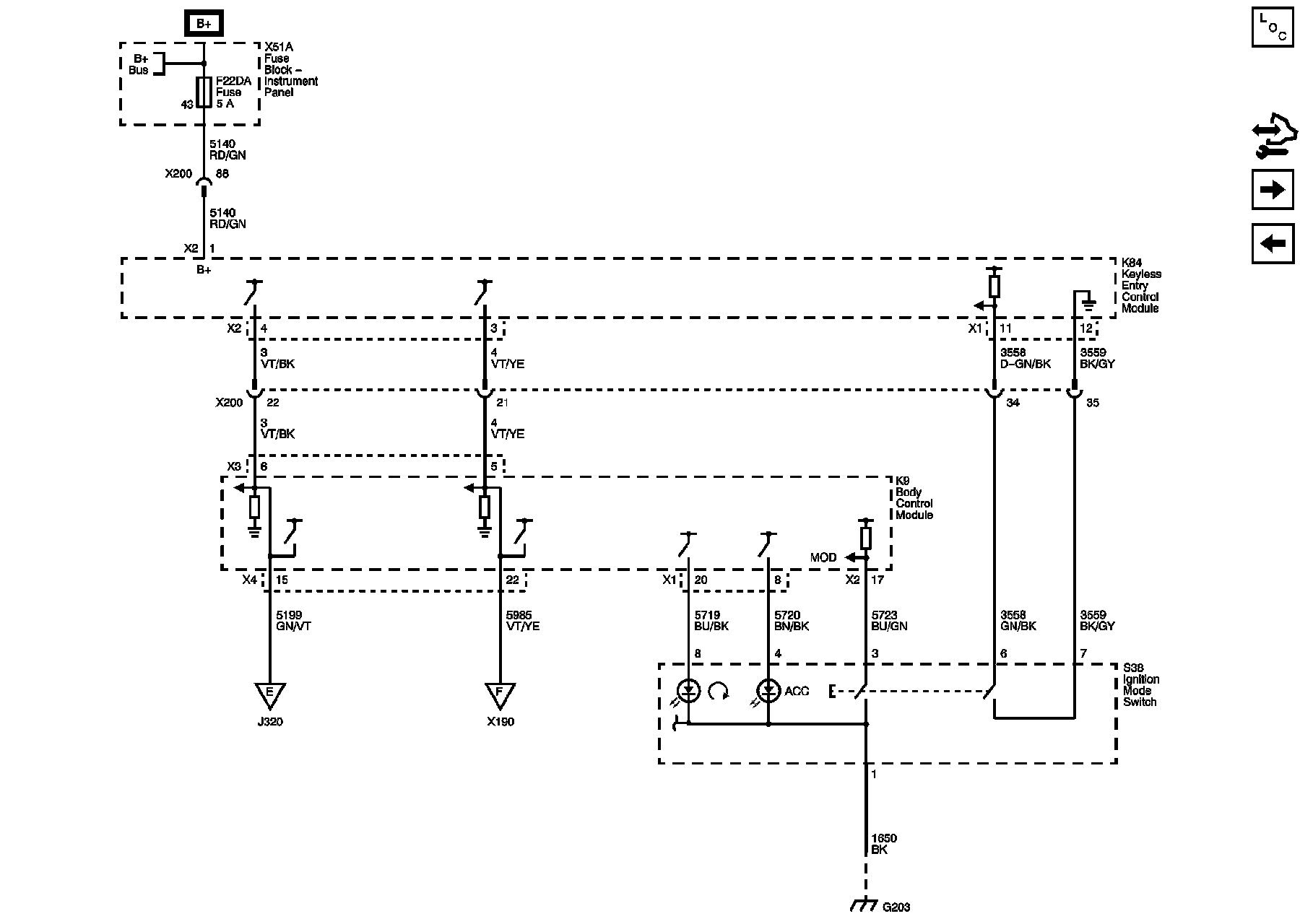

F22DA Fuse and Ignition Switch (ATH)
F4DA, F5DA, F6DA, F7DA and F18DA Fuses

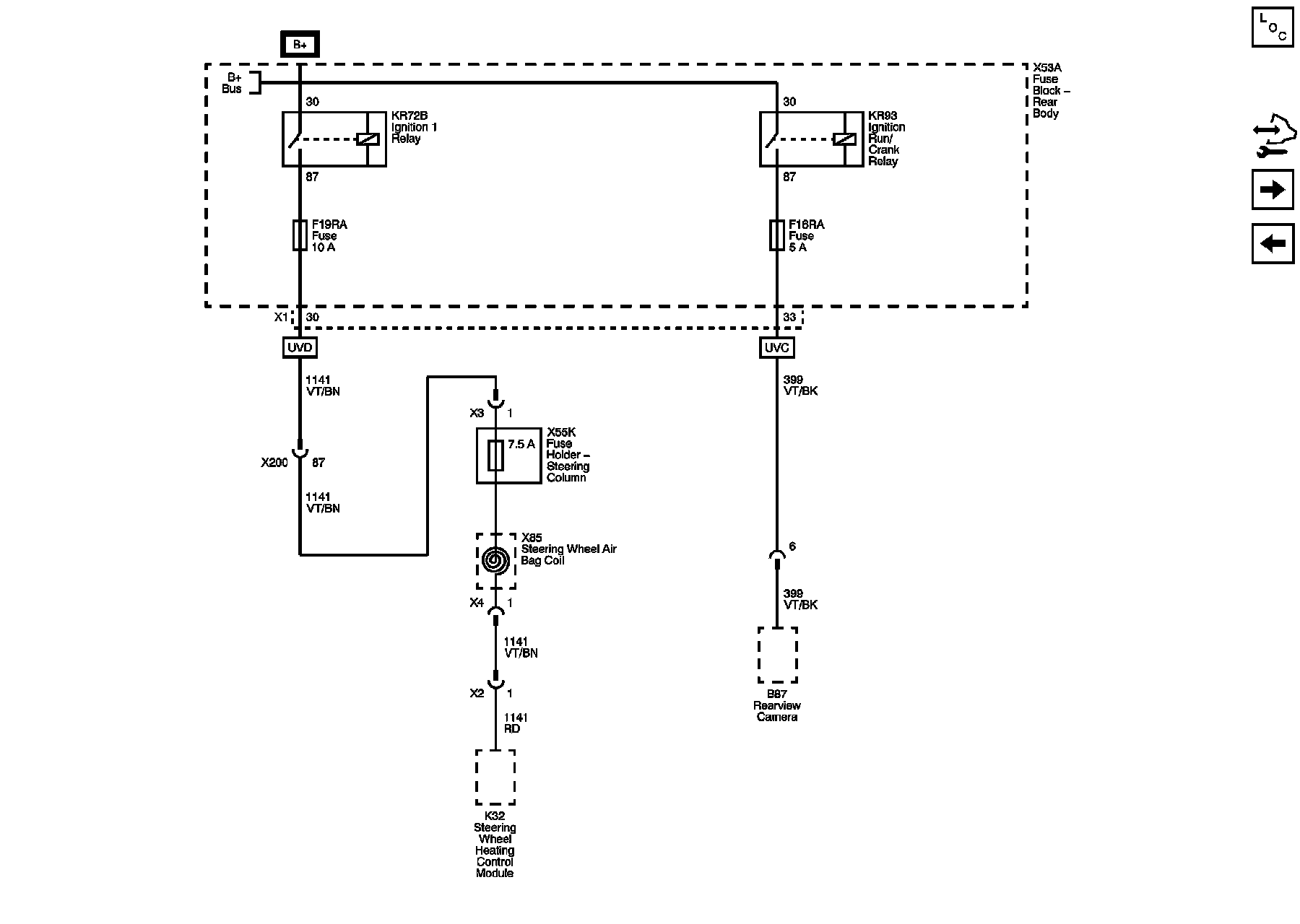

F16RA and F19RA
F22DA Fuse and Ignition Switch (ATH)
F22DA Fuse and Ignition Switch (without ATH)
F3RA, F8RA, F19RA, F20RA, F21RA, F25RA, F26RA, F27RA, F31RA and F32RA Fuses
F22DA Fuse and Ignition Switch (without ATH)

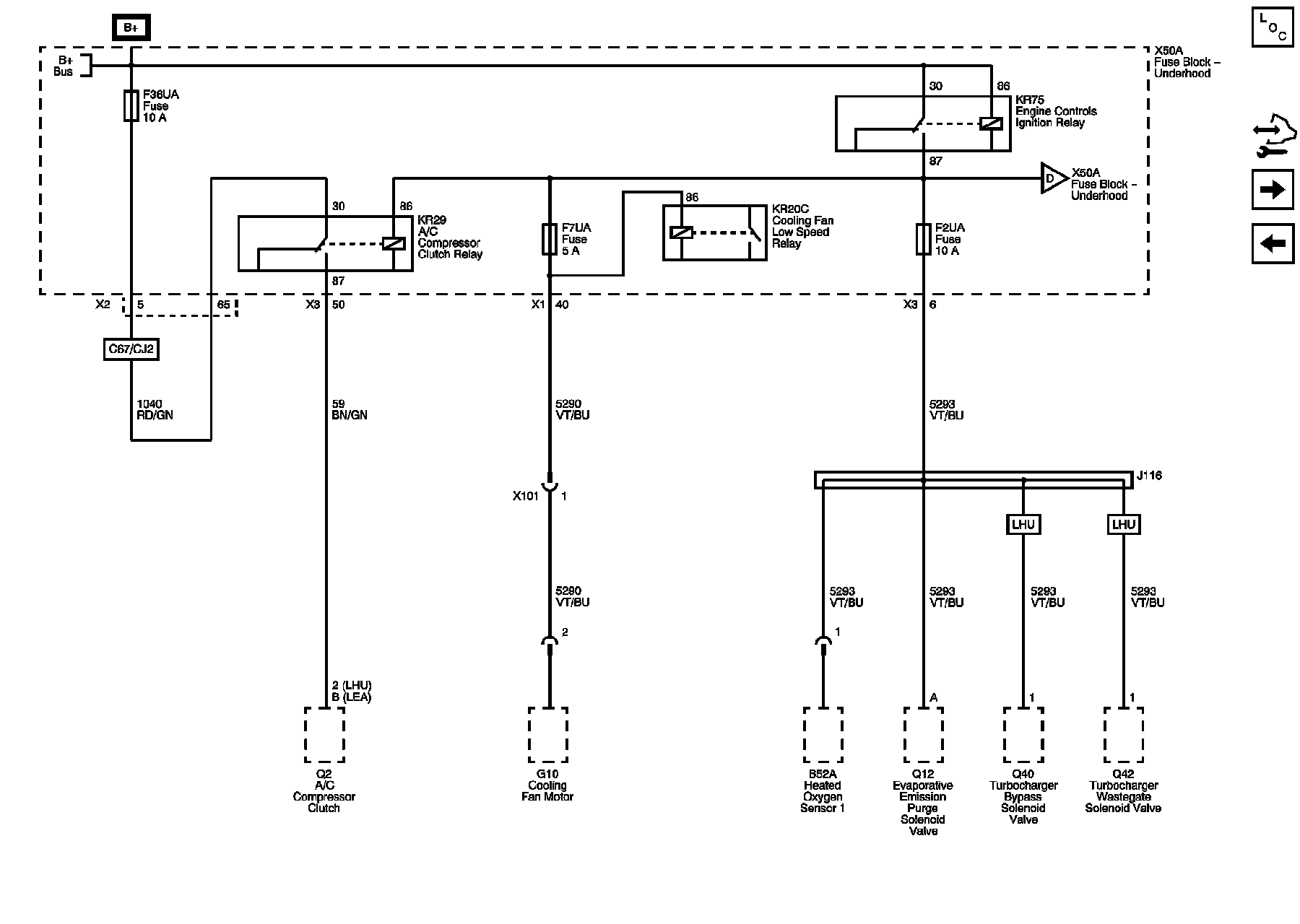

F2UA, F27UA, and F36UA Fuses
F22DA Fuse and Ignition Switch (ATH)

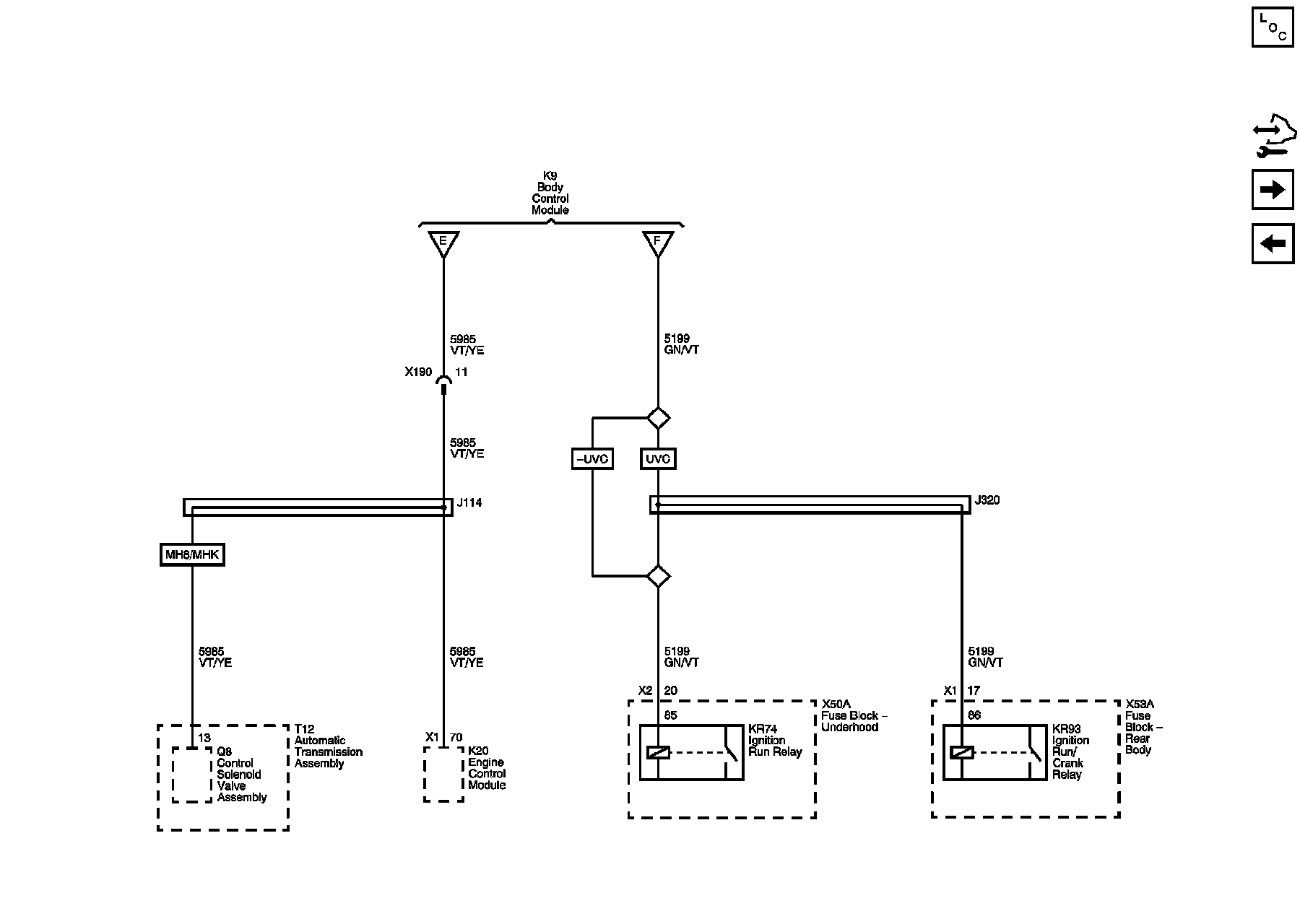

F22DA (cont)
F2UA, F27UA, and F36UA Fuses

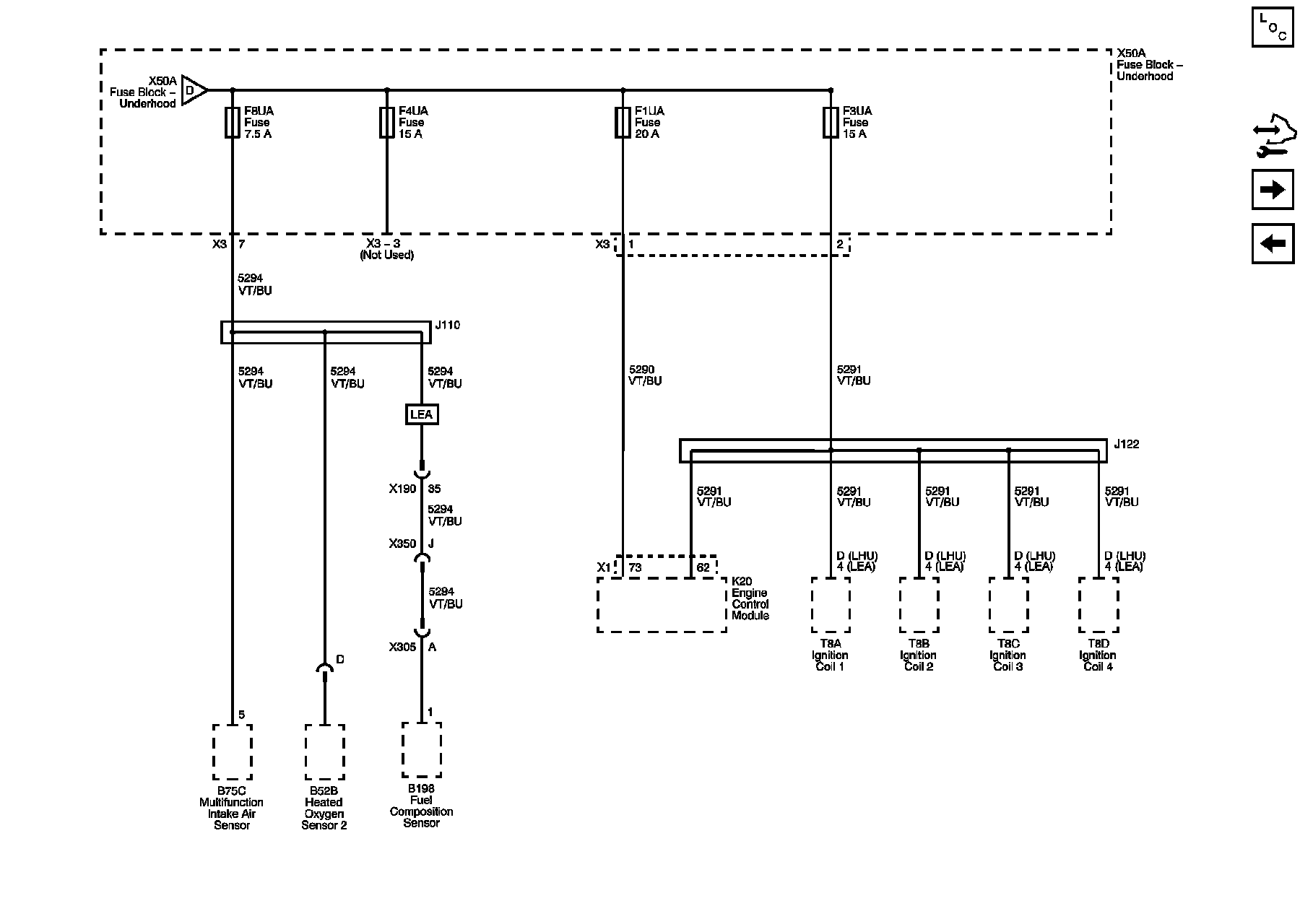

F1UA, F3UA, F4UA, F7UA, and F8UA Fuses
F22DA Fuse and Ignition Switch (without ATH)
F1UA, F3UA, F4UA, F7UA, and F8UA Fuses
F1UA, F3UA, F4UA, F7UA, and F8UA Fuses

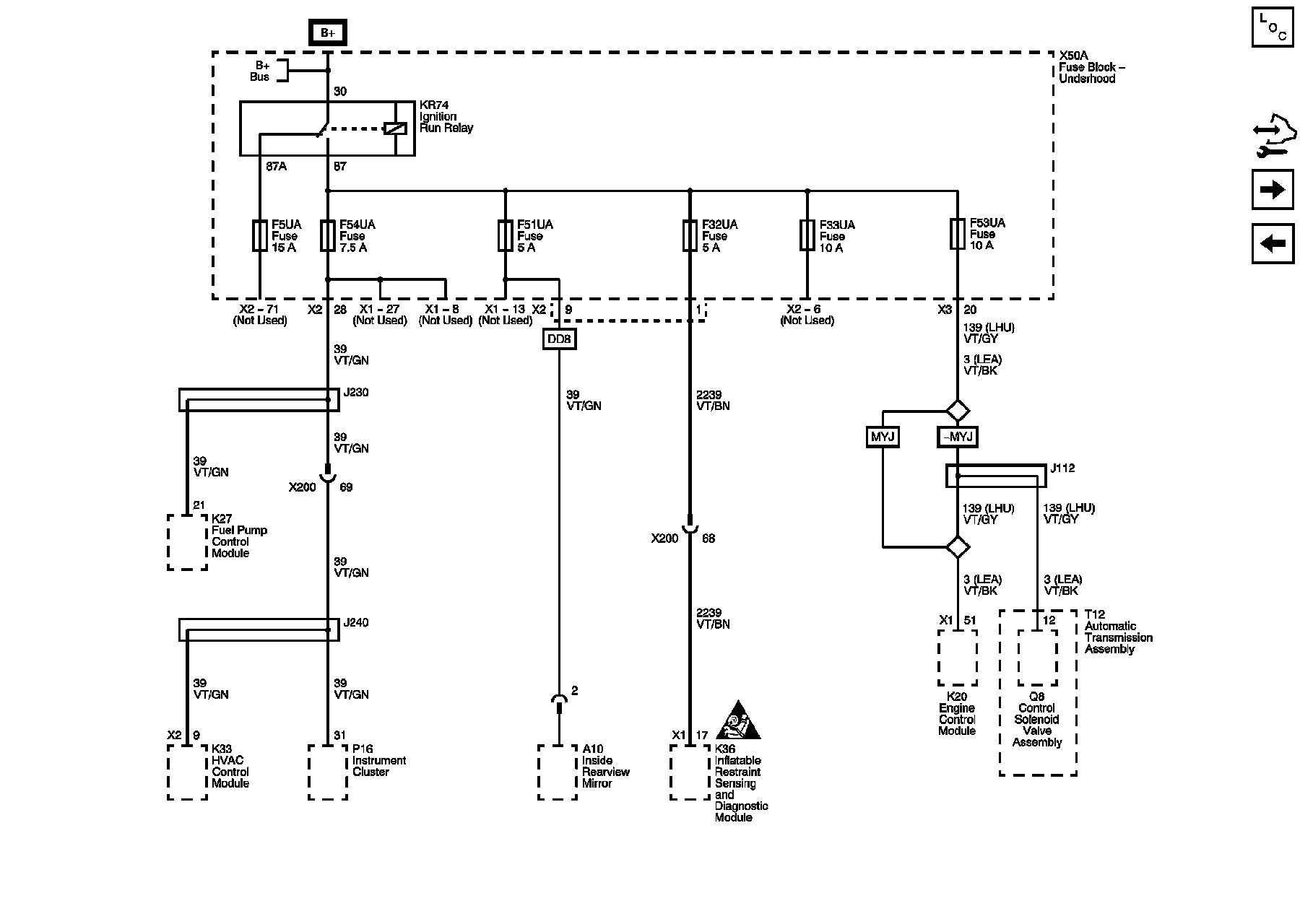

F5UA, F32UA, F50UA, F51UA, F52UA, F53UA, and F54UA Fuses
F2UA, F27UA, and F36UA Fuses
F5UA, F32UA, F50UA, F51UA, F52UA, F53UA, and F54UA Fuses

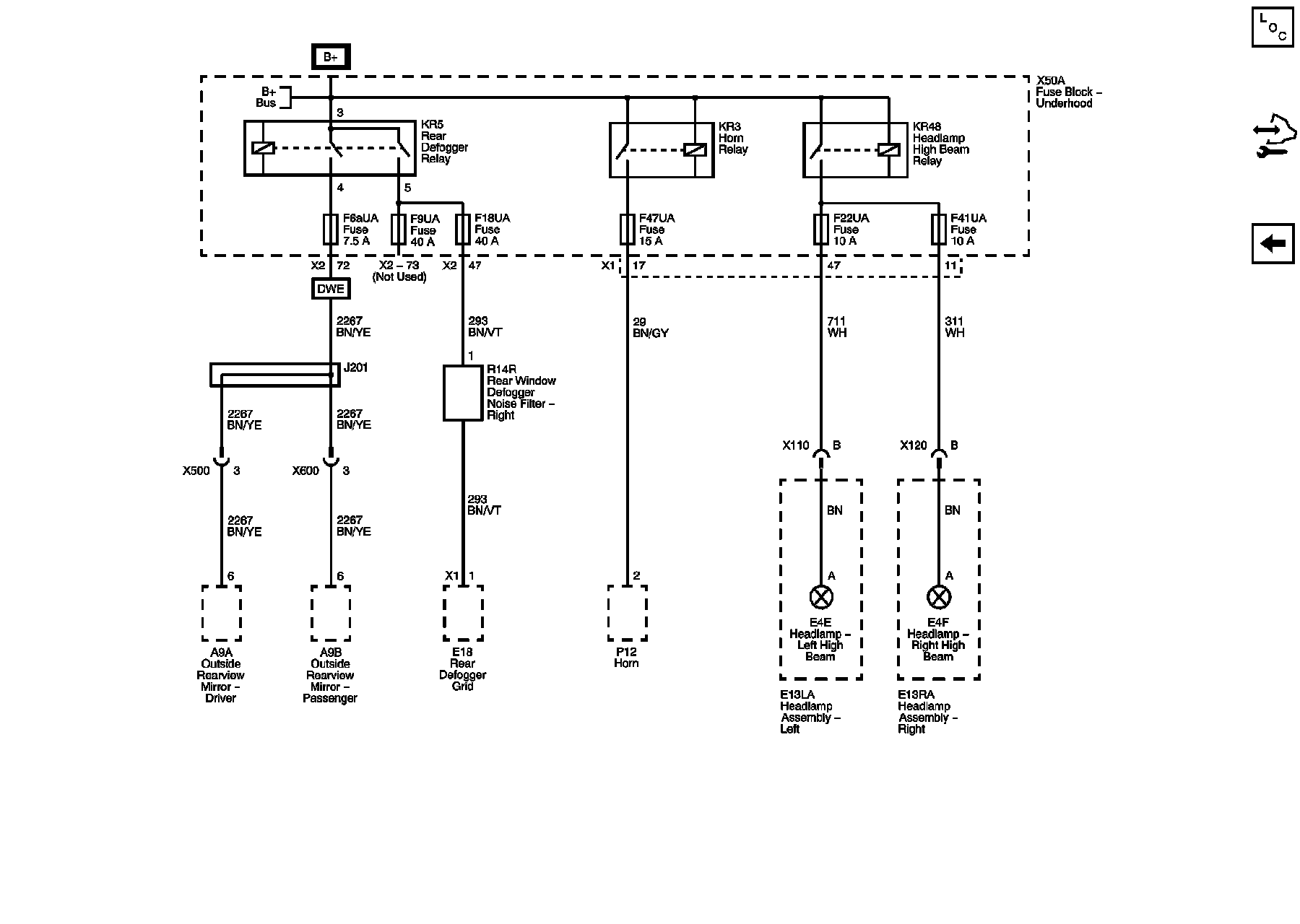

F6bUA, F9UA, F18UA, F22UA, F37UA, F41UA, and F47UA Fuses
F1UA, F3UA, F4UA, F7UA, and F8UA Fuses
F6bUA, F9UA, F18UA, F22UA, F37UA, F41UA, and F47UA Fuses
F5UA, F32UA, F50UA, F51UA, F52UA, F53UA, and F54UA Fuses
