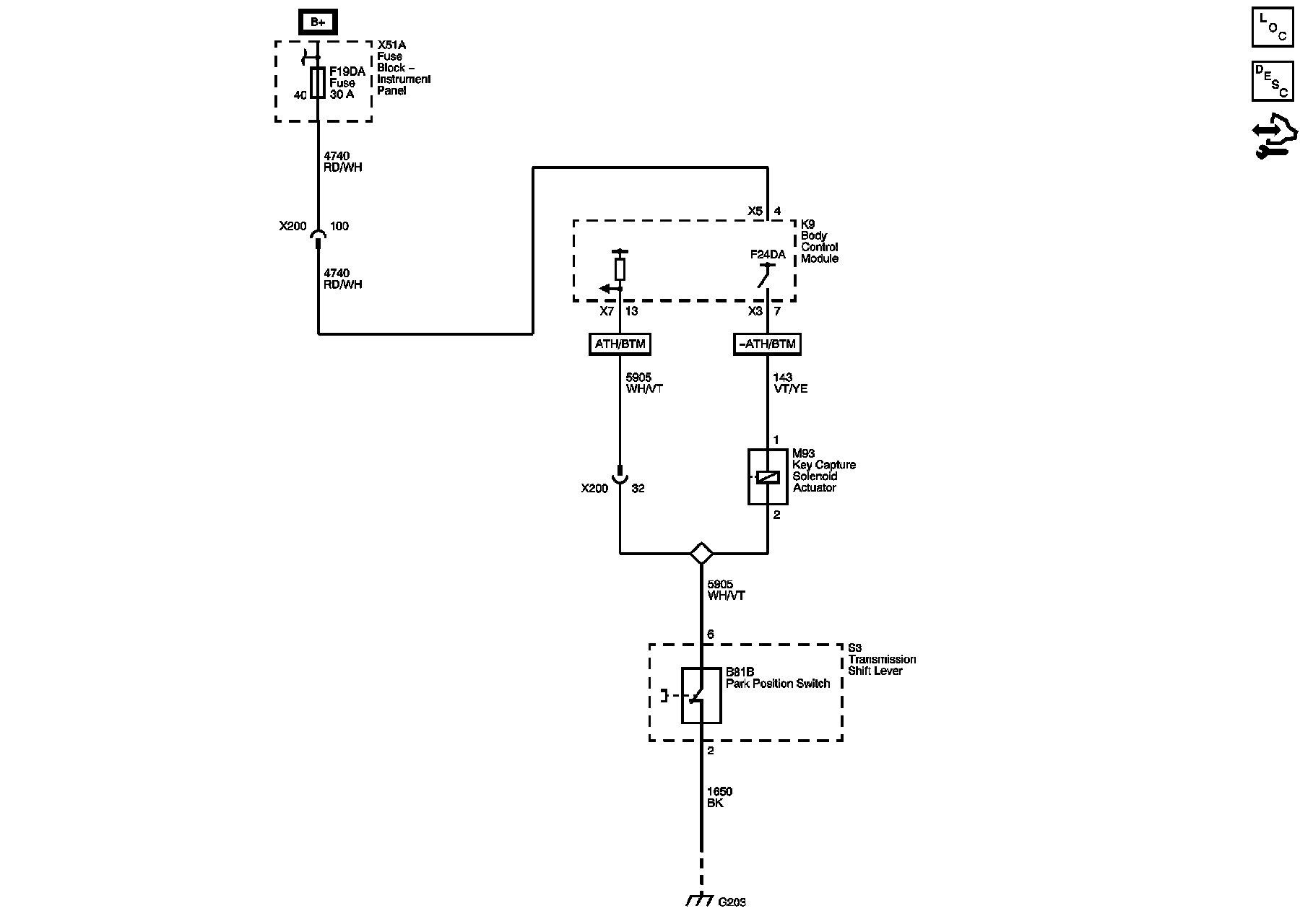

Ignition Lock Schematics




Ignition Lock Schematics

Ignition Lock





Electronic Park Lock Description and Operation
