Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

Controls, and Steering Wheel, Instrument Panel and Center Console Switches

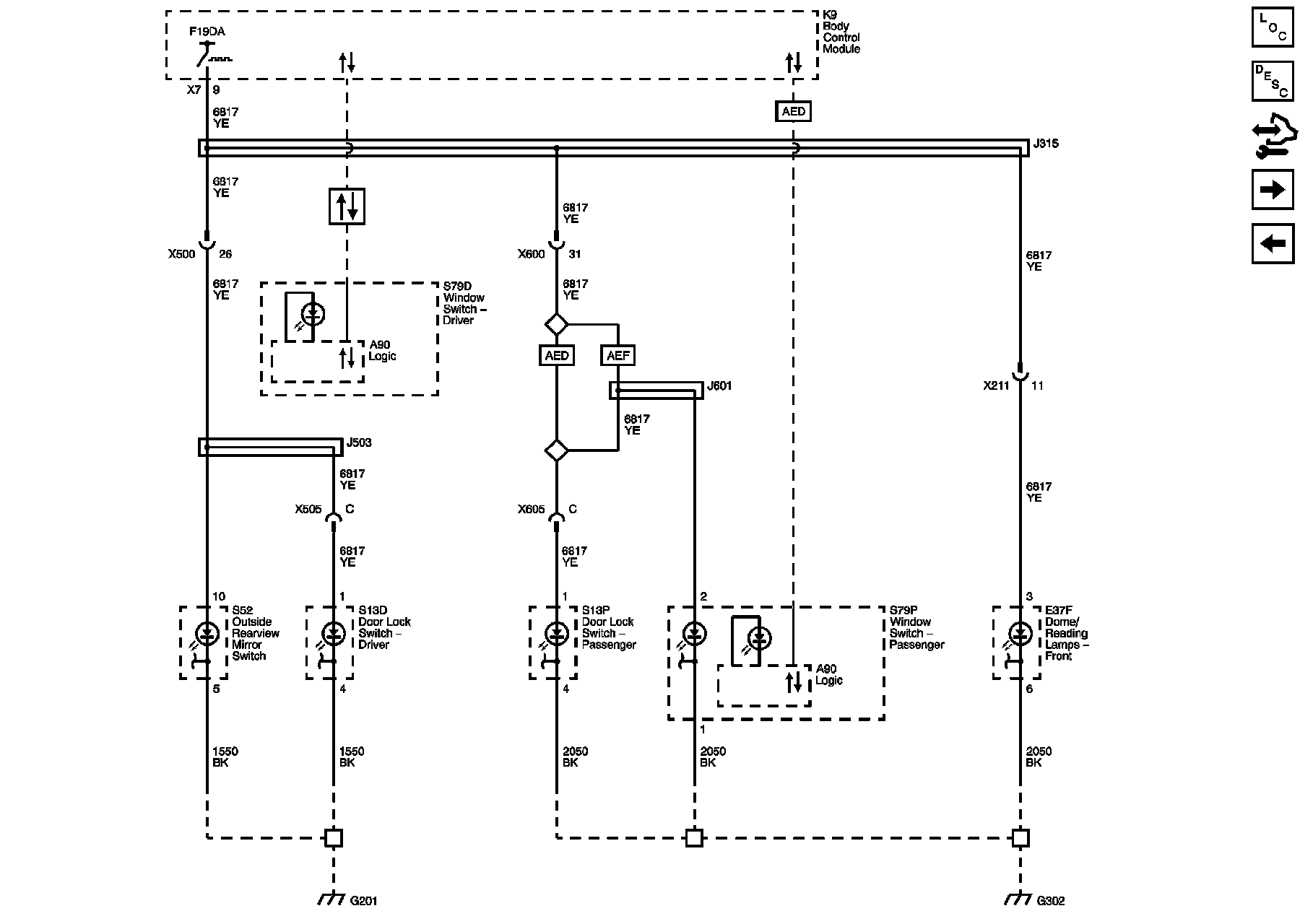

Front Door and Roof Switches

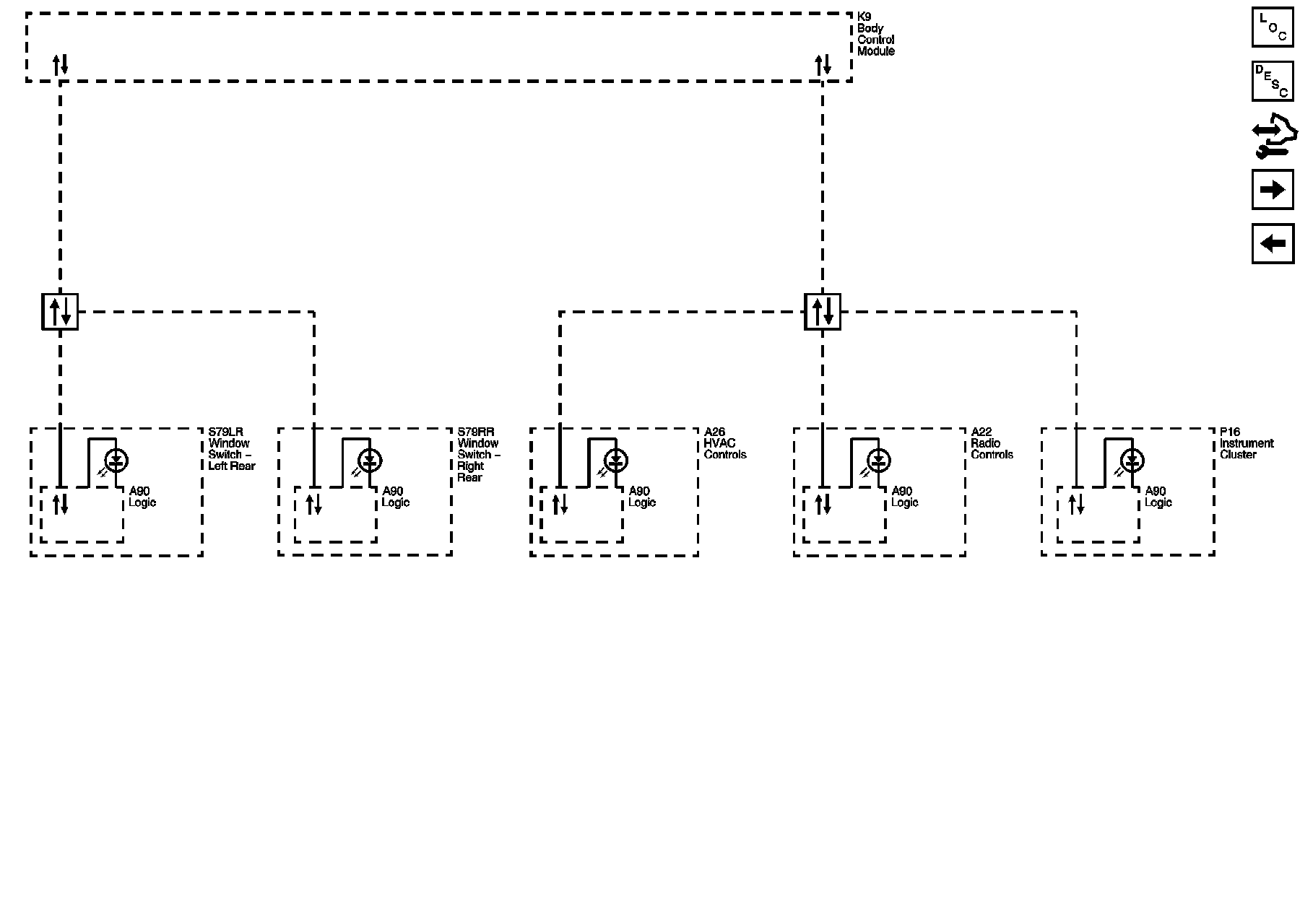

Rear Doors, Instrument Cluster, Radio and HVAC Controls

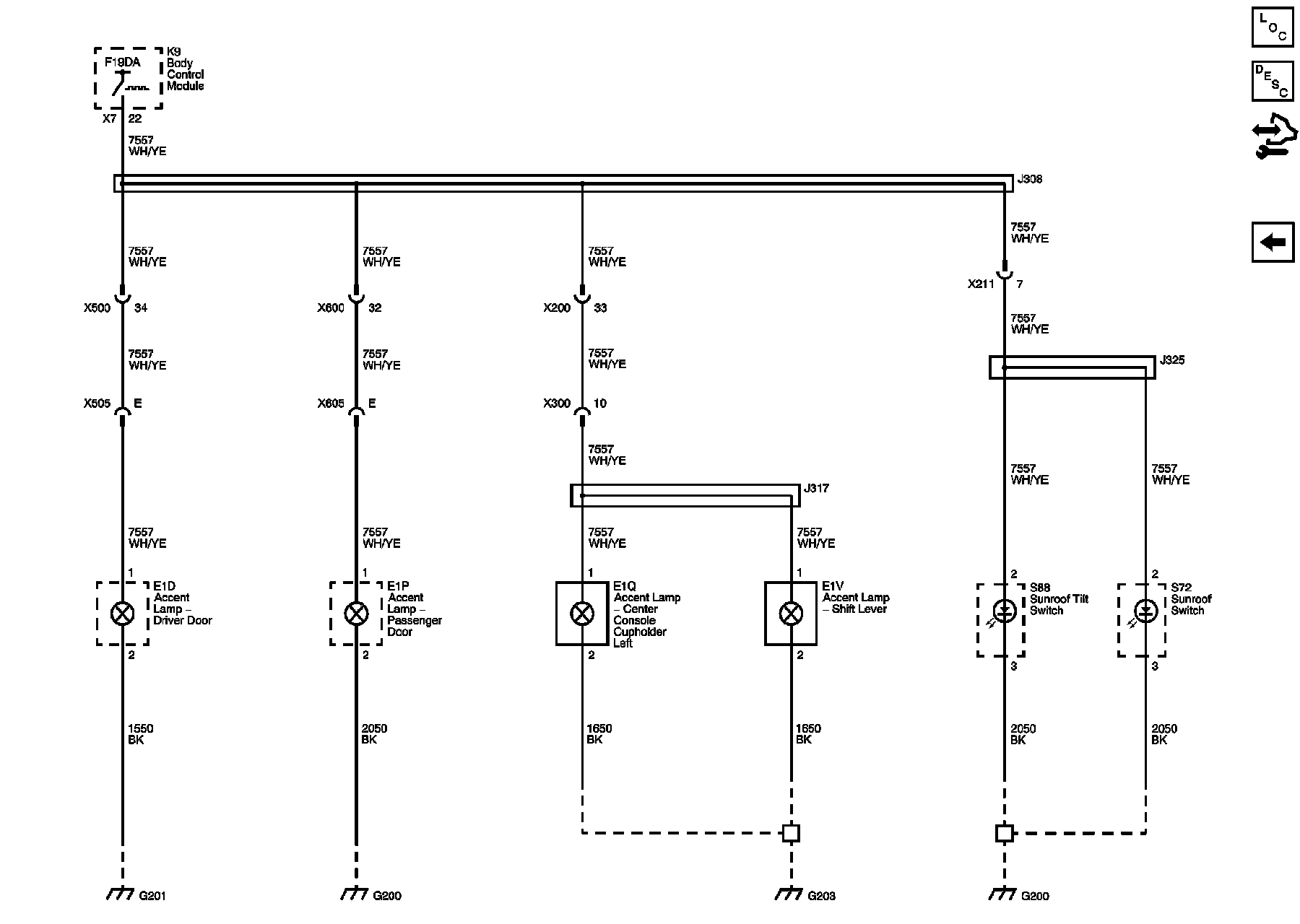

Accent Lamps
