FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Verano L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System
Engine Heating/Cooling Schematics

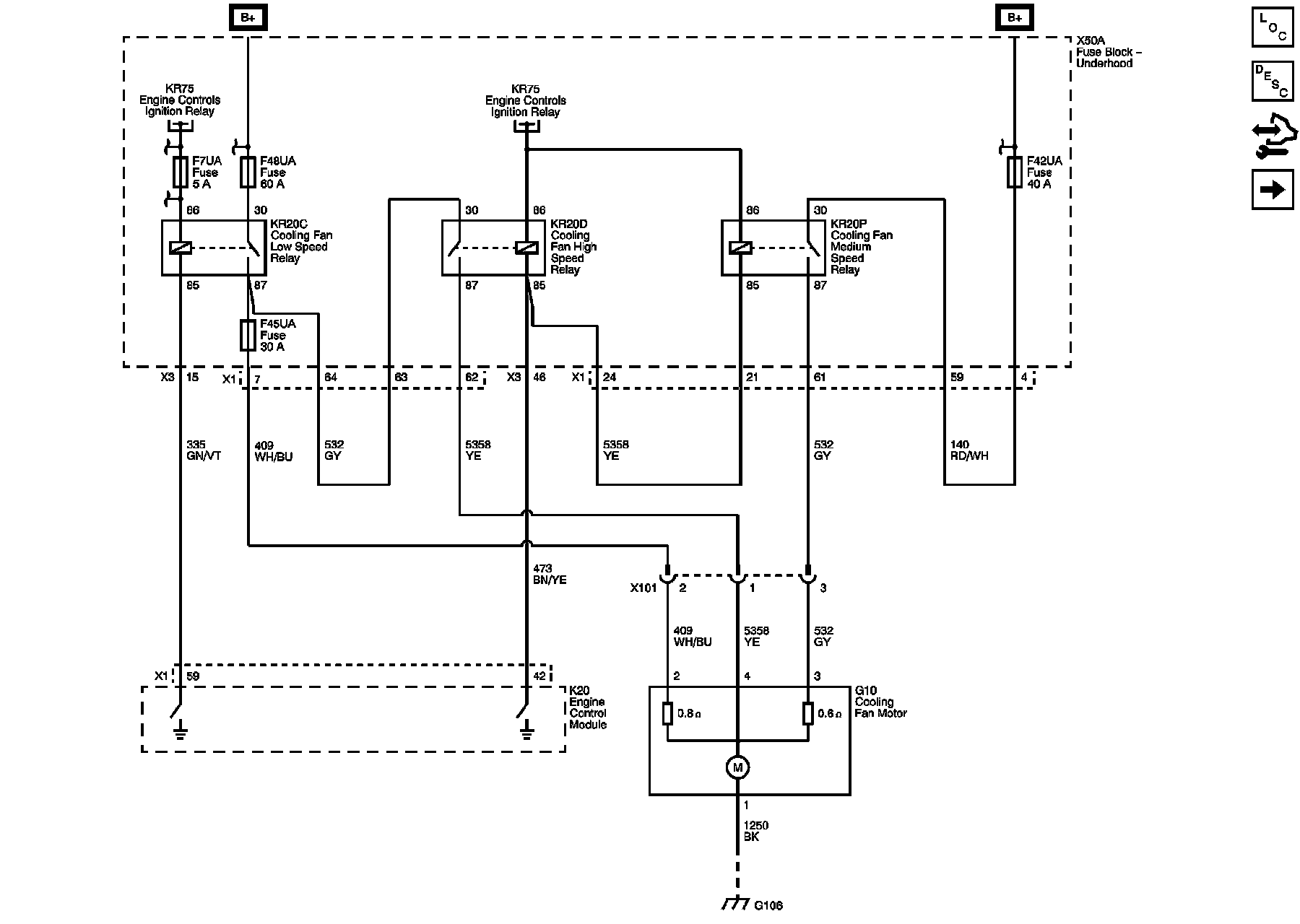

Cooling Fan
Cooling Fan Description and Operation

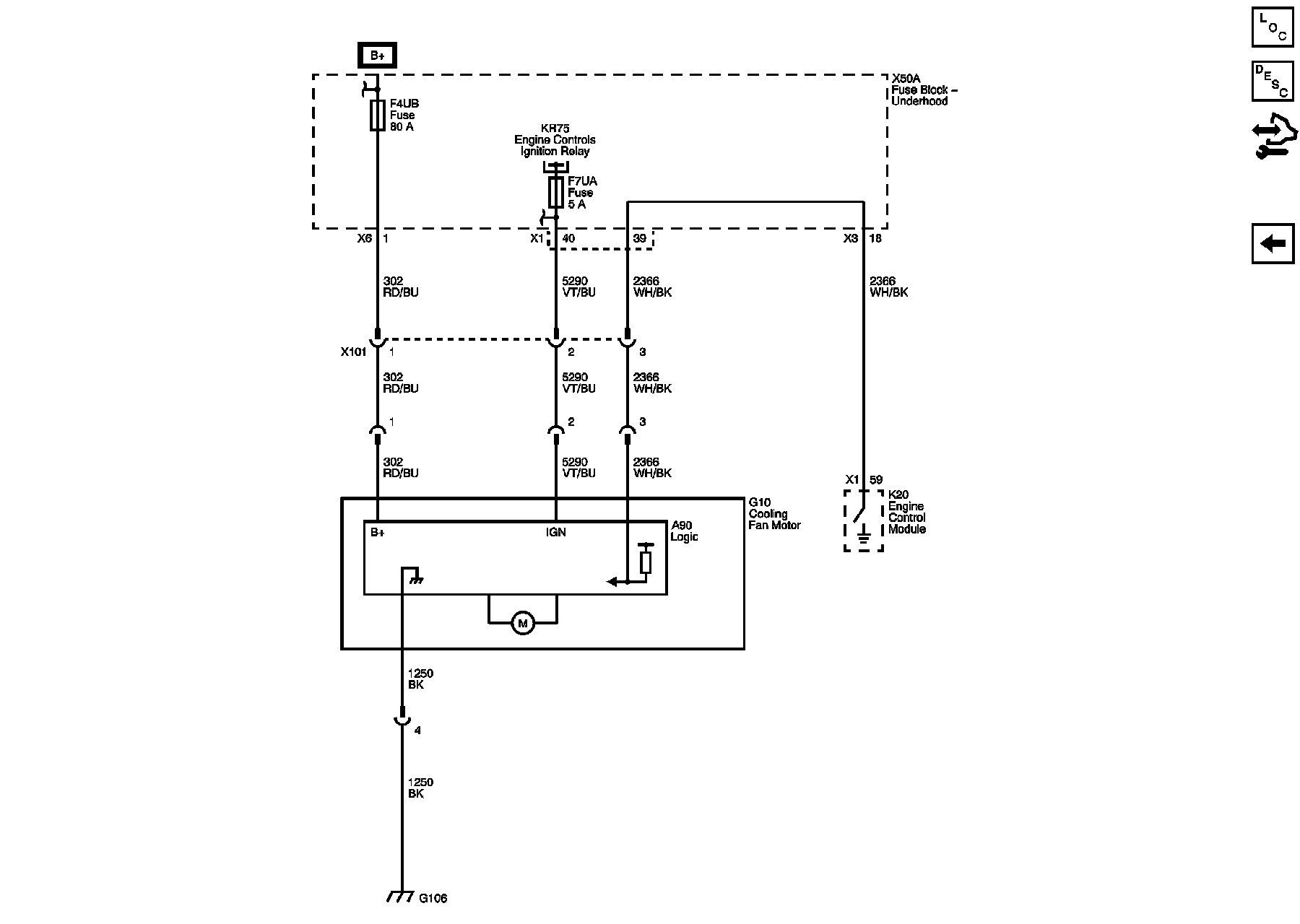

Cooling Fan (LHU)
