Trunk / Liftgate Latch
Trunk / Liftgate Latch

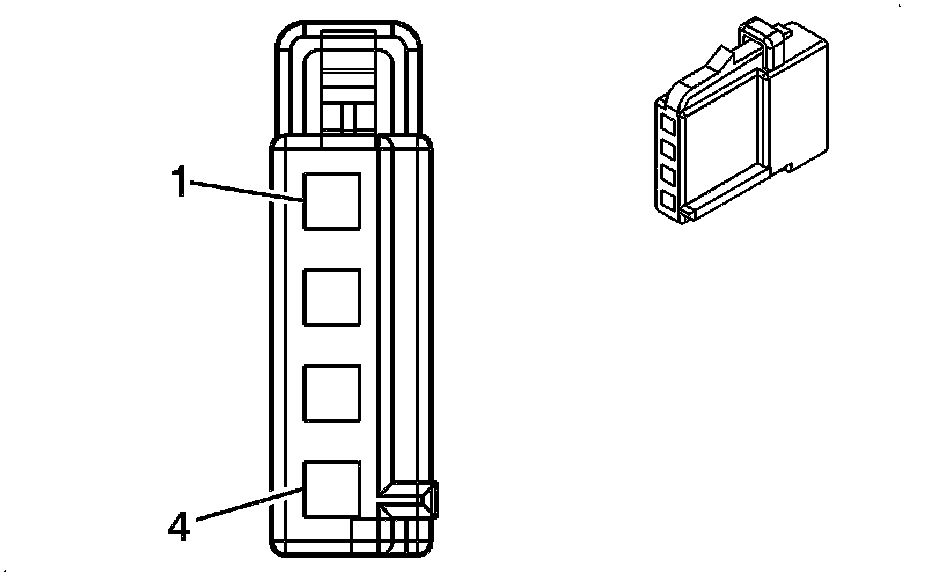

Component Connector End Views

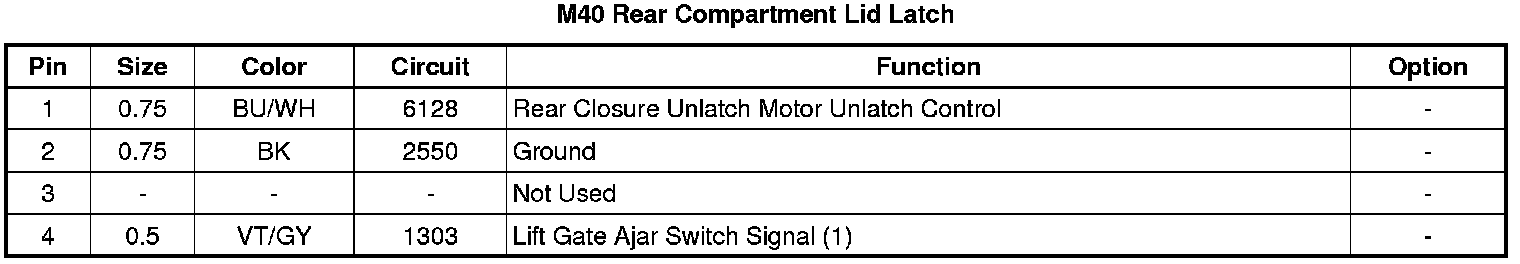

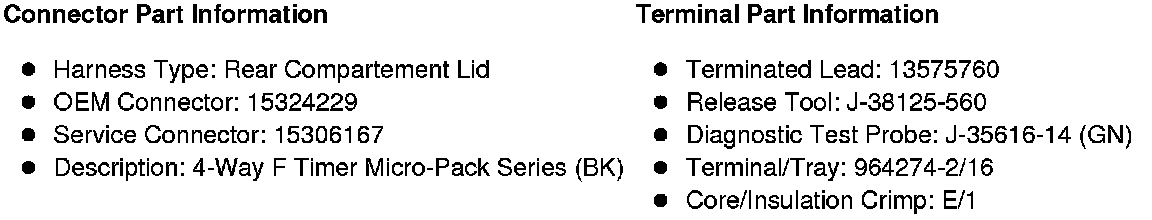

M40 Rear Compartment Lid Latch
