Seat Heating Control Module X2 (KA1)

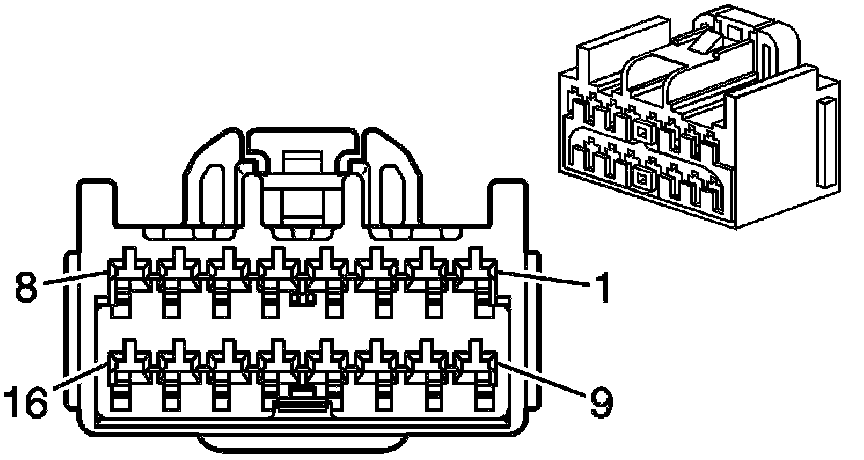

Component Connector End Views

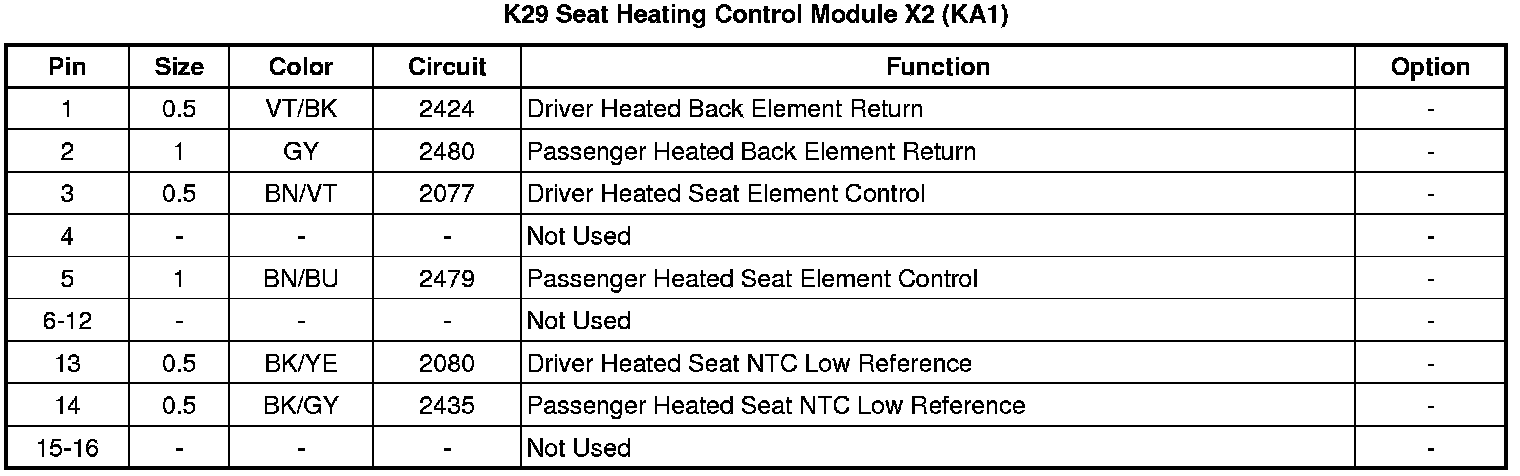

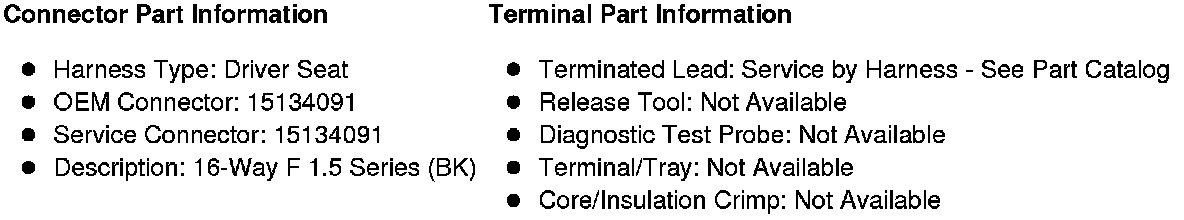

K29 Seat Heating Control Module X2 (KA1)
