Keyless Entry Control Module X3 (ATH)

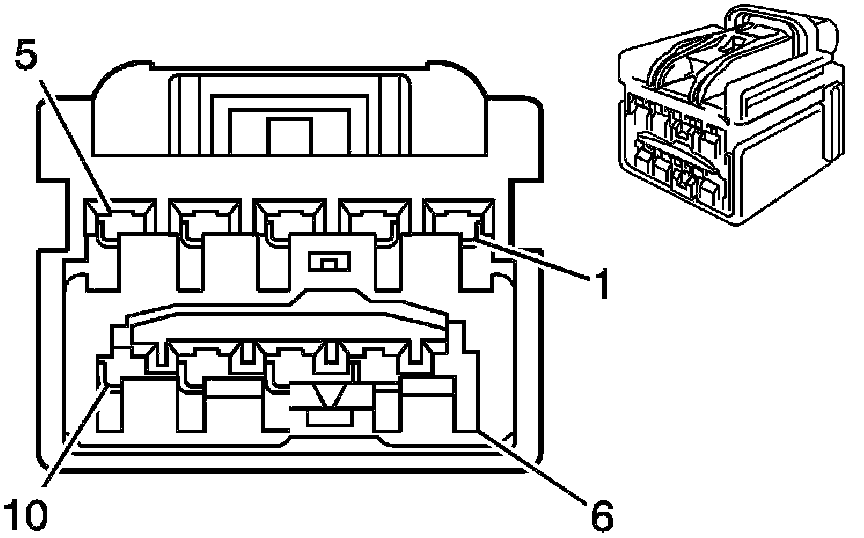

Component Connector End Views

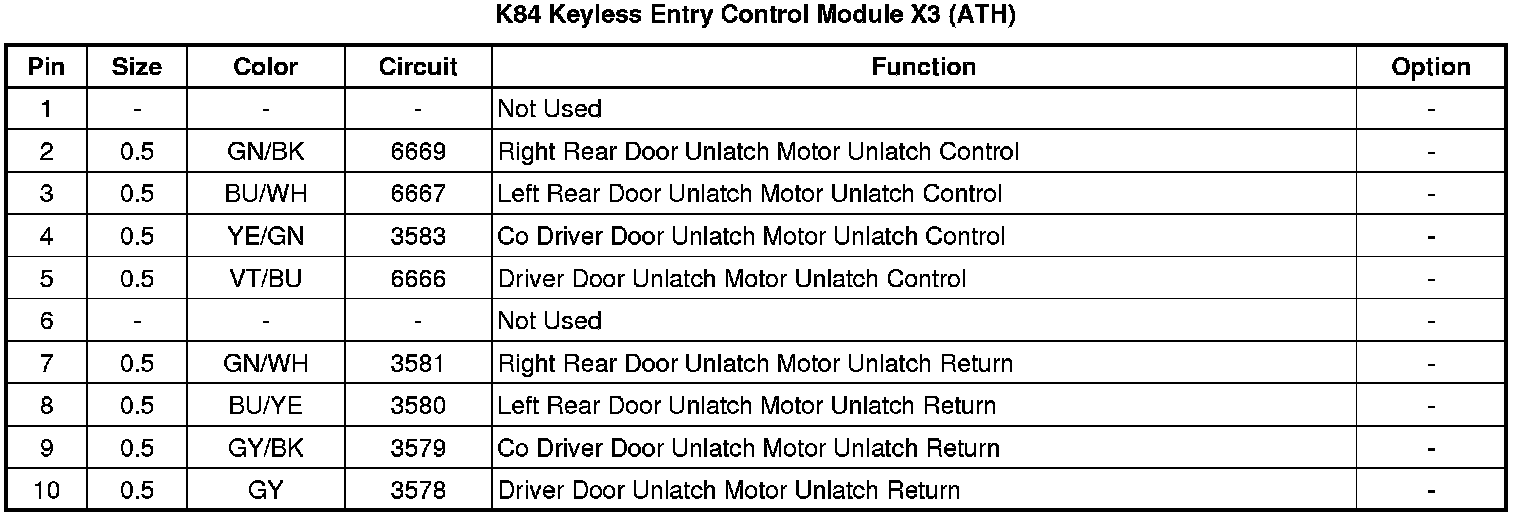

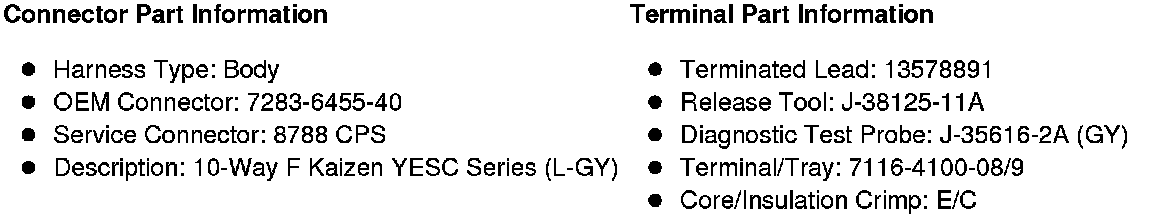

K84 Keyless Entry Control Module X3 (ATH)
