Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> Rear Parking Assist Control Module X2 (UD7)

Rear Parking Assist Control Module X2 (UD7)

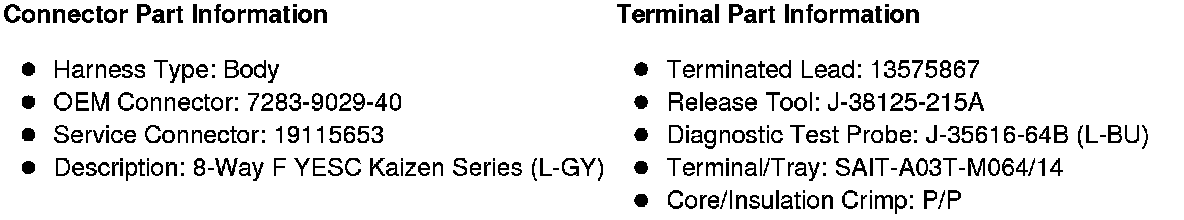

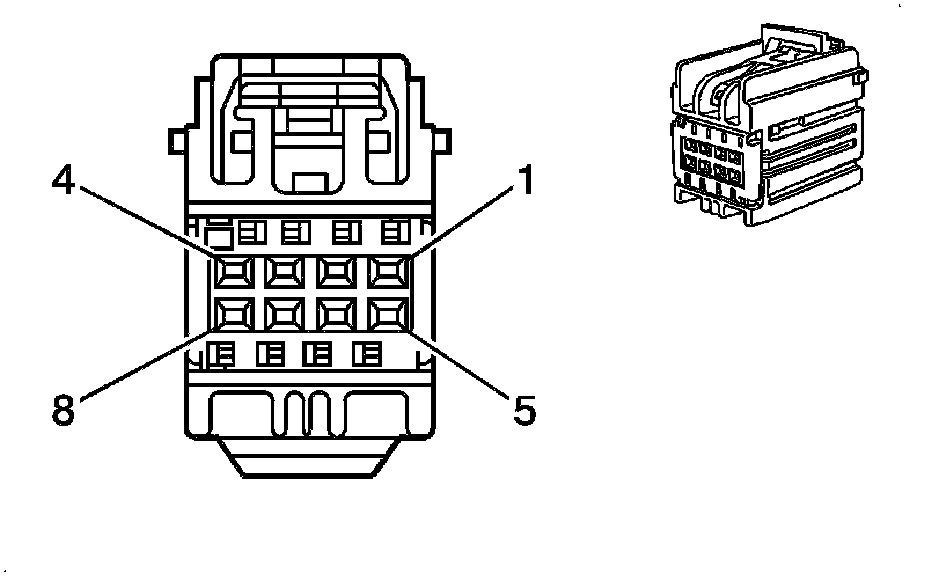

Component Connector End Views

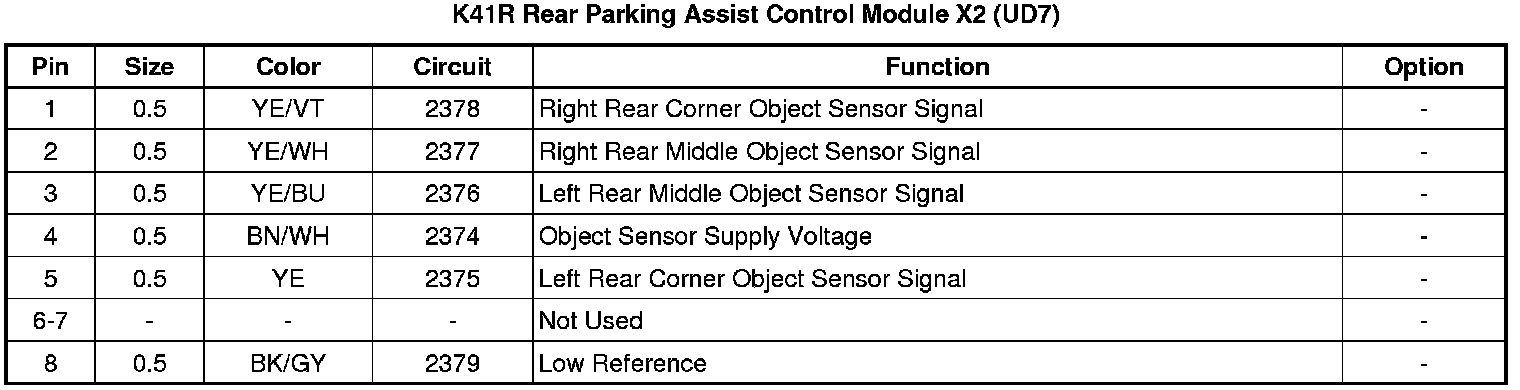

K41R Rear Parking Assist Control Module X2 (UD7)
