Rear Parking Assist Control Module X1 (UD7)

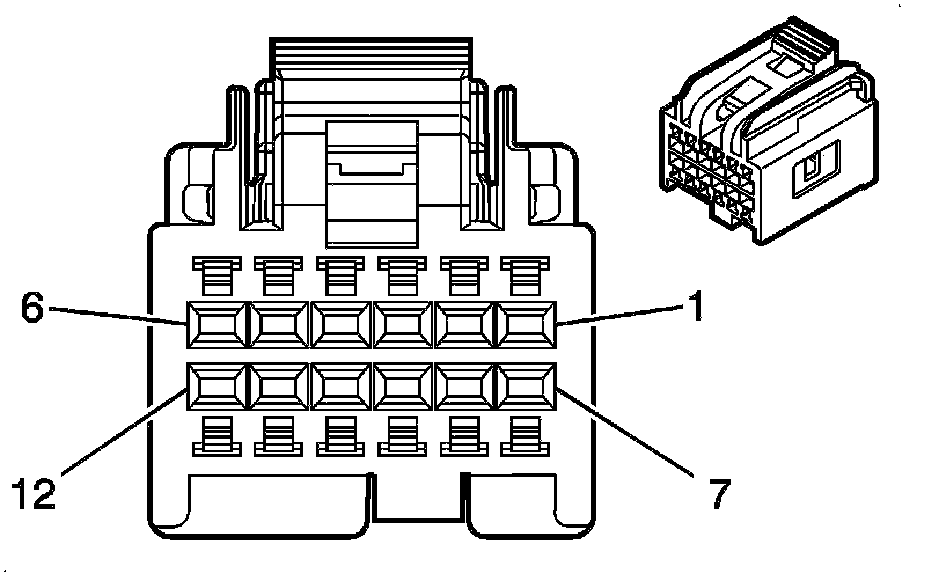

Component Connector End Views

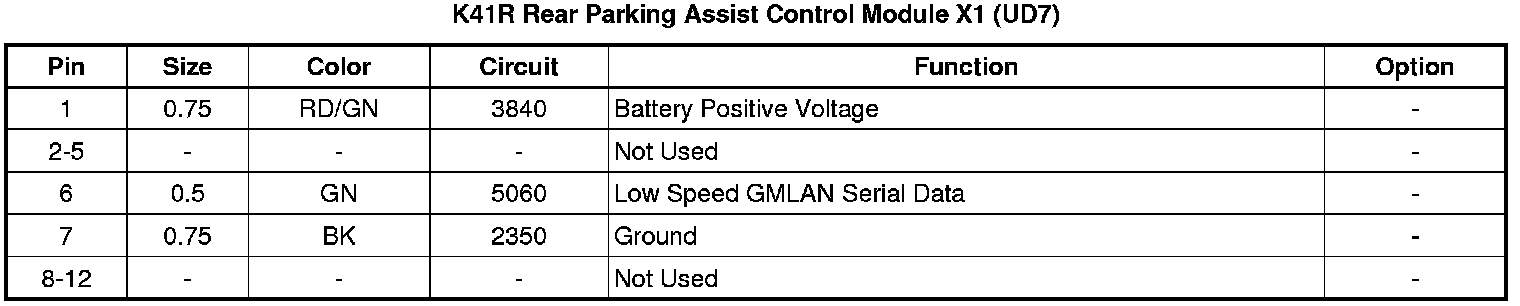

K41R Rear Parking Assist Control Module X1 (UD7)
