Parking Brake Control Module (J71)

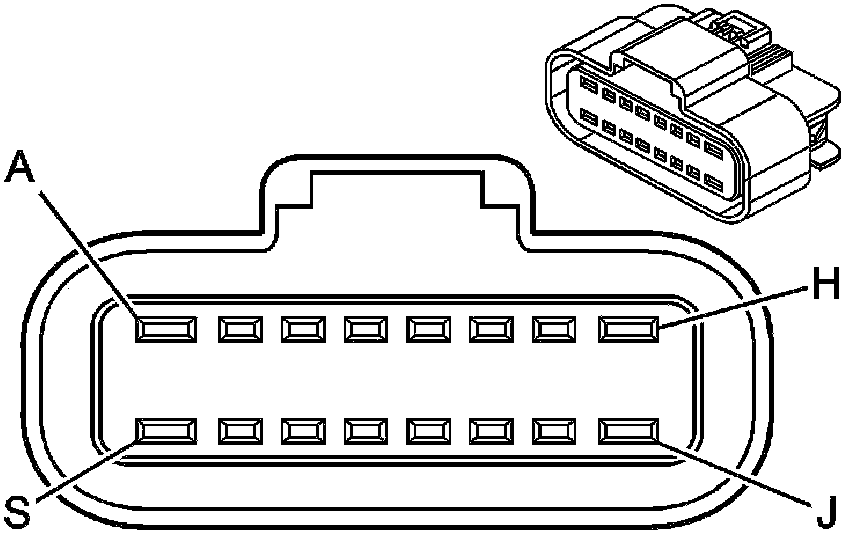

Component Connector End Views

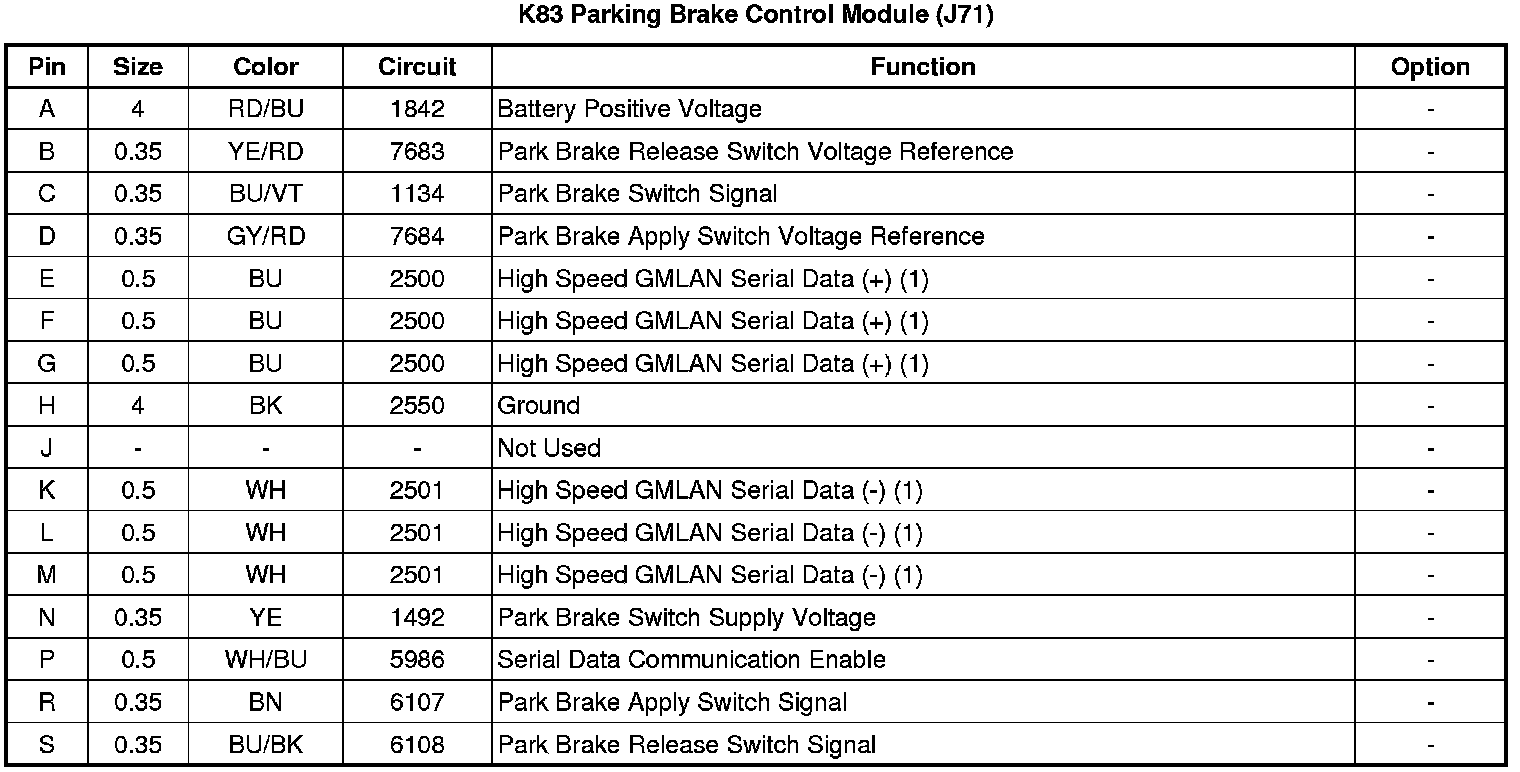

K83 Parking Brake Control Module (J71)
