Key Capture Solenoid Actuator (without BTM)
Key Capture Solenoid Actuator (without BTM)

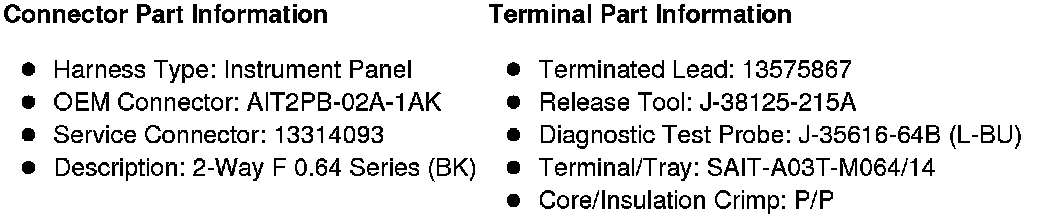

Component Connector End Views

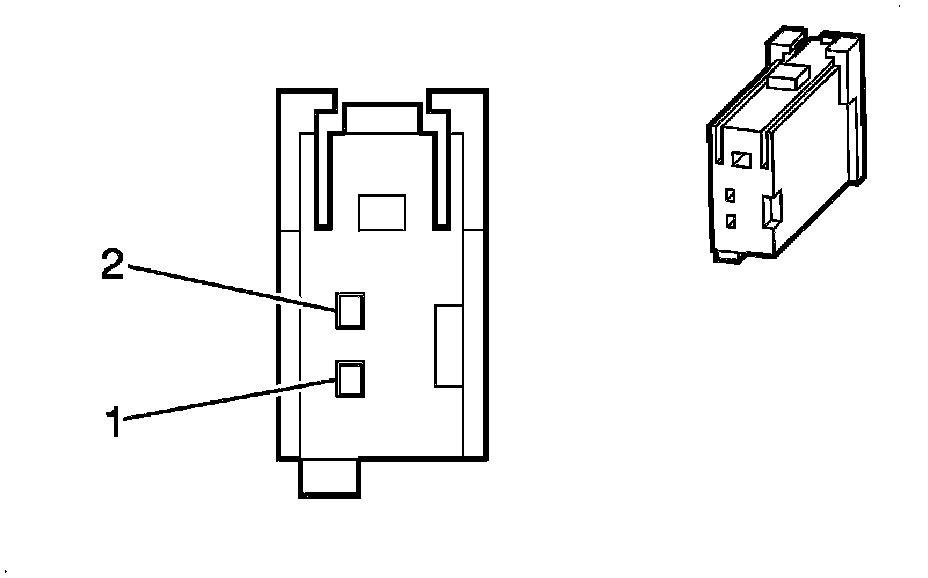

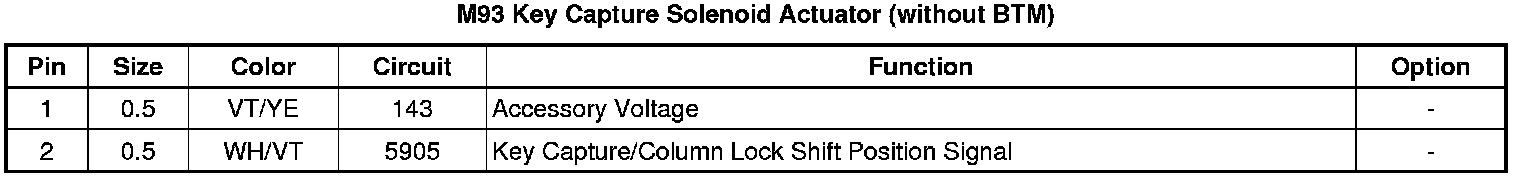

M93
Key
Capture Solenoid Actuator (without BTM)
