FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Buick
>>
2013
>>
Verano L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Front Door Handle
>>
System Diagram
>>
Door Handle Assembly - Driver Exterior (ATH)
Door Handle Assembly - Driver Exterior (ATH)

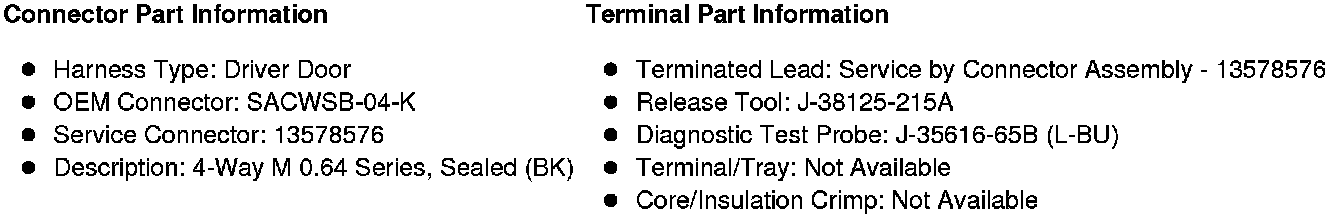

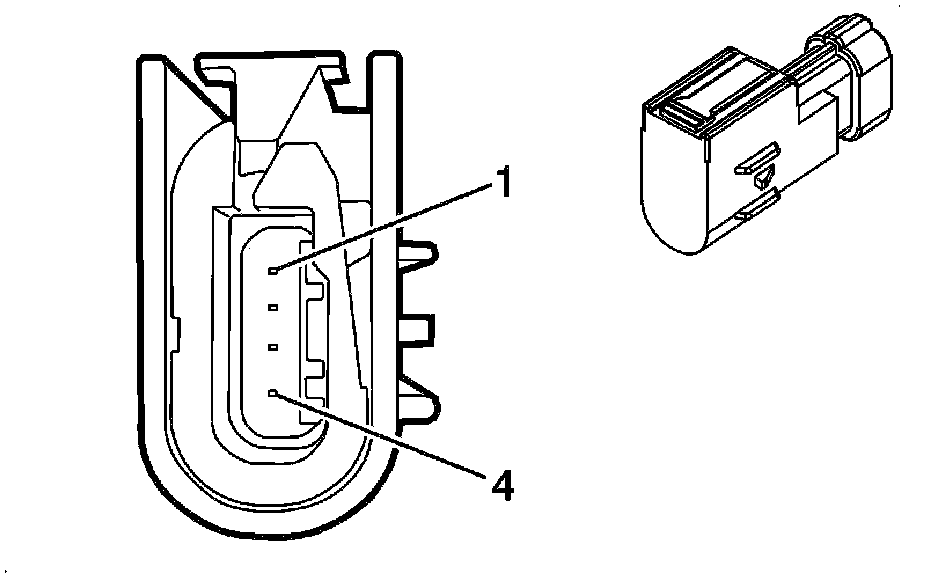

Component Connector End Views

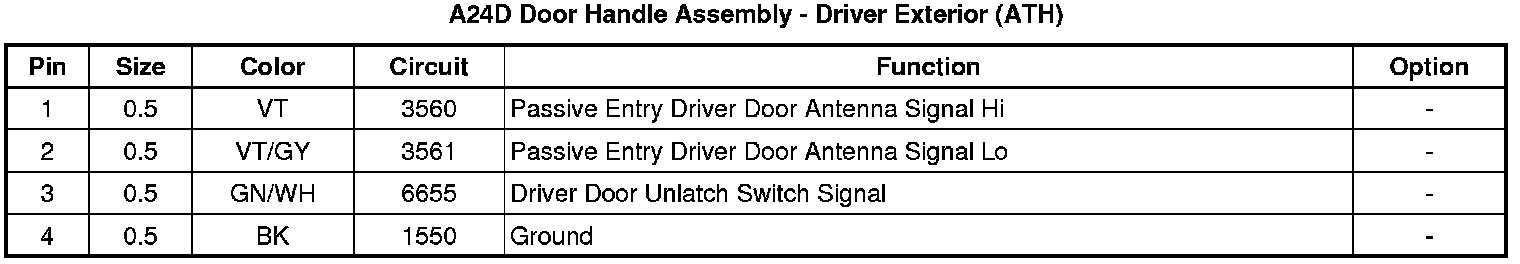

A24D Door Handle Assembly - Driver Exterior (ATH)
