Inflatable Restraint Sensing and Diagnostic Module X2

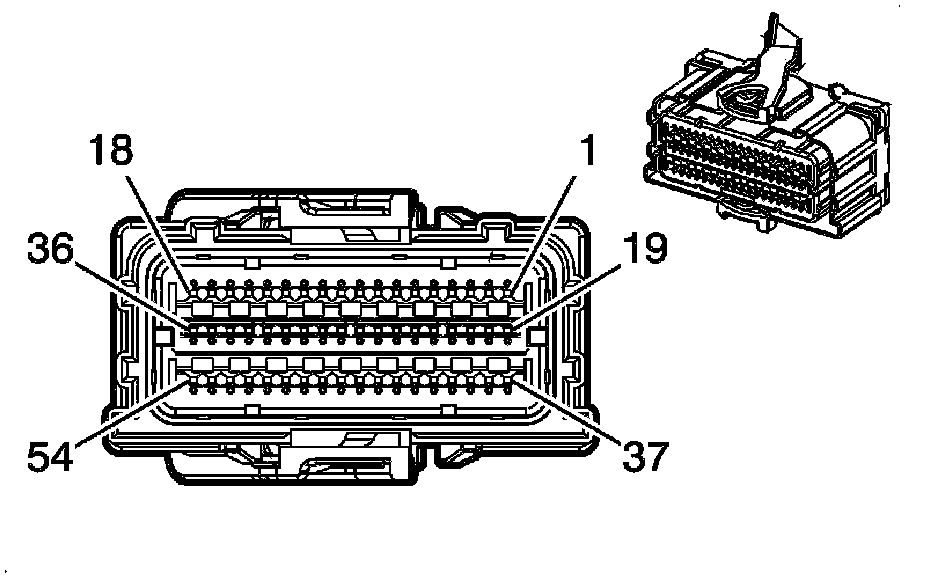

Component Connector End Views

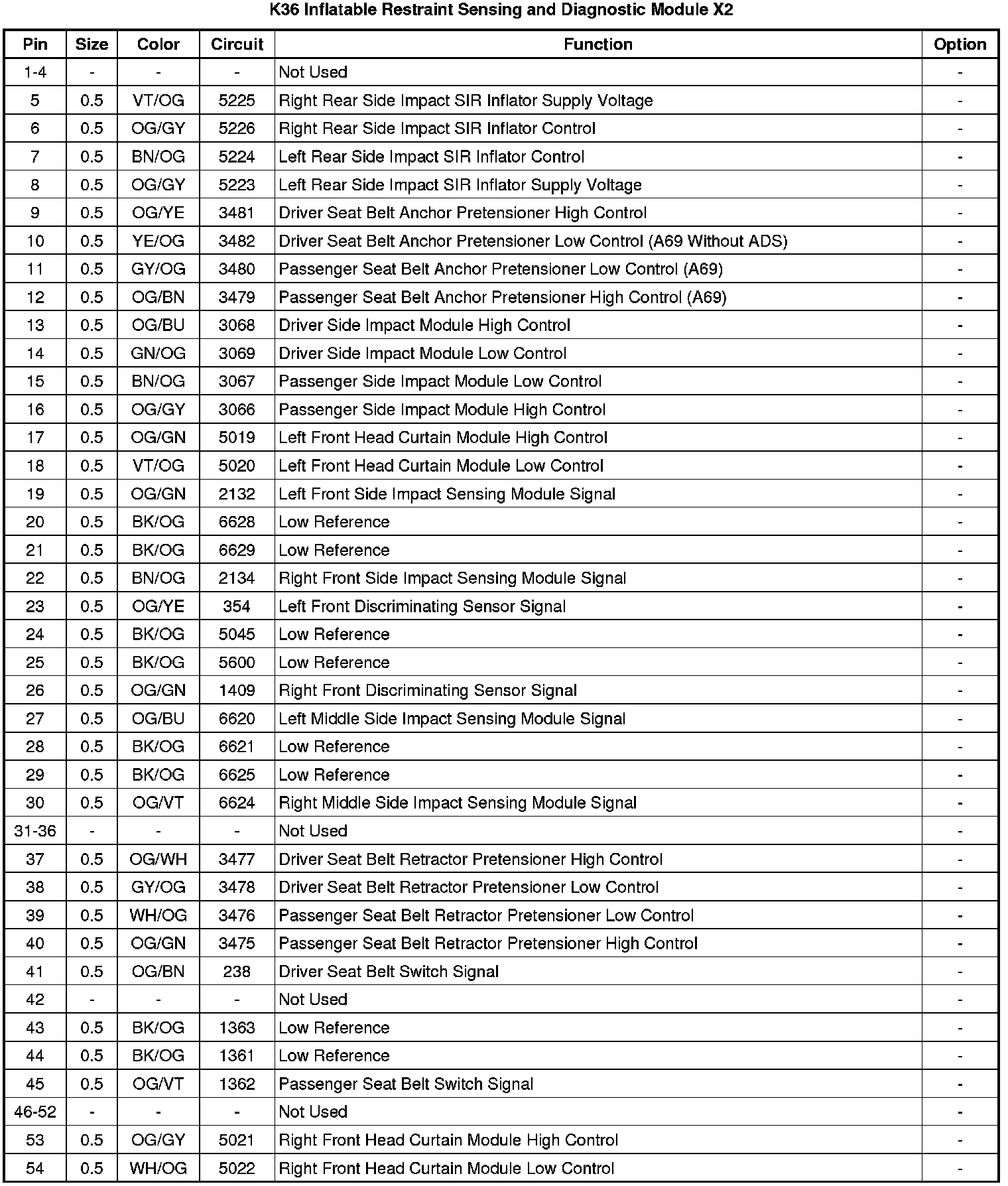

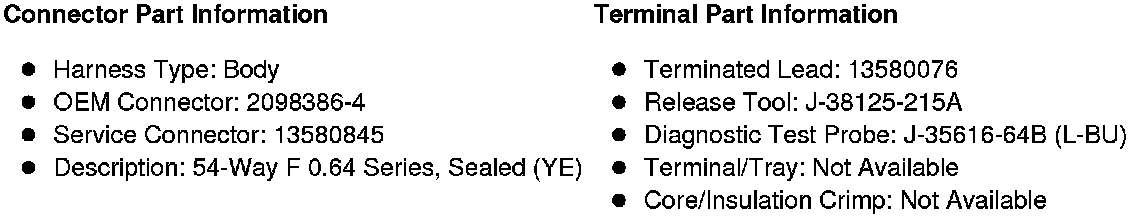

K36 Inflatable Restraint Sensing and Diagnostic Module X2
