Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Sensors and Switches - Body and Frame >> Hood Switch / Sensor >> Hood Ajar Switch >> Diagrams

Hood Ajar Switch: Diagrams

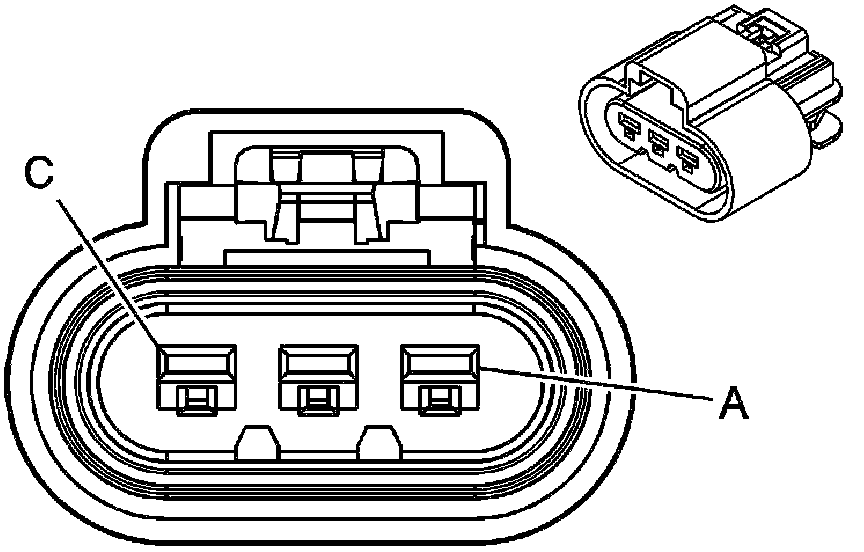

Component Connector End Views

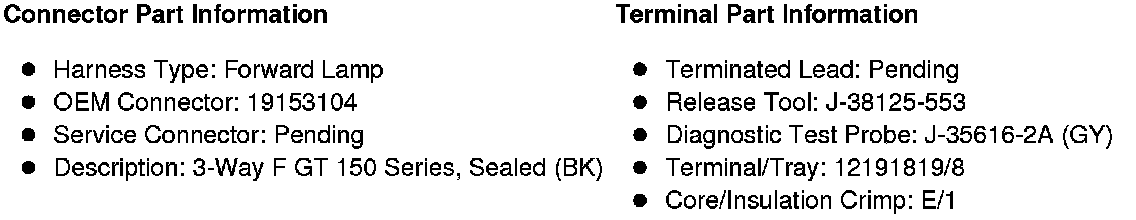

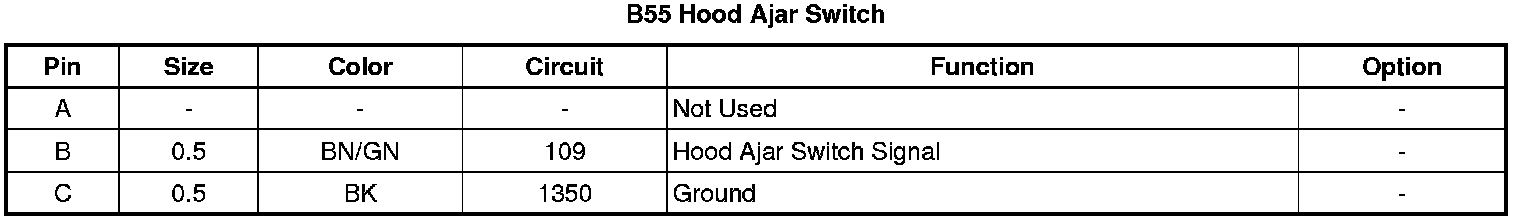

B55 Hood Ajar Switch
