Door Lock/Indicator Schematics




Door Lock/Indicator Schematics

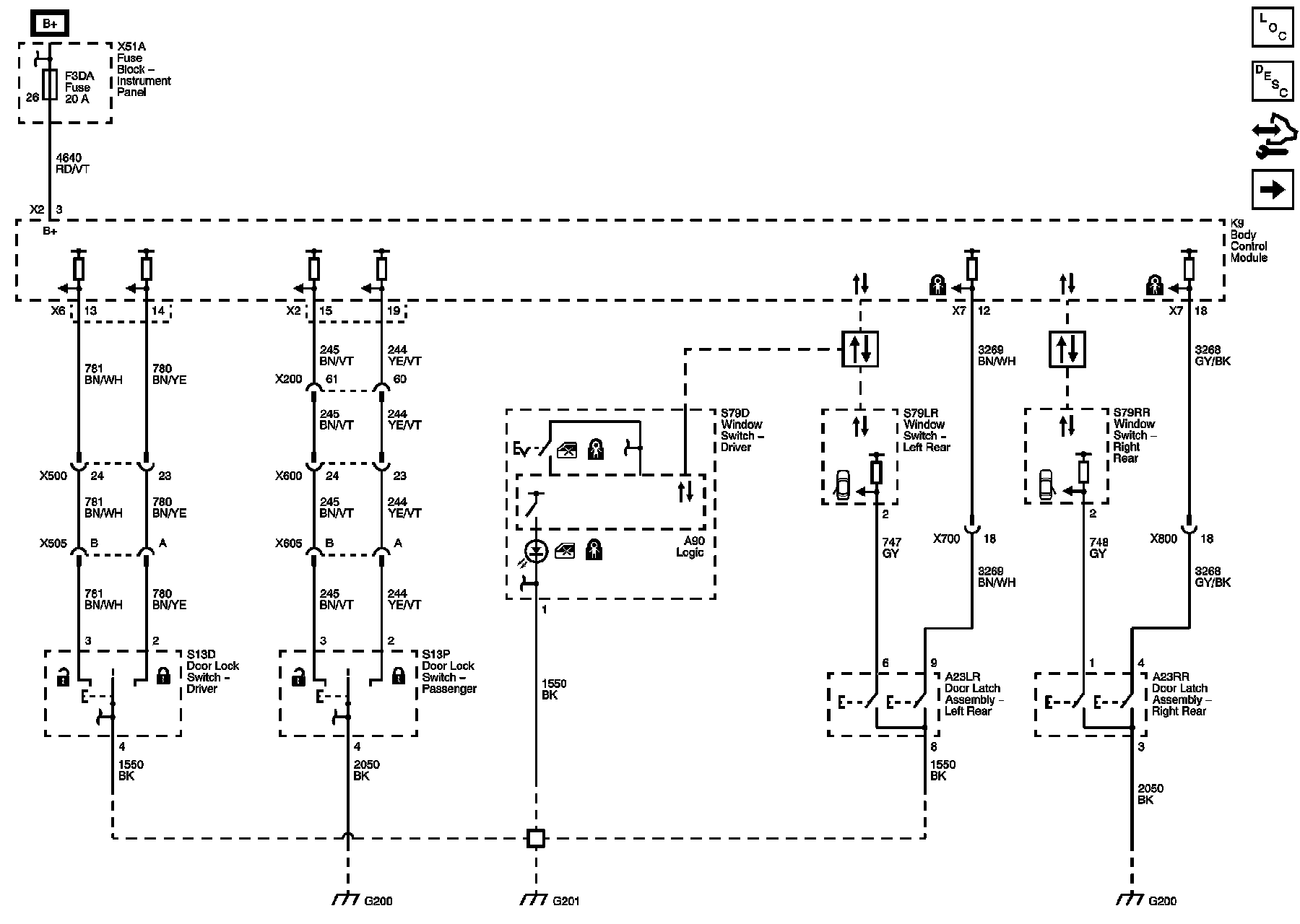

Door Lock Controls

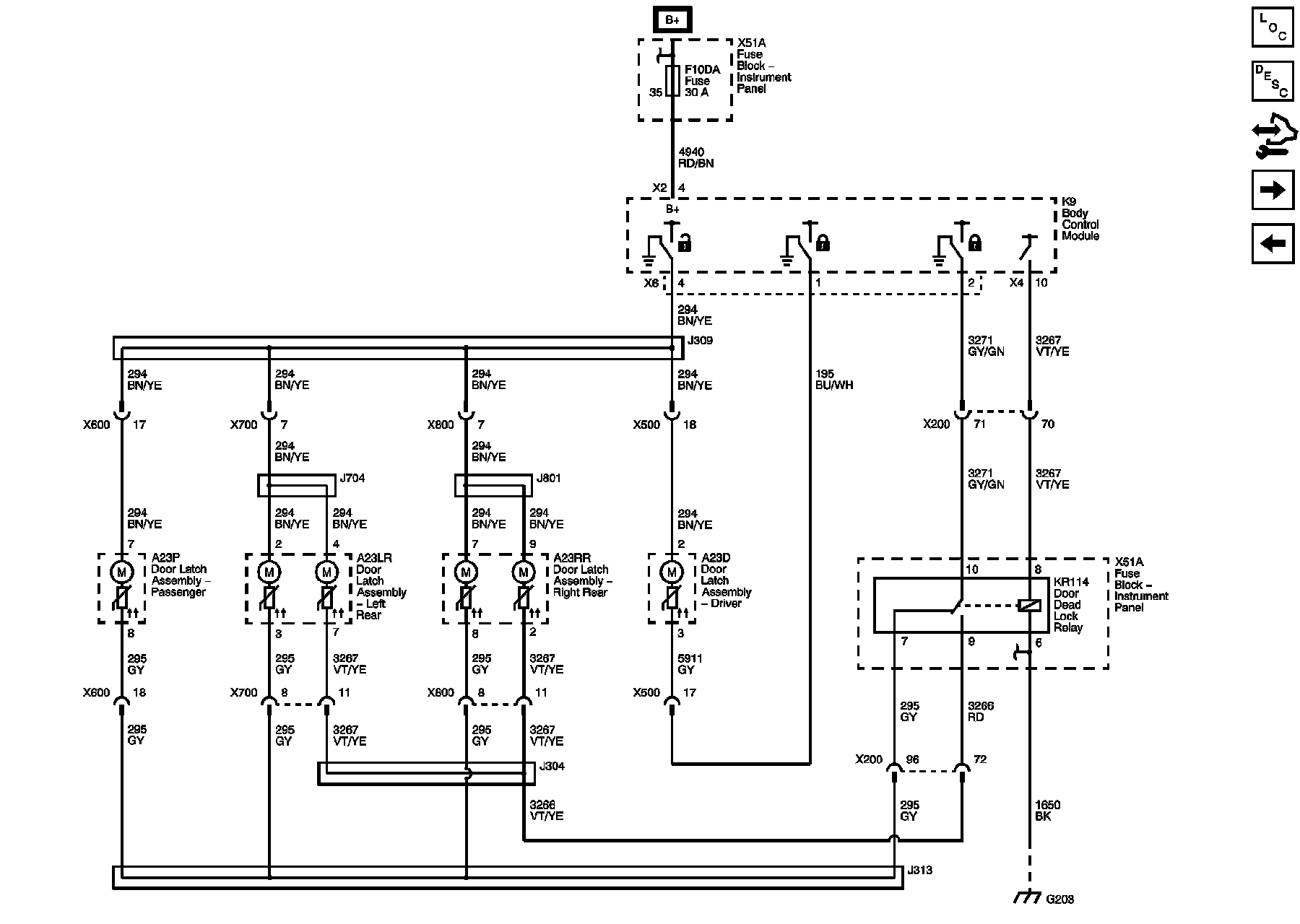

Power Door Locks

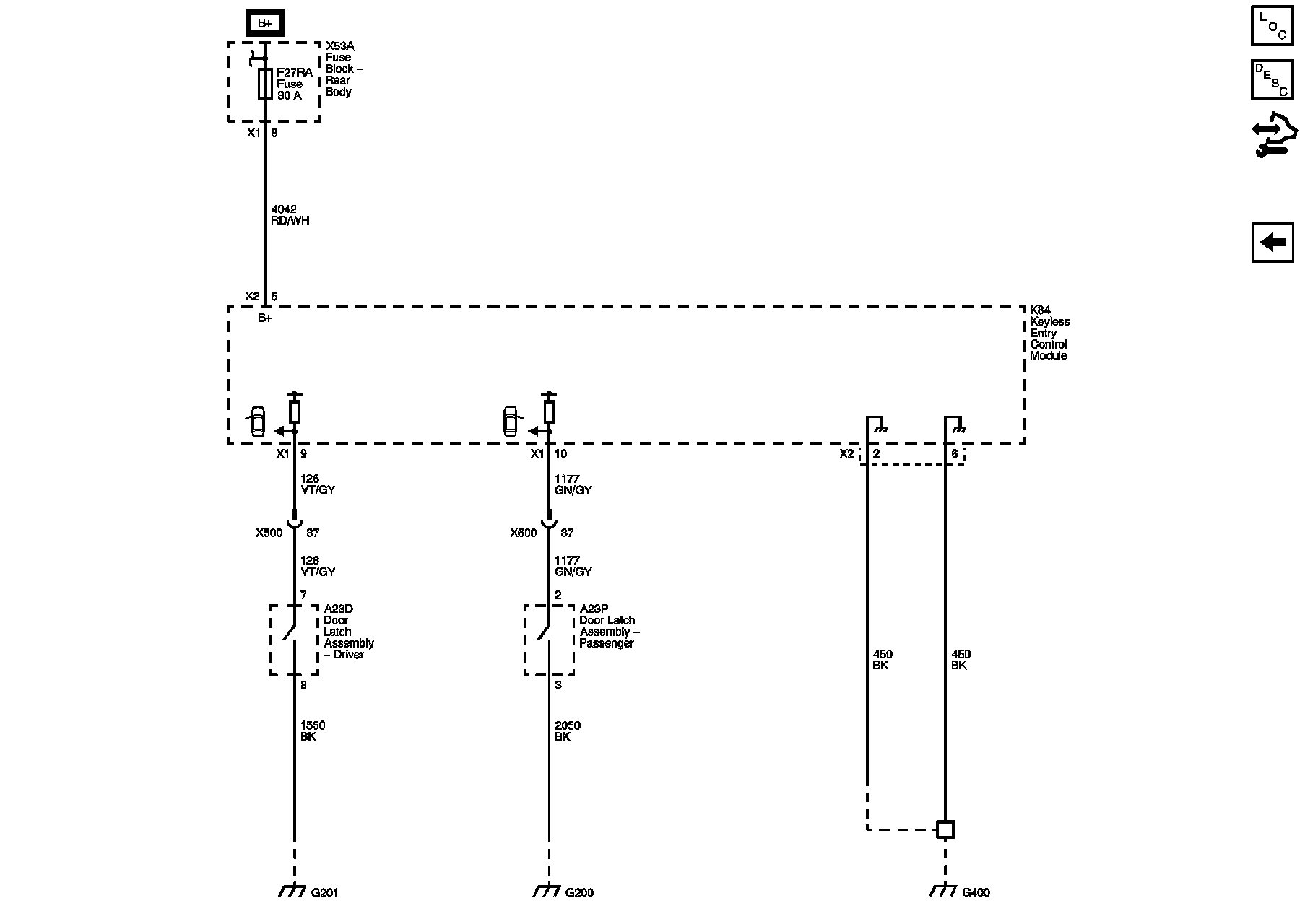

Door Lock Indicators

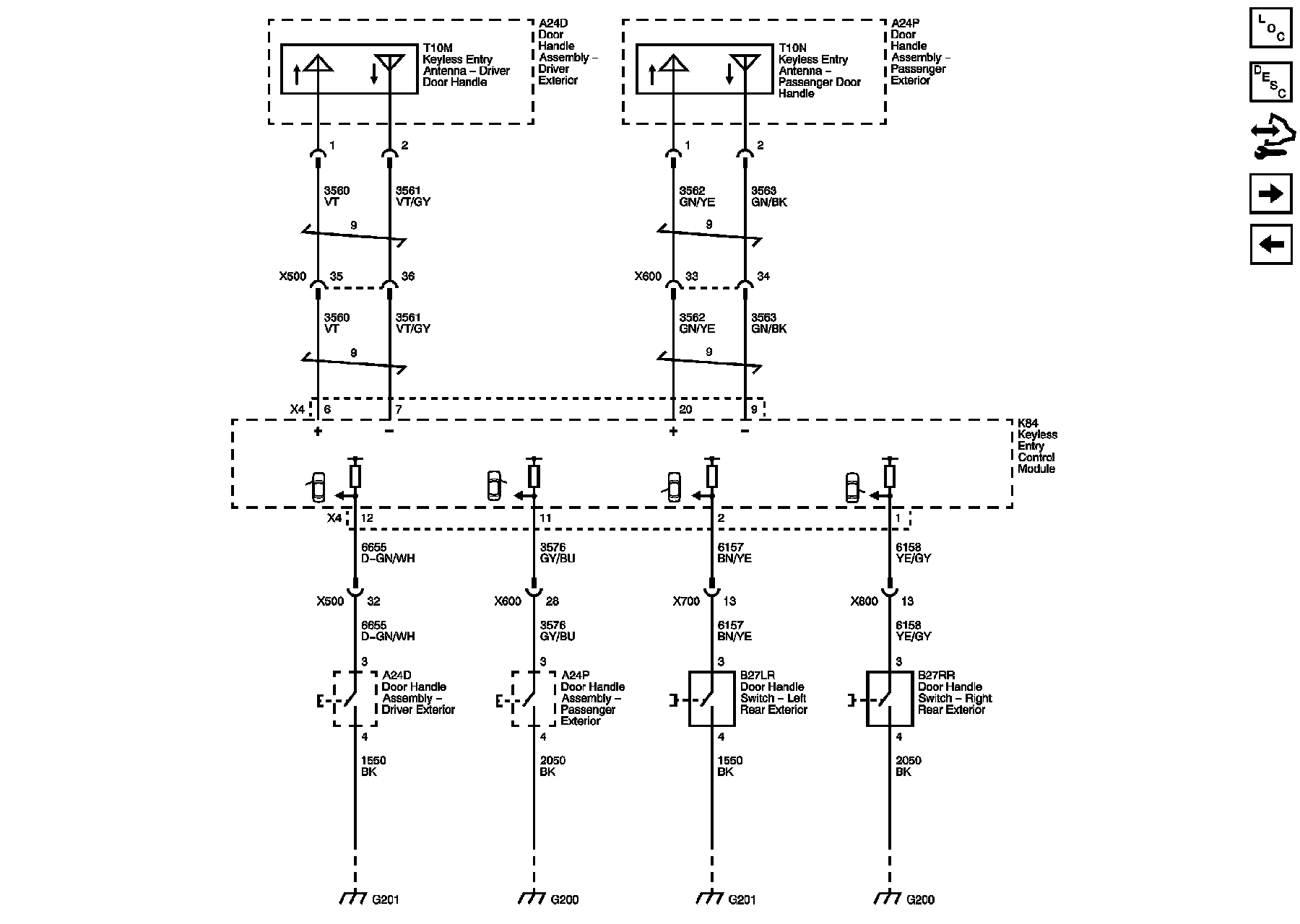

Antennas and Switches (ATH)






Passive Entry - Latches (ATH)
