Instrument Panel Lower Center Compartment Liner Replacement

Instrument Panel Lower Center Compartment Liner Replacement

Removal Procedure

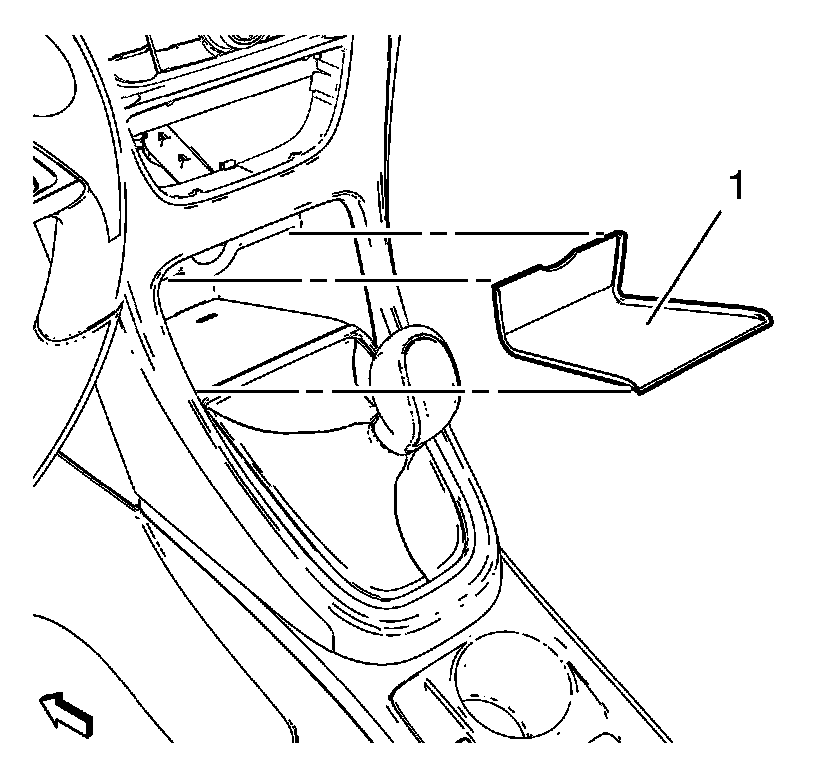

1. Remove the instrument panel lower center compartment liner mat (1).





Note:
Do not use a screwdriver for this operation (scratch risks).

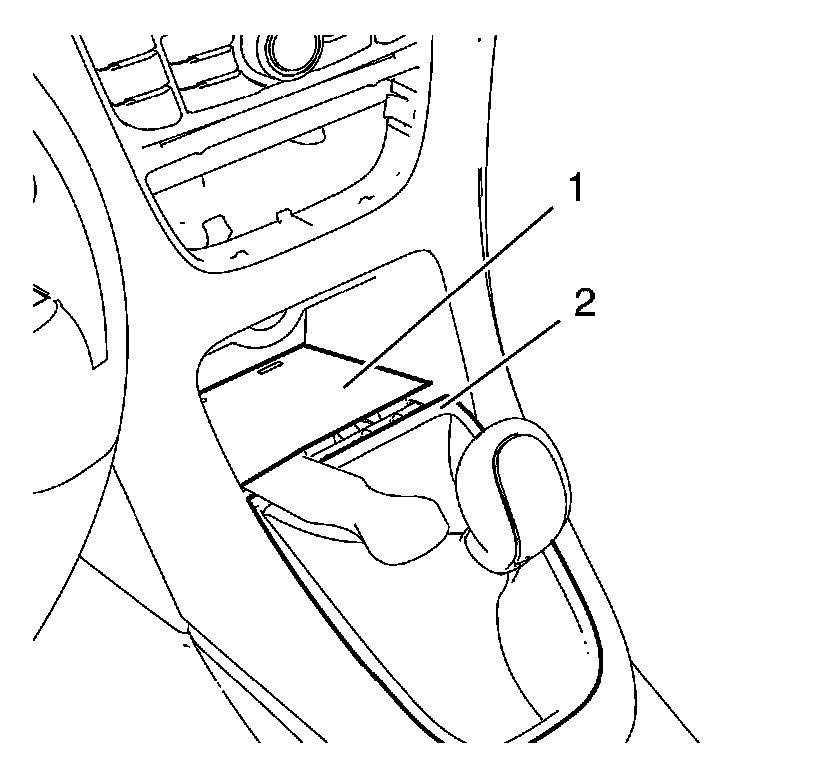

2. Remove the instrument panel lower center compartment liner (1) with suitable tool.

1. Use suitable tool between compartment liner and gear shifter cover (2).

2. Push the tool deeper under the instrument panel lower center compartment liner.

3. Pull the tool up to detach the instrument panel lower center compartment liner.

Installation Procedure





1. Install the instrument panel lower center compartment liner (1).





2. Install the instrument panel lower center compartment liner mat (1).
