Instrument Panel Instrument Cluster Hood Replacement

Instrument Panel Instrument Cluster Hood Replacement

Removal Procedure

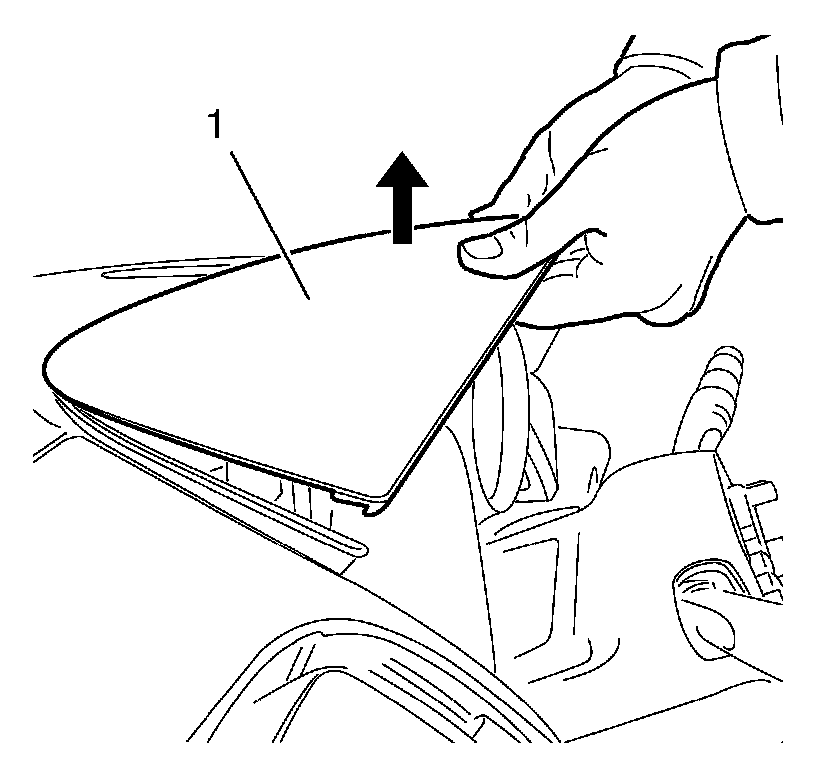

1. Detach the instrument panel instrument cluster hood (1) with both hands in the direction shown.

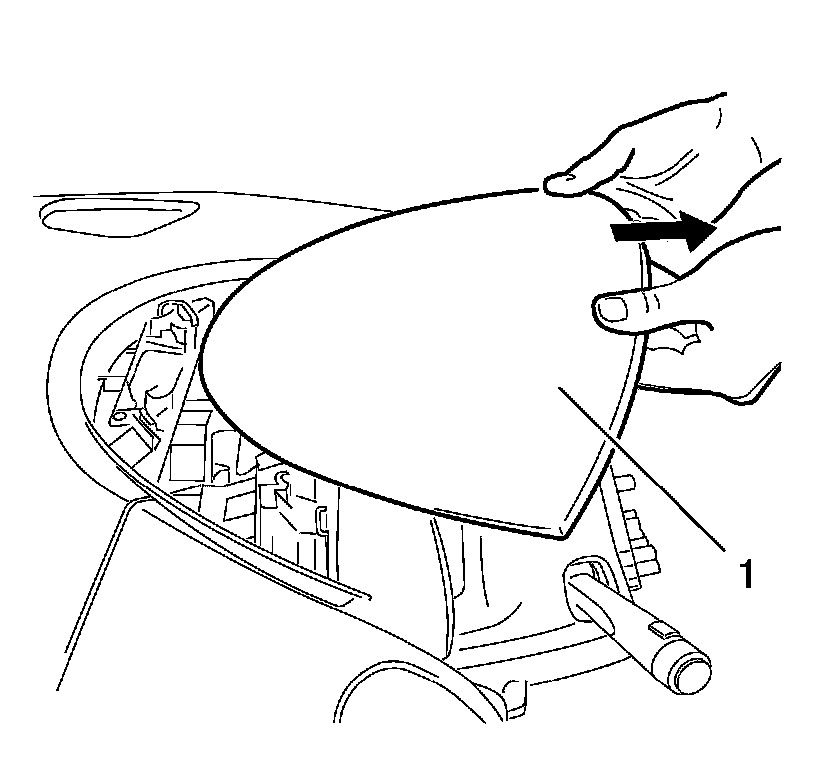

2. Pull the instrument panel instrument cluster hood (1) with both hands in the direction shown.

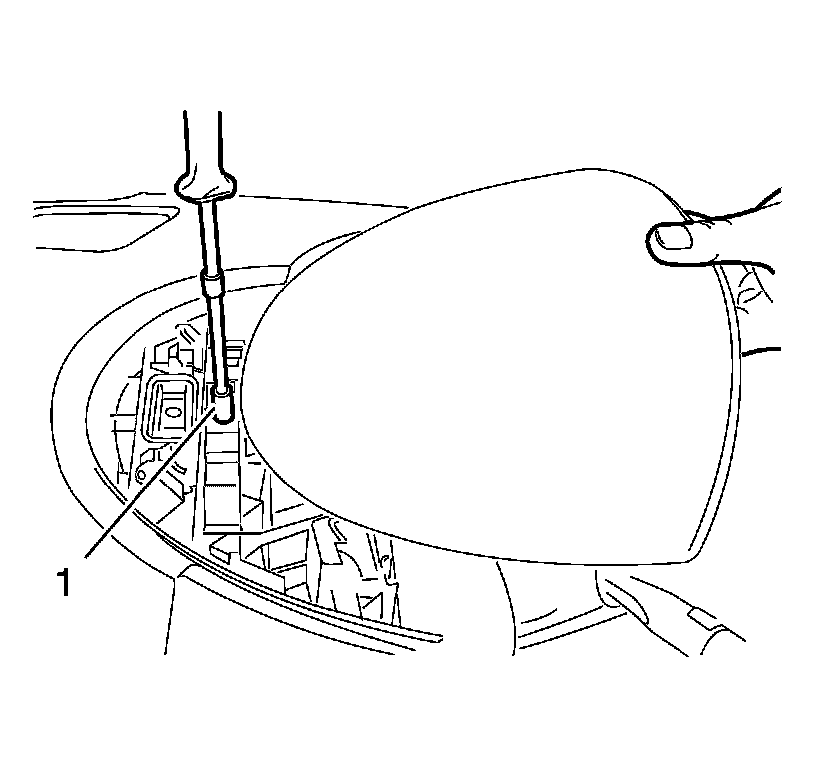

3. If equipped, remove the screw (1) of the cluster hood rebound strap.

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. If equipped, install the screw (1) of the cluster hood rebound strap.

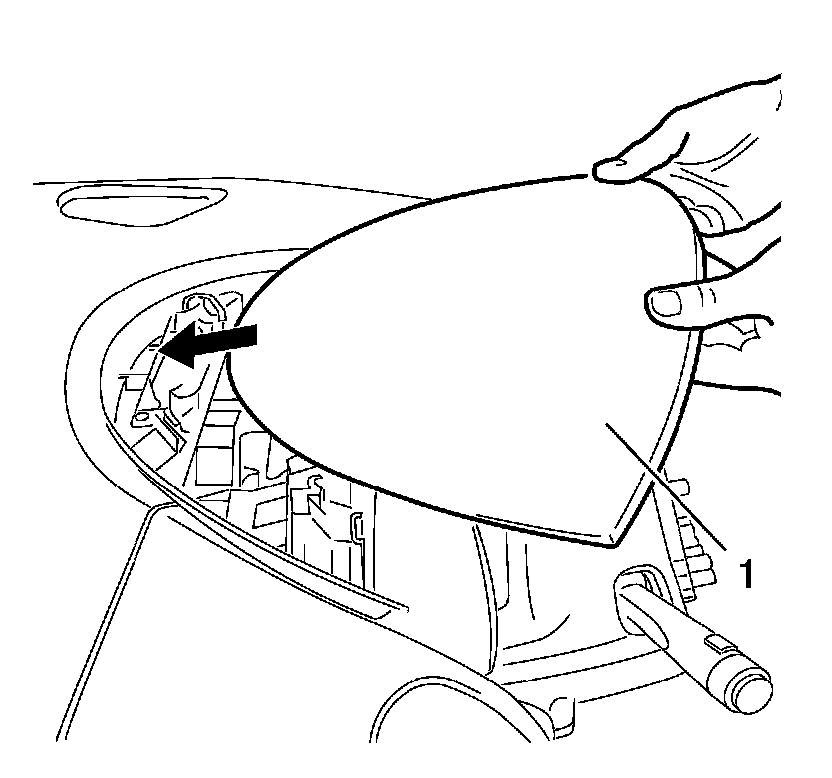

2. Install the instrument panel instrument cluster hood (1) in the direction shown.

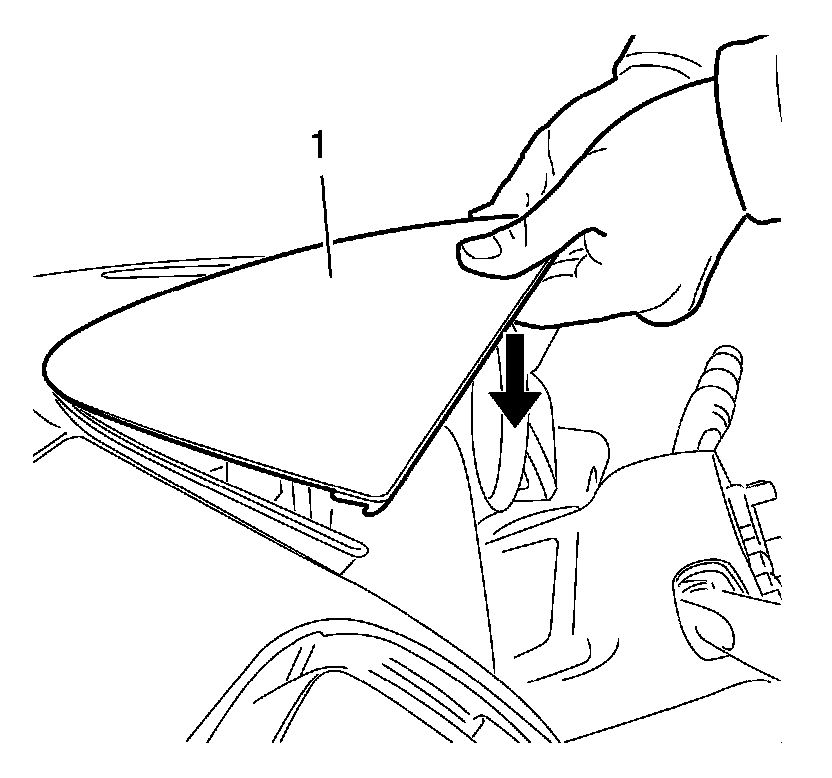

3. Install the instrument panel instrument cluster hood (1) in the direction shown.
