Front Bumper Fascia Replacement

Front Bumper Fascia Replacement

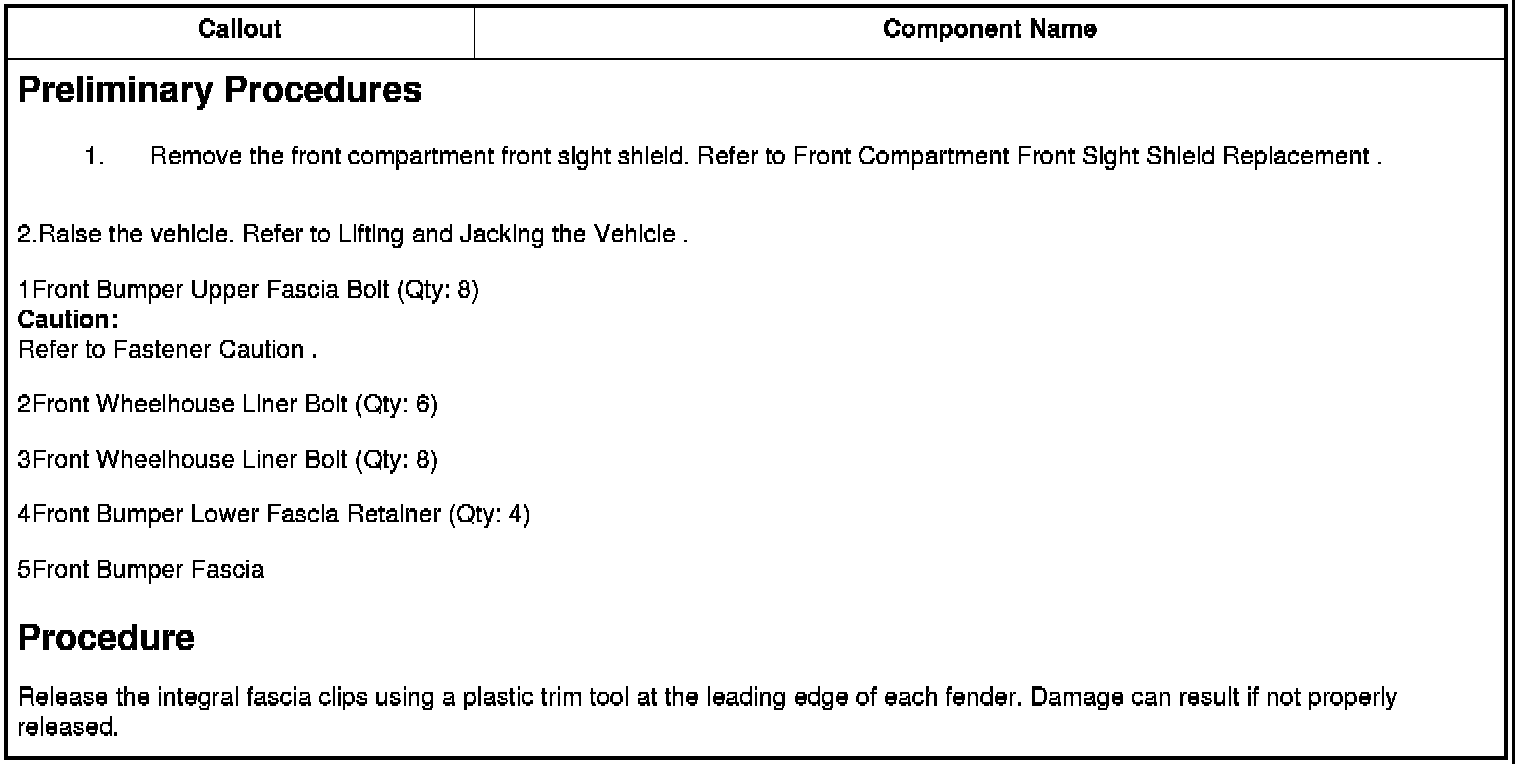

2.Raise the vehicle. Refer to Lifting and Jacking the Vehicle .

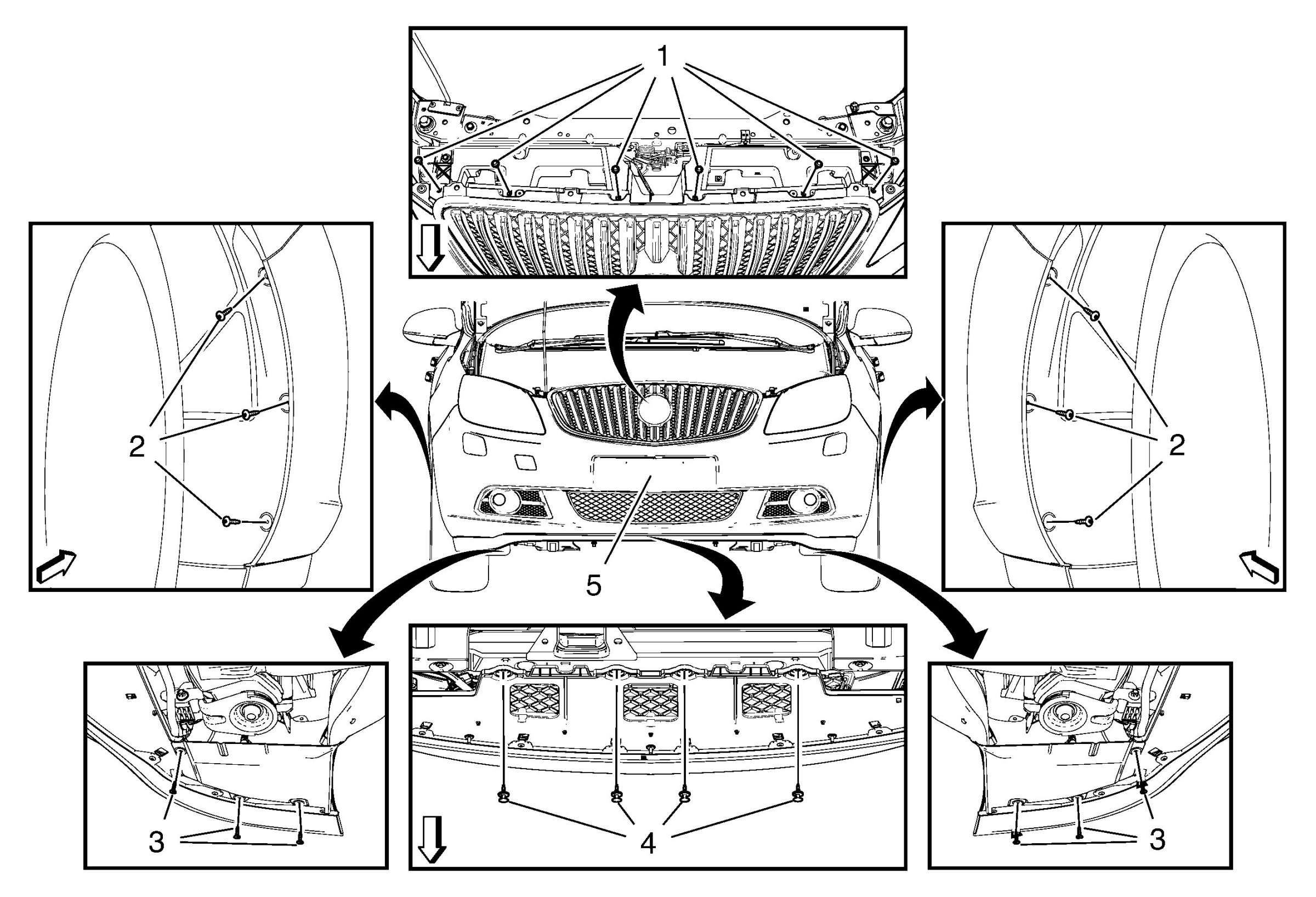

1Front Bumper Upper Fascia Bolt (Qty: 8)
Caution:Refer to Fastener Caution .

2Front Wheelhouse Liner Bolt (Qty: 6)

3Front Wheelhouse Liner Bolt (Qty: 8)

4Front Bumper Lower Fascia Retainer (Qty: 4)

5Front Bumper Fascia


Procedure


Release the integral fascia clips using a plastic trim tool at the leading edge of each fender. Damage can result if not properly released.
