Keyless Entry Antenna - Center Console Rear

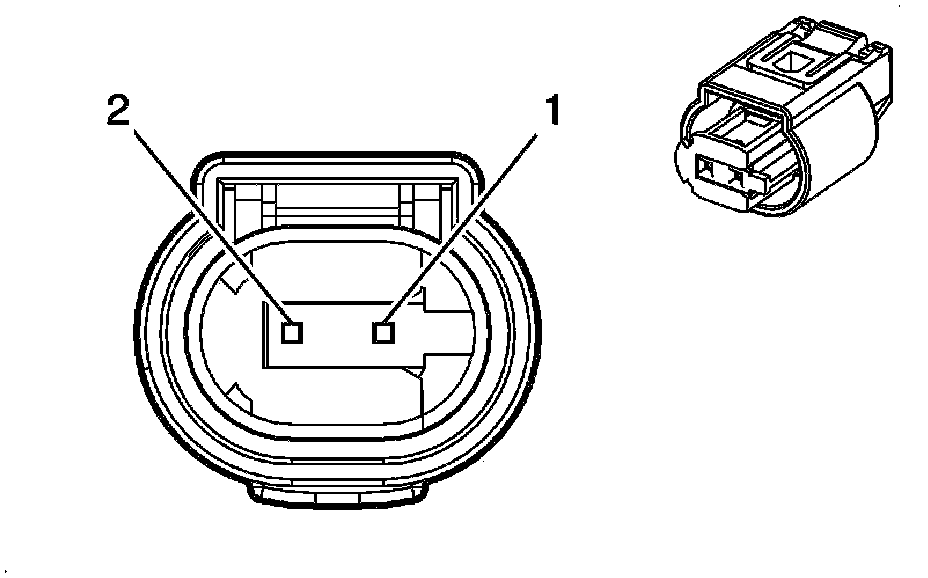

Component Connector End Views

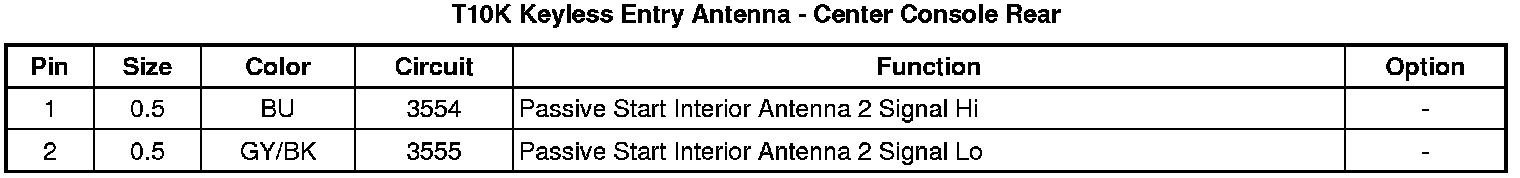

T10K Keyless Entry Antenna - Center Console Rear
