Home >> Buick >> 2013 >> Verano L4-2.0L Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Antenna - Keyless Entry >> Diagrams >> Keyless Entry Antenna - Center Console Front (ATH)

Keyless Entry Antenna - Center Console Front (ATH)

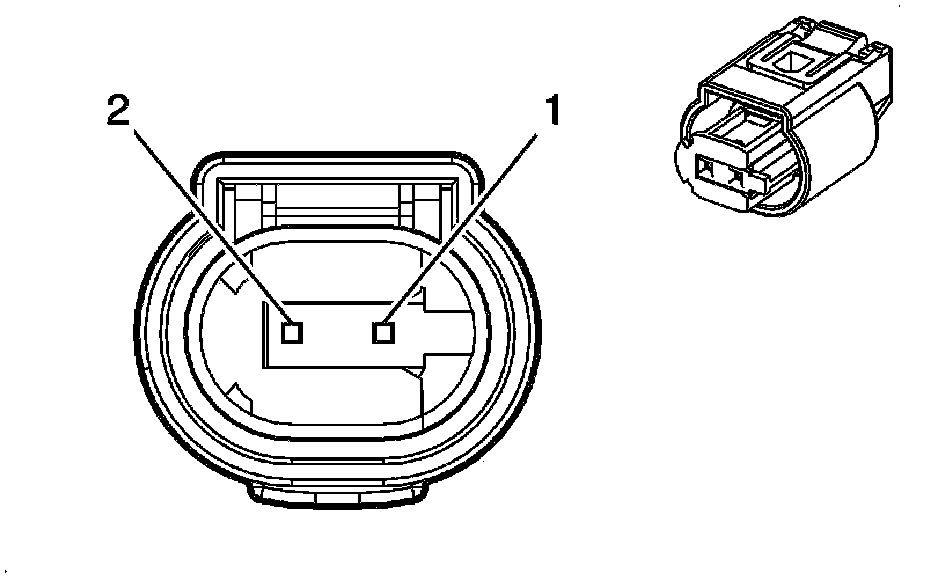

Component Connector End Views

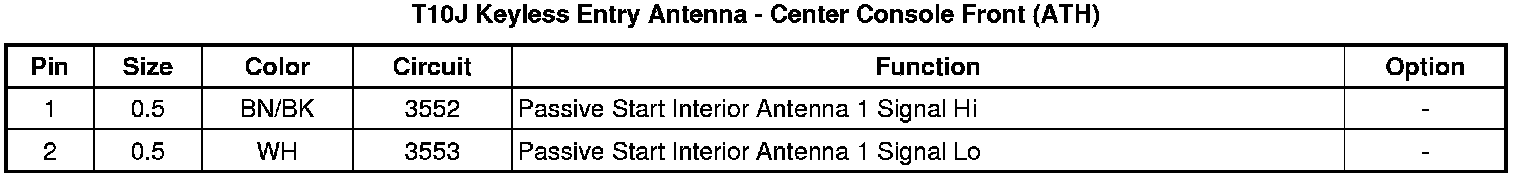

T10J Keyless Entry Antenna - Center Console Front (ATH)
