Antilock Brake System
DTC C0710
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.
DTC Descriptors
DTC C0710 00
- Steering Position Signal Malfunction
DTC C0710 42
- Steering Position Signal Calibration Not Programmed
DTC C0710 71
- Steering Position Signal Invalid Data
DTC C0710 5A
- Steering Position Signal Not Plausible

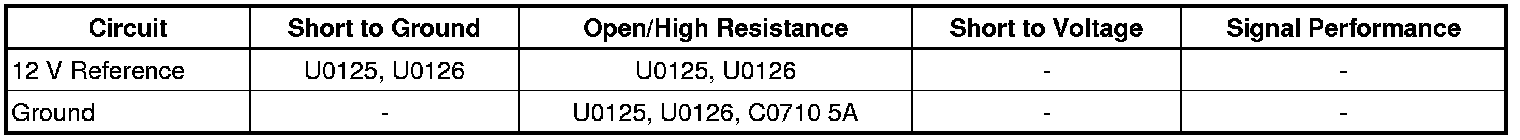

Diagnostic Fault Information
Circuit/System Description
The Steering Wheel Angle Sensor receives a 12 V reference voltage from the Electronic Brake Control Module. The Electronic Brake Control Module receives serial data inputs from the Steering Wheel Angle Sensor identifying the position and direction of the steering wheel rotation. The module utilizes this signal to calculate the driver intended driving direction.
Conditions for Running the DTC
Ignition ON.
Conditions for Setting the DTC
C0710 00
The steering angle signal is invalid.
C0710 42
The Steering Wheel Angle Sensor is not calibrated.
C0710 5A
* No steering angle signal
* The steering angle signal is not plausible with the Yaw Rate signal.
* The Steering Wheel Angle Sensor offset is out of the specified range.
Action Taken When the DTC Sets
* The Traction/stability Control indicator turns ON.
* The Electronic Brake Control Module disables the traction control, the stability control and the Hill Start Assist for the duration of the ignition cycle.
Conditions for Clearing the DTC
* The DTC clears the DTC when the diagnostic runs and passes.
* The history DTC will clear after 40 consecutive fault-free ignition cycles have occurred.
Diagnostic Aids
* Improperly mounted or loose Steering Wheel Angle Sensor.
* The car should not pull in either direction causing the steering wheel to be off center while driving in a straight line on a level surface.
* Confirm that all tires are of the proper size and that all are matching brands. Check and adjust all tires to the stated cold air pressure as identified on the tire placard. If a mis-sized or non-matching brand tire is present, inform the customer that in order for the vehicle stability enhanced system to function normally, tires need to be a uniform size and rolling diameter.
Reference Information
Schematic Reference
Antilock Brake System Schematics [1][2]Antilock Brakes / Traction Control Systems
Connector End View Reference
Component Connector End Views Outside Rearview Mirror - Driver
Description and Operation
ABS Description and Operation Description and Operation
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Ignition ON.
2. Verify the scan tool Steering Column Position parameter corresponds to the actual steering position as the steering wheel is turned through its entire range of motion between -500° and +500°.
• If the parameter does not correspond with the steering wheel position or the reading is erratic
Refer to Circuit/System Testing.
• If the parameter reading corresponds with the steering wheel position
3. All OK.
Circuit/System Testing
1. Ignition ON.
2. Verify that DTC U0125 or U0126 is not set.
• If DTC U0125 or U0126 is set
Refer to Diagnostic Trouble Code (DTC) List - Vehicle Diagnostic Trouble Code (DTC) List - Vehicle.
• If DTC U0125 or U0126 is not set
3. Verify that DTC C0710 42 or C0710 5A is not set.
• If DTC C0710 42 or C0710 5A is set
Perform the Steering Angle Sensor Centering Procedures.
• If DTC C0710 42 or C0710 5A is not set
4. Verify the B99 Steering Wheel Angle Sensor is installed correctly.
• If loose or incorrect installation
Correct the installation or replace the component.
• If correct installation
5. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the B99 Steering Wheel Angle Sensor. It may take up to 2 minutes for all vehicle systems to power down.
6. Test for less than 10 ohms between the ground circuit terminal 6 and ground.
• If 10 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 10 ohms
7. Ignition ON.
8. Verify a test lamp illuminates between the 12 V reference circuit terminal 5 and ground.
• If the test lamp does not illuminate
1. Ignition OFF, disconnect the harness connector at the K17 Electronic Brake Control Module.
2. Test for infinite resistance between the 12 V reference circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the 12 V reference circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K17 Electronic Brake Control Module.
• If the test lamp illuminates
9. Replace the B99 Steering Wheel Angle Sensor.
10. Ignition ON.
11. Verify that DTC C0710 42 or C0710 5A is not set.
• If either of the DTCs are set
Replace the K17 Electronic Brake Control Module.
• If none of the DTCs are set
12. All OK.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Steering Angle Sensor Replacement Removal and Replacement
* Control Module References Control Module References for Electronic Brake Control Module replacement, programming and setup
