C0298

DTC C0298

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provide an overview of each diagnostic category.

DTC Descriptors

DTC C0298 00
- Park Brake Unlatch Switch Circuit Malfunction

DTC C0298 01
- Park Brake Unlatch Switch Circuit Short to Battery

DTC C0298 02
- Park Brake Unlatch Switch Circuit Short to Ground

DTC C0298 04
- Park Brake Unlatch Switch Circuit Open

DTC C0298 08
- Park Brake Unlatch Switch Circuit Performance - Signal Invalid

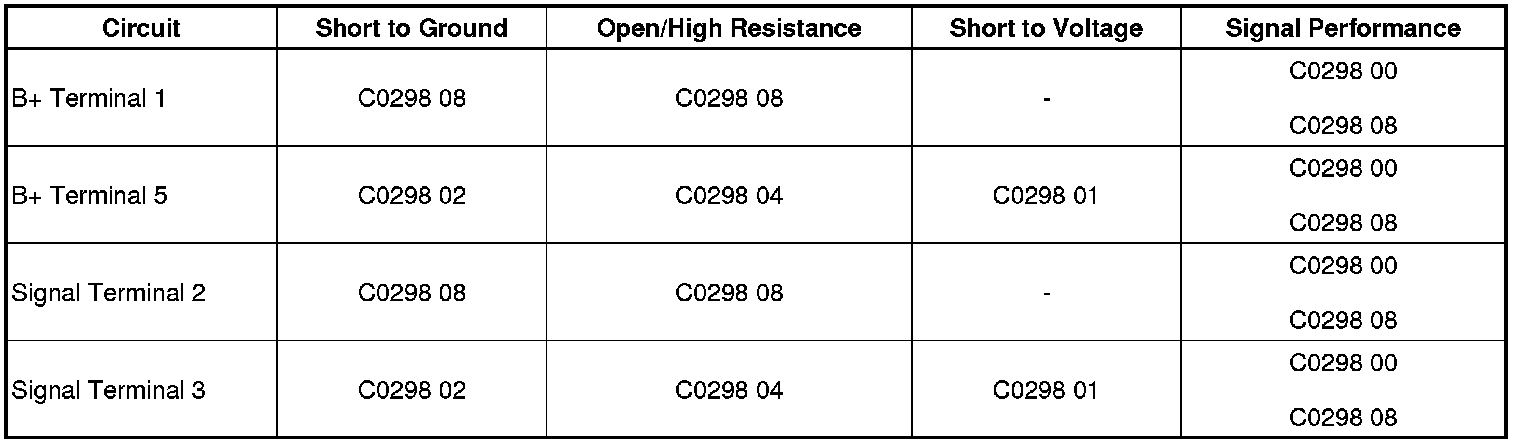

Diagnostic Fault Information






Circuit/System Description

The parking brake control module has an internal motor, apply actuator, release actuator, and temperature sensor. The parking brake control module also contains the logic for applying and releasing the parking brake when commanded by the park brake control switch. When the parking brake control module receives a signal from the switch, the internal circuit board temperature is checked to verify it is within operating range before the control module performs the requested operation.

Conditions for Running the DTC

Ignition OFF, ACCESSORY, or RUN mode.

Conditions for Setting the DTC

The parking brake control module detects a short to battery, short to ground, open circuit, or an internal parking brake switch malfunction. The parking brake control module detects the apply or release button was activated for more than 90 seconds.

Action Taken When the DTC Sets

A message and/or a warning indicator may be displayed.

Conditions for Clearing the DTC

* The parking brake control module will clear the DTC after 40 consecutive ignition on/off cycles with at least one test pass in each ignition cycle and no test fail result.

* The condition for the DTC is no longer present.

* The park brake control switch button is INACTIVE using the scan tool without the switch being activated.

Diagnostic Aids

Check if the park brake control switch is stuck in the apply or release position which may cause the DTC to set.

Reference Information

Schematic Reference

Park Brake System Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views Outside Rearview Mirror - Driver

Description and Operation

Electronic Parking Brake Control Module Description Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

1. Ignition ON.

2. Verify that DTC C0293 is not set.

• If DTC C0293 is set
Refer to DTC C0293 C0293.

• If DTC C0293 is not set

3. Verify the scan tool Park Brake Status parameter changes between Released and Apply when pressing and releasing the S91 park brake control switch.

• If the parameter does not change
Replace the S91 park brake control switch.

• If the parameter changes

4. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

Parking Brake Actuator Switch Replacement Service and Repair
