C0267

DTC C0267

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC C1100 00
- Brake Presure Sensor 2

DTC C1100 5A
- Brake Presure Sensor 2 Not Plausible

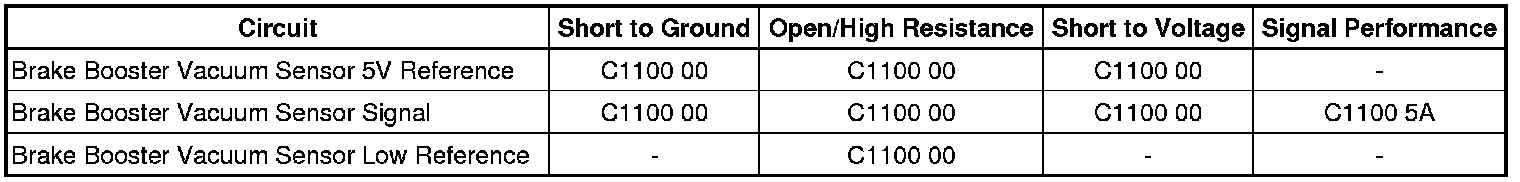

Diagnostic Fault Information






Circuit/System Description

The brake booster vacuum sensor measures the vacuum in the brake booster assembly. The electronic brake control module (EBCM) supplies a 5 V reference and a low reference circuit to the brake booster vacuum sensor. The vacuum sensor supplies a voltage signal in relation to the pressure in the brake booster to the EBCM.

Conditions for Running the DTC

Ignition ON.

Conditions for Setting the DTC

C1100 00

* The vacuum sensor power supply voltage is out of range.

* The EBCM detects a fault in the brake vacuum senor or circuits.

C1100 5A

The vacuum sensor signal is out of specified range.

Action Taken When the DTC Sets

The brake warning indicator turns ON.

Conditions for Clearing the DTC

* A current DTC clears when the diagnostic runs and passes.

* The EBCM will turn OFF the indicator in the next ignition cycle.

Reference Information

Schematic Reference

Hydraulic Brake Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views Outside Rearview Mirror - Driver

Description and Operation

Brake Booster Vacuum Assist Description and Operation Brake Booster Vacuum Assist

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the brake booster vacuum sensor.

2. Test for less than 10 ohms between the low reference circuit terminal 2 and ground.

• If greater than the specified range, test the low reference circuit for an open/high resistance. If the circuit tests normal, replace the EBCM.

3. Ignition ON, test for 4.8-5.2 V between the 5 V reference circuit terminal 3 and ground.

• If less than the specified range, test the 5 V reference circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the EBCM.

• If greater than the specified range, test the 5 V reference circuit for a short to voltage. If the circuit tests normal, replace the EBCM.

4. Test for 4.5-5.2 V between the 5 V reference circuit terminal 3 and the signal circuit terminal 1.

• If less than the specified range, test the signal circuit for an open/high resistance. If the circuit tests normal, replace the EBCM.

• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the EBCM.

5. Ignition OFF, disconnect the X1 harness connector at the EBCM.

6. Test for infinite resistance between the signal circuit terminal 10 and ground.

• If not the specified value, test the signal circuit for a short to ground.

7. If all circuits test normal, test or replace the power brake booster vacuum sensor.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Relay Replacement (Within an Electrical Center) Relay Replacement (Within an Electrical Center)Relay Replacement (Attached to Wire Harness) Relay Replacement (Attached to Wire Harness)

* Control Module References Control Module References for EBCM replacement, programming and setup
