B3884

DTC B3884

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B3884 01
- Center High Mounted Brake Lamp Circuit Short to Battery

DTC B3884 02
- Center High Mounted Brake Lamp Circuit Short to Ground

DTC B3884 04
- Center High Mounted Brake Lamp Circuit Open

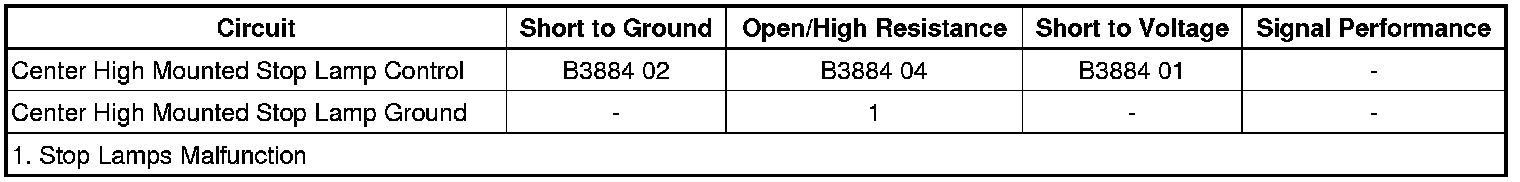

Diagnostic Fault Information






Circuit/System Description

The brake pedal position (BPP) sensor is used to sense the action of the driver application of the brake pedal. The BPP sensor provides an analog voltage signal that will increase as the brake pedal is applied. The body control module (BCM) provides a low reference signal and a 5-volt reference voltage to the BPP sensor. When the variable signal reaches a voltage threshold indicating the brakes have been applied, the BCM will apply battery voltage to the left and right stop lamp control circuits as well as the center high mounted stop lamp (CHMSL) control circuit illuminating the left and right stop lamps and the CHMSL.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.

* Brakes APPLIED.

Conditions for Setting the DTC

DTC B3884 01

The BCM detects a short to voltage in the CHMSL control circuit.

DTC B3884 02

The BCM detects a short to ground in the CHMSL control circuit.

DTC B3884 04

The BCM detects an open/high resistance in the CHMSL control circuit.

Actions Taken When the DTC Sets

DTC B3884 01

CHMSL always ON.

DTC B3884 02 and B3884 04

CHMSL inoperative.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Exterior Lights Schematics Exterior Lights Schematics

Connector End View Reference

Component Connector End Views Outside Rearview Mirror - Driver

Description and Operation

Exterior Lights Schematics Exterior Lights Schematics

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, exterior lamps OFF, disconnect the harness connector at the E6 center high mounted stop lamp.

2. Test for less than 5 ohms between the ground circuit terminal 2 and ground.

• If 5 ohms or greater

1. Ignition OFF.

2. Test for less than 2 ohms in the ground circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, repair the open/high resistance in the ground connection.

• If less than 5 ohms

3. Connect a test lamp between the control circuit terminal 1 and ground, ignition ON.

4. Verify the test lamp turns ON and OFF when commanding the Center Brake Lamp ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X4 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON

1. Ignition OFF, disconnect the X4 harness connector at the K9 body control module, ignition ON.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 body control module.

• If the test lamp turns ON and OFF

5. Test or replace the E6 center high mounted stop lamp.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* High Mount Stop Lamp Replacement High Mount Stop Lamp Replacement

* Control Module References Control Module References for BCM replacement, programming, and setup
