B2580

DTC B2580

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B2580 01
- High Beam Control Circuit Short to Battery

DTC B2580 04
- High Beam Control Circuit Open

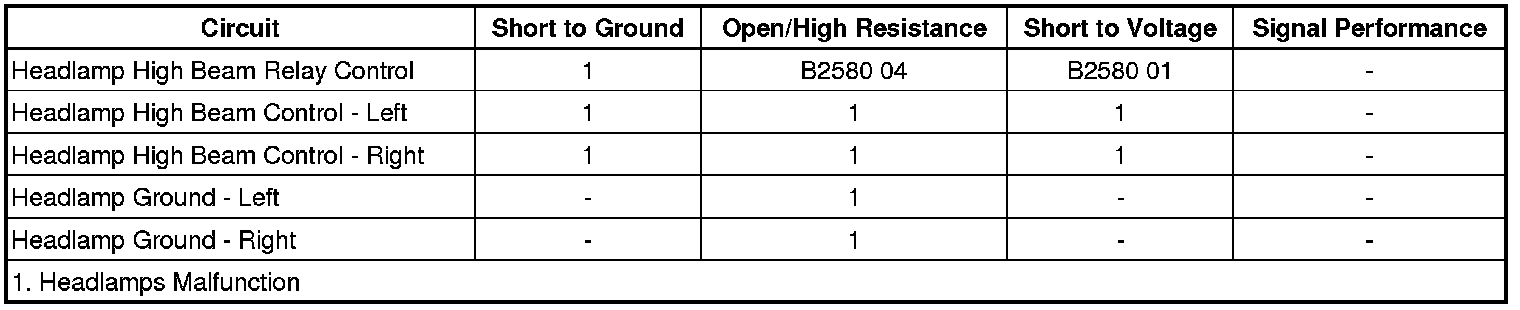

Diagnostic Fault Information






Circuit/System Description

The headlamp high beam relay is supplied with battery voltage at all times. When the low beam headlamps are on and the turn signal/multifunction switch is placed in the high beam position, ground is applied to the body control module (BCM) through the high beam signal circuit. The BCM responds to the high beam request by applying ground to the high beam relay control circuit which energizes the headlamp high beam relay. With the high beam relay energized, the switch contacts close allowing battery voltage to flow through the high beam fuses to the high beam control circuits illuminating the high beam headlamps.

Conditions for Running the DTC

* Battery voltage must be between 9-16 V.

* High beam headlamps ON.

Conditions for Setting the DTC

DTC B2580 01

The BCM detects a short to voltage in the headlamp high beam relay control circuit.

DTC B2580 04

The BCM detects an open/high resistance in the headlamp high beam control circuit.

Actions Taken When the DTC Sets

* For an open/high resistance fault, the high beam headlamps and flash to pass function are inoperative. The high beam indicator on the instrument cluster operates normally.

* For a short to voltage fault, the high beam headlamps and flash to pass function are inoperative.

Conditions for Clearing the DTC

* The condition responsible for setting the DTC no longer exists.

* A history DTC will clear once 100 consecutive malfunction-free ignition cycles have occurred.

Reference Information

Schematic Reference

Headlights/Daytime Running Lights (DRL) Schematics Headlights/Daytime Running Lights (DRL) Schematics

Connector End View Reference

Component Connector End Views Outside Rearview Mirror - Driver

Description and Operation

Exterior Lighting Systems Description and Operation Exterior Lighting Systems

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the X2 harness connector at the X50A fuse block - underhood.

2. Connect a test lamp between the control circuit terminal 18 and B+, ignition ON.

3. Verify the test lamp turns ON and OFF when commanding the High Beams ON and OFF with a scan tool.

• If the test lamp is always OFF

1. Ignition OFF, disconnect the X5 harness connector at the K9 body control module, ignition ON.

2. Test for less than 1 V between the control circuit terminal and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V

3. Ignition OFF.

4. Test for less than 2 ohms in the control circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 body control module.

• If the test lamp is always ON

1. Ignition OFF, disconnect the X5 harness connector at the K9 body control module.

2. Test for infinite resistance between the control circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance, replace the K9 body control module.

• If the test lamp turns ON and OFF

4. Test or replace the X50A fuse block - underhood.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Fuse Block Replacement Fuse Block Replacement

* Control Module References Control Module References for BCM, replacement, programming, and setup
