B1516

DTC B1516

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC B1516 08
- Battery Current Sensor Signal Invalid

DTC B1516 66
- Battery Current Sensor Wrong Mounting Position

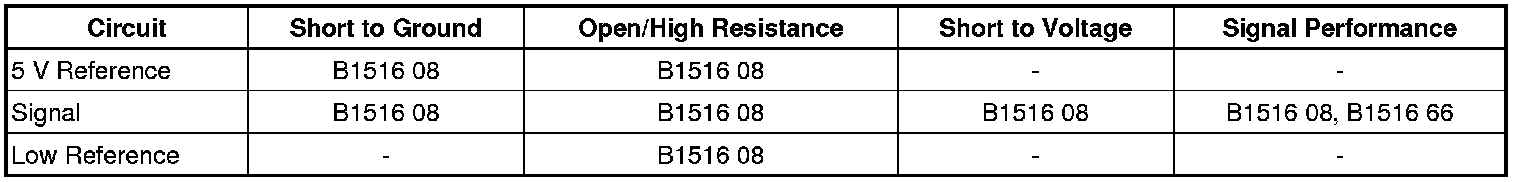

Diagnostic Fault Information






Circuit/System Description

The B18 Battery Current Sensor is a 3-wire hall effect current sensor. The Body Control Module (BCM) supplies 5 V and ground to the B18 Battery Current Sensor. The B18 Battery Current Sensor measures the amount of current flowing to or from the battery, and supplies a pulse width modulation (PWM) signal to the BCM.

Conditions for Running the DTC

B1516 08

The BCM is awake.

B1516 66

* The BCM is awake.

* The engine is OFF.

Conditions for Setting the DTC

B1516 08

The battery current signal is less than 4 percent or greater than 96 percent duty cycle for 2 minutes.

B1516 66

The battery current polarity is positive for 2 minutes.

Action Taken When the DTC Sets

The regulated voltage control is disabled.

Conditions for Clearing the DTC

The DTC passes when the battery current returns to the normal range for 15 seconds.

Diagnostic Aids

DTC B1516 08 could be set by overcharging with a battery charger or jump starting.

Reference Information

Schematic Reference

Starting and Charging Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views Outside Rearview Mirror - Driver

Description and Operation

Charging System Description and Operation Description and Operation

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

B1516 08

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the B18 Battery Current Sensor. It may take up to 2 minutes for all vehicle systems to power down.

2. Test for less than 30 ohms between the low reference circuit terminal B and ground.

• If 30 ohms or greater

1. Ignition OFF, disconnect the X5 harness connector at the K9 Body Control Module.

2. Test for less than 2 ohms in the low reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 Body Control Module.

• If less than 30 ohms

3. Ignition ON.

4. Test for 4.8-5.2 V between the 5 V reference circuit terminal A and ground.

• If less than 4.8 V

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.

2. Test for infinite resistance between the 5 V reference circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the 5V reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 Body Control Module.

• If greater than 5.2 V

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.

2. Test for less than 1 V between the 5 V reference circuit and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 Body Control Module.

• If between 4.8-5.2 V

5. Test for 4.8-5.2 V between the signal circuit terminal C and ground.

• If less than 4.8 V

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module.

2. Test for infinite resistance between the signal circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K9 Body Control Module.

• If greater than 5.2 V

1. Ignition OFF, disconnect the X4 harness connector at the K9 Body Control Module, ignition ON.

2. Test for less than 1 V between the signal circuit and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K9 Body Control Module.

• If between 4.8-5.2 V

6. Test or replace the B18 Battery Current Sensor.

B1516 66

1. Verify that the B18 Battery Current Sensor is installed securely around the negative battery cable, with the tape tab pointing away from the negative terminal on the C1 battery.

• If the B18 Battery Current Sensor is not installed correctly
Remove and reinstall the B18 Battery Current Sensor properly.

• If the B18 Battery Current Sensor is installed correctly

2. Replace the B18 Battery Current Sensor.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

* Battery Current Sensor Replacement Service and Repair

* Control Module References Control Module References for BCM replacement, programming, and setup.
