Electrical Diagrams





Moveable Window Schematics

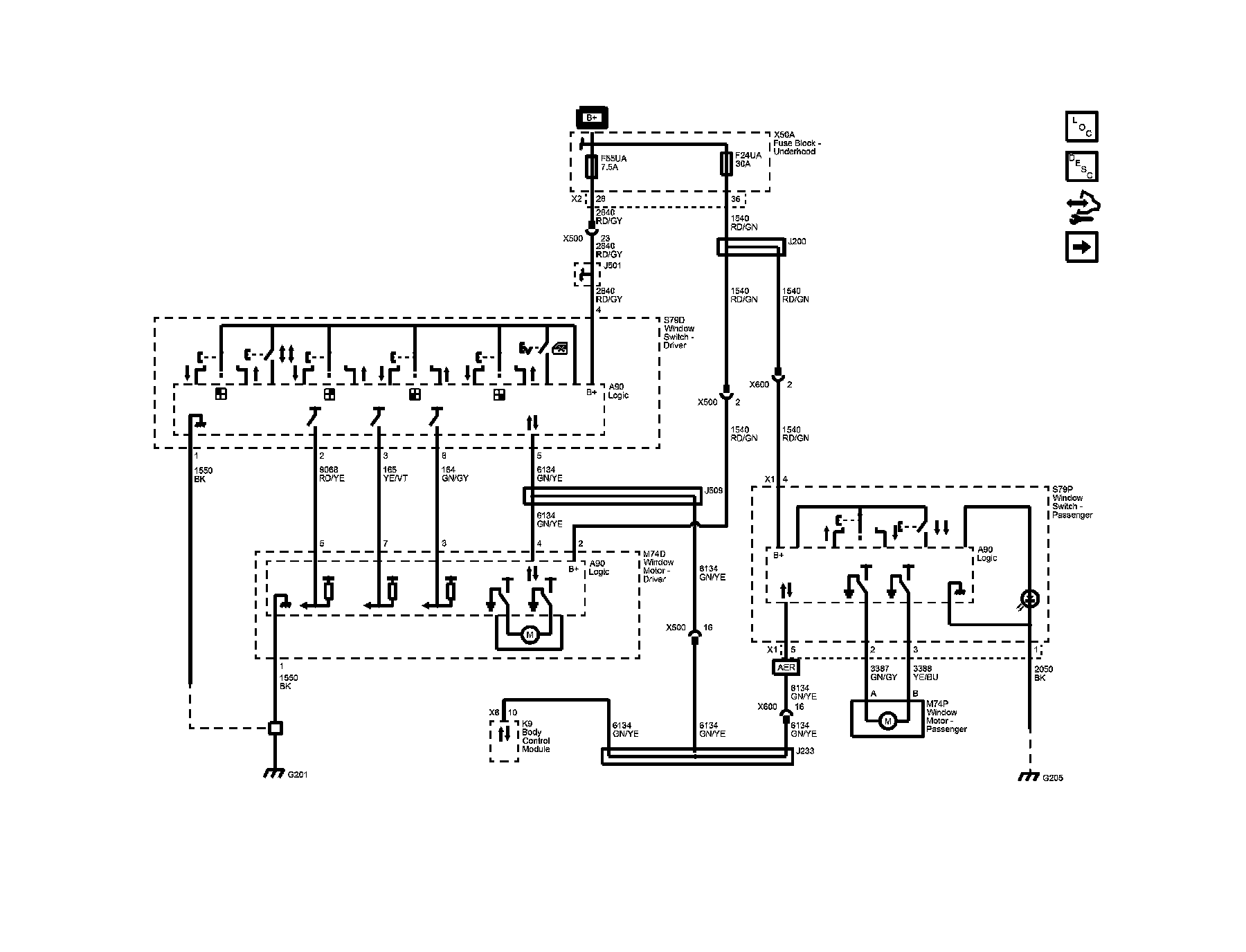

Driver Door (-CZ2)

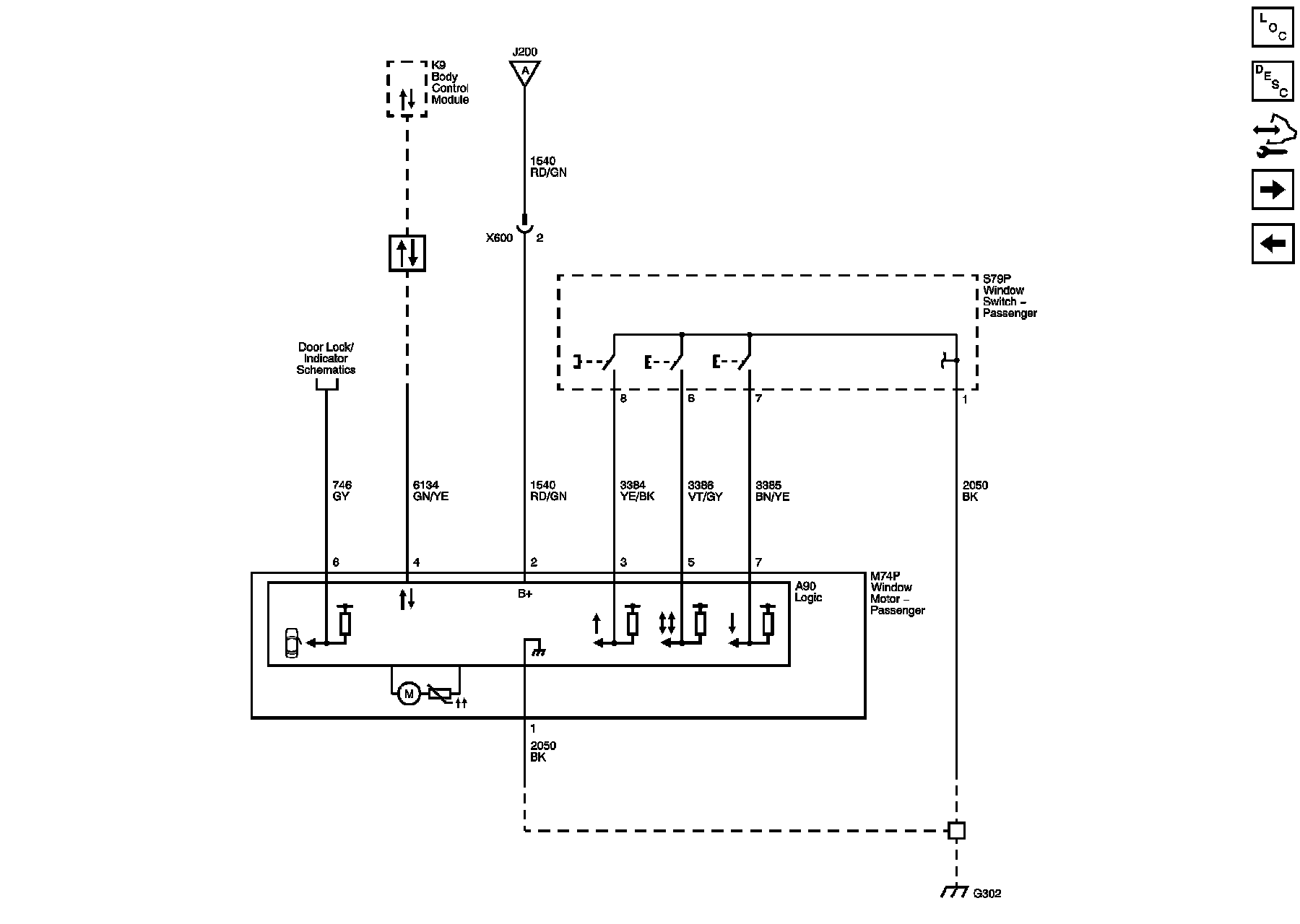

Passenger Door (-CZ2)

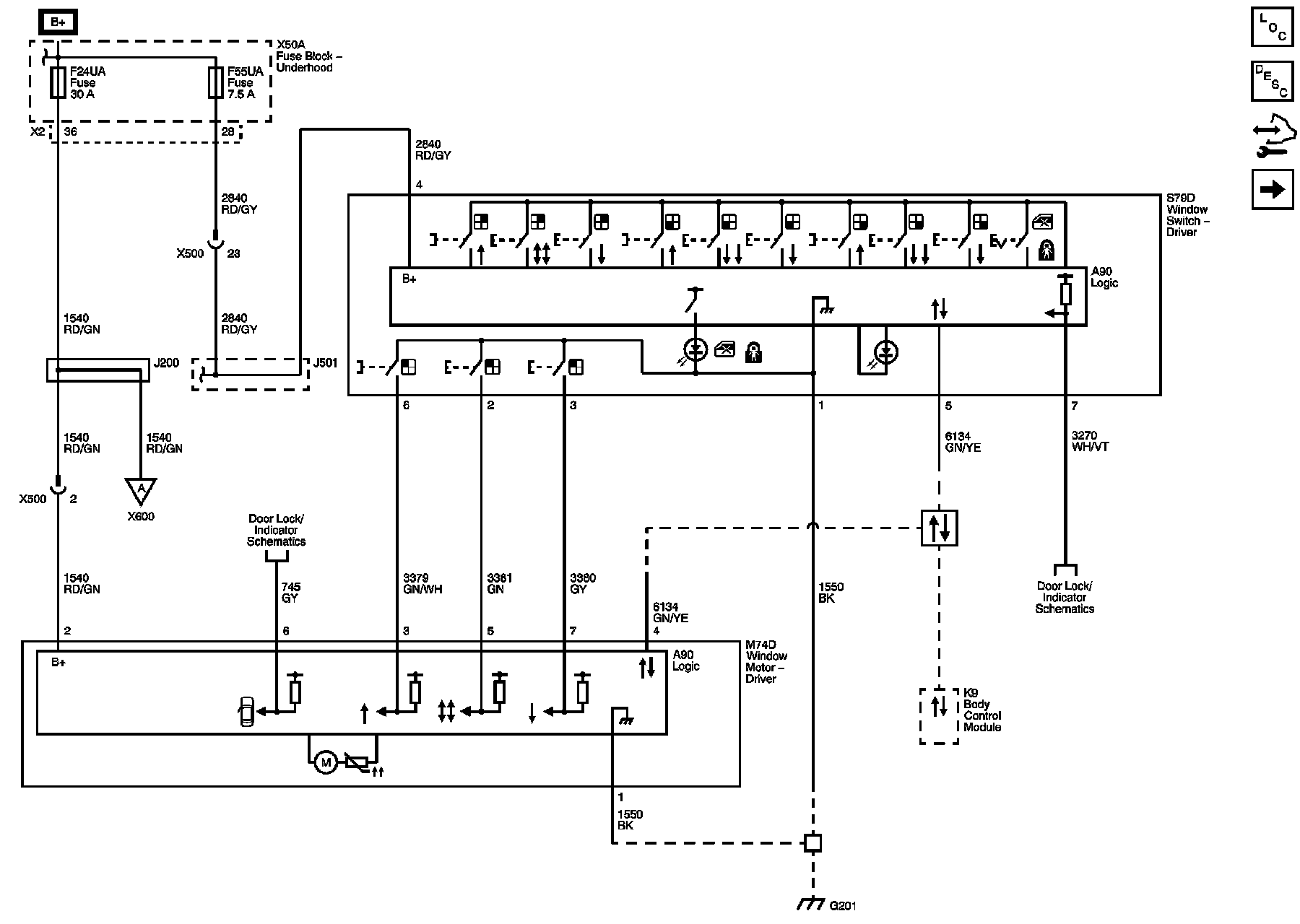

Front Doors (CZ2)

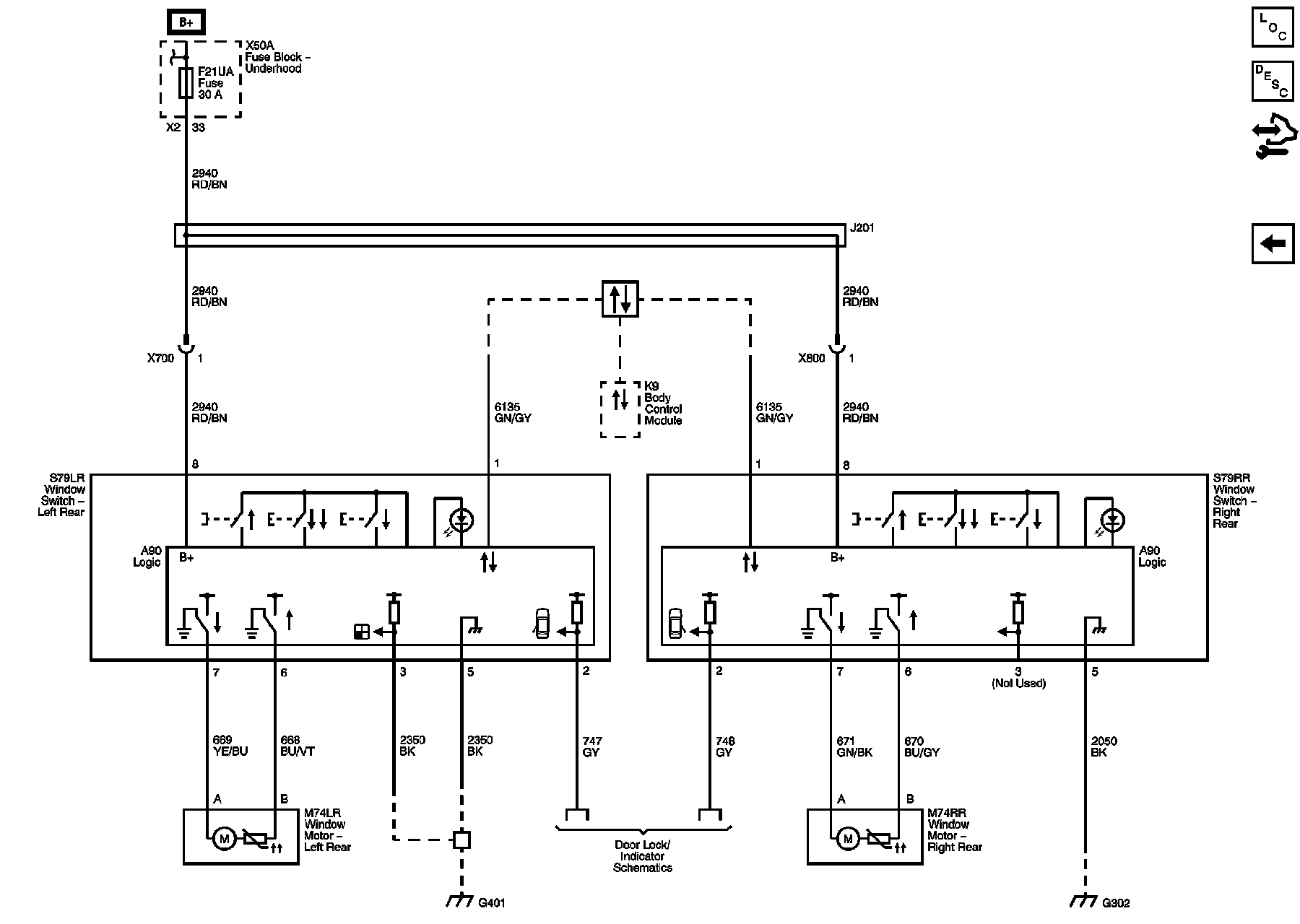

Rear Doors
