Rear Toe Adjustment

Rear Toe Adjustment




1. Measure the alignment on an alignment rack. Refer to Wheel Alignment Measurement Wheel Alignment Measurement.

Note: Do not tighten the new fasteners yet in order to allow for movement.

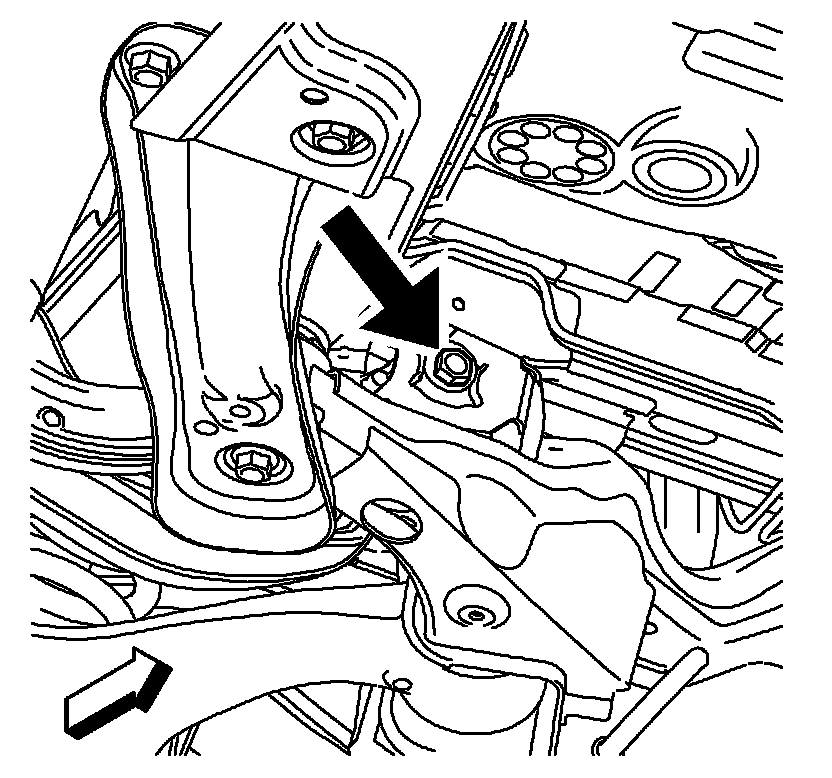

2. Rotate the cam nut in order to adjust the toe angle. Refer to Wheel Alignment Specifications Specifications.

3. Hand tighten the cam bolt, but do not tighten the bolt to the specification yet.

4. Re-inspect the rear toe angle and adjust as necessary.

Caution: Refer to Fastener Caution Fastener Caution.

5. Hold the cam bolt and tighten the cam nut.

150 Nm (111 lb ft)

6. Repeat the procedure for the other rear wheel.

7. Lower the vehicle.
