Instrument Panel Fuse Block






The instrument panel fuse block is located in the instrument panel, on the driver side of the vehicle.

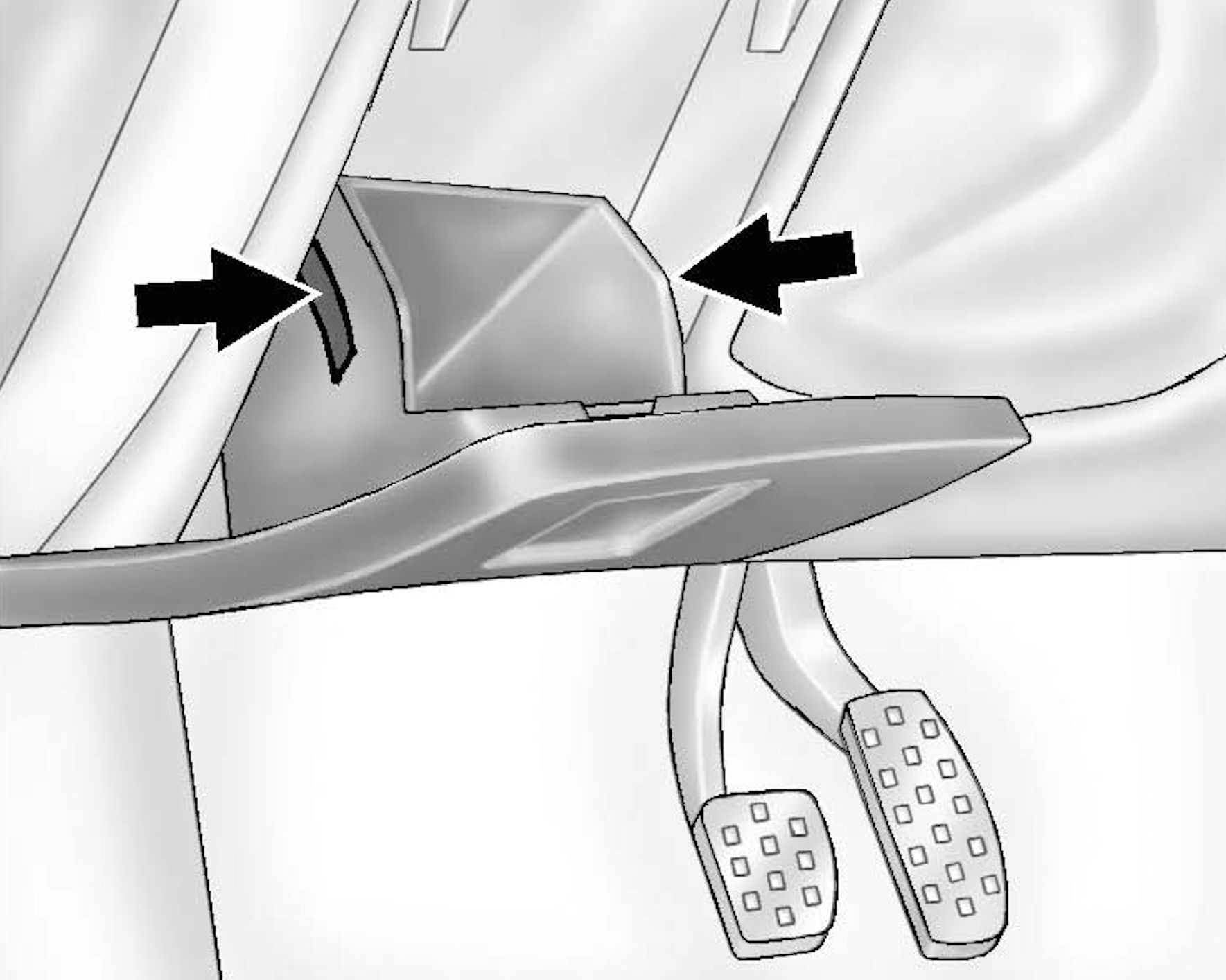

To access the fuses, open the storage compartment. Press in on the sides of the compartment to release it from the instrument panel. Pull the door toward you to release it from the hinge.






Instrument Panel Fuse Block

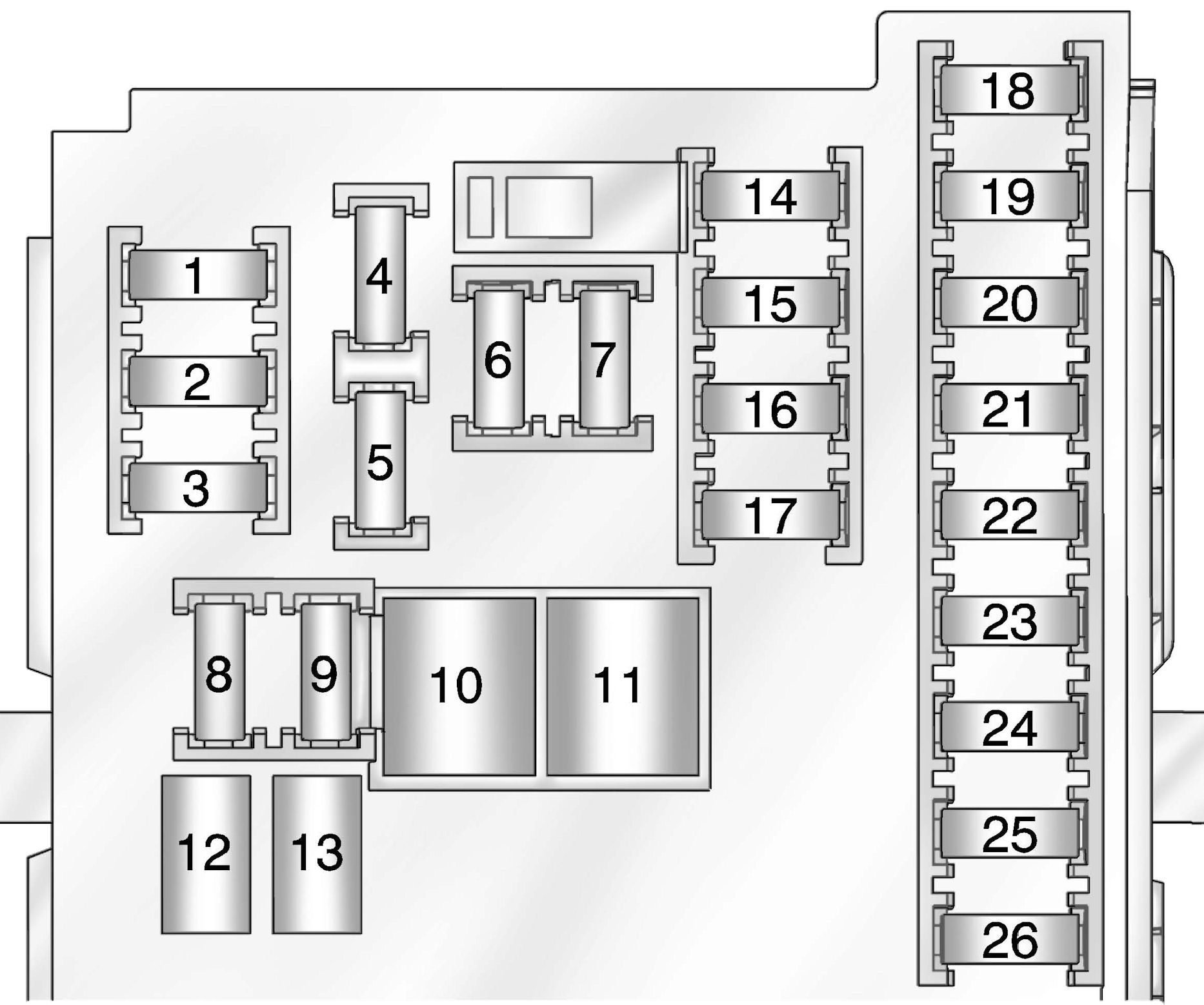

Number Usage
Fuse 1 Suspension Control Module
Fuse 2 Body Control Module 1
Fuse 3 Body Control Module 5
Fuse 4 Radio
Fuse 5 Radio Displays, Park Assist, Infotainment, Module Tunnel Control
Fuse 6 Instrument Panel Power Outlet
Fuse 7 Console Power Outlet
Fuse 8 Body Control Module 3
Fuse 9 Body Control Module 4
Fuse 10 Body Control Module 8
Fuse 11 Front Heater Ventilation Air Conditioning/Blower
Fuse 12 Right-Hand Power Front Seat
Fuse 13 Left-Hand Power Front Seat
Fuse 14 Diagnostic Link Connector
Fuse 15 Airbag
Fuse 16 Spare
Fuse 17 Heating Ventilation Air Conditioning Controller
Fuse 18 Service Fuse, Logistic Relay
Fuse 19 Spare
Fuse 20 Automatic Occupant Sensing
Fuse 21 Instrument Cluster
Fuse 22 Discrete Logic Ignition Switch/PEPS
Fuse 23 Body Control Module 6
Fuse 24 Body Control Module 2
Fuse 25 On Star
Fuse 26 Spare
