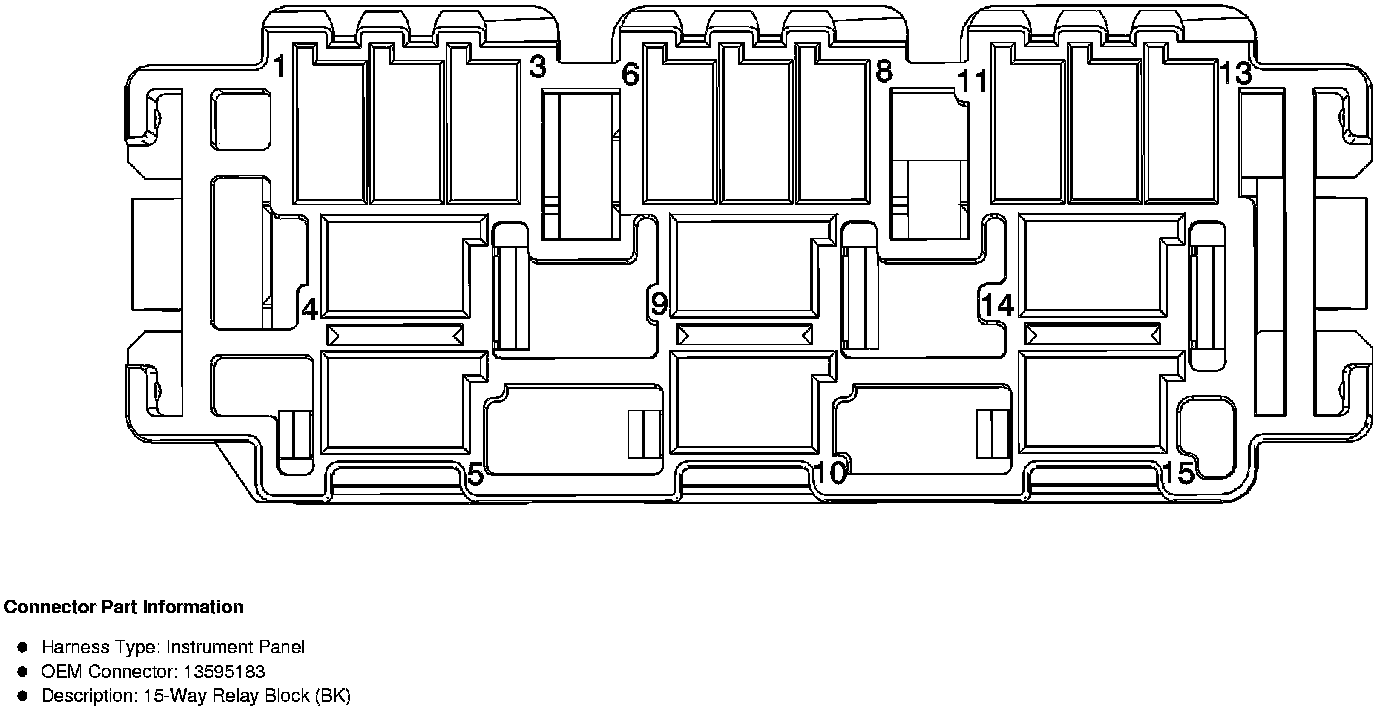

X51A Fuse Block - Instrument Panel Bottom View Relays (except CZ2)





Electrical Center Identification Views

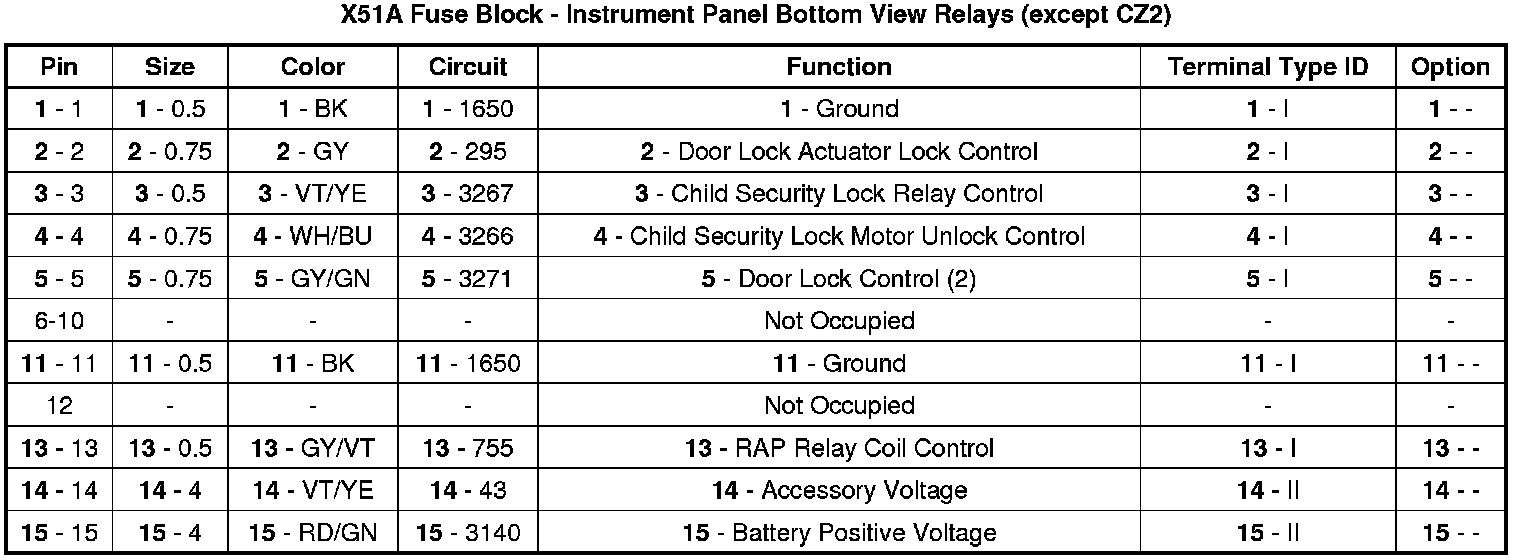

X51A Fuse Block - Instrument Panel Bottom View Relays (except CZ2)
