Cigarette Lighter Receptacle - Front CZ2

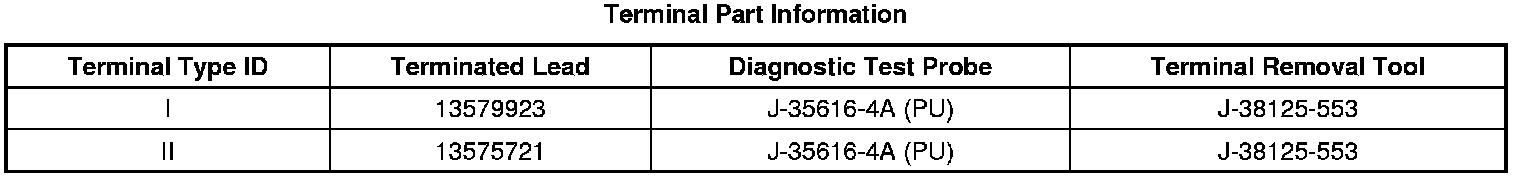

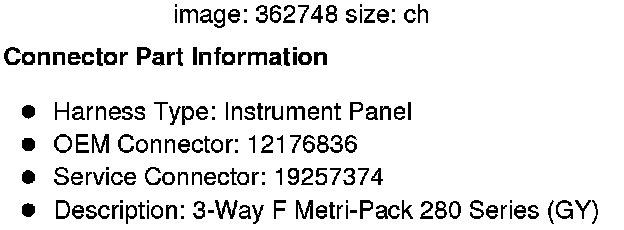

Component Connector End Views

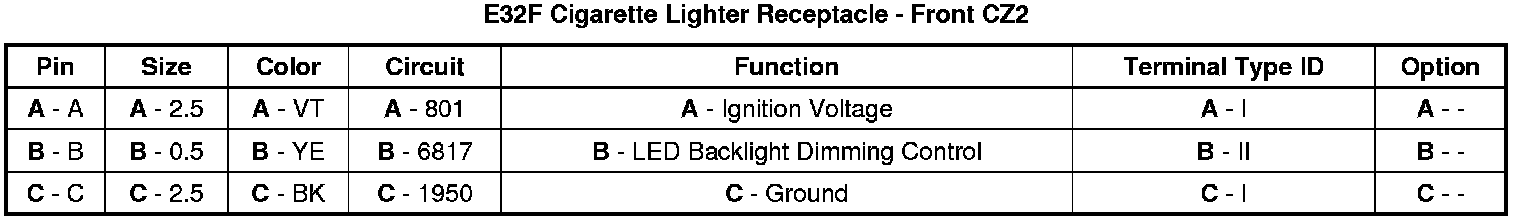

E32F Cigarette Lighter Receptacle - Front CZ2
